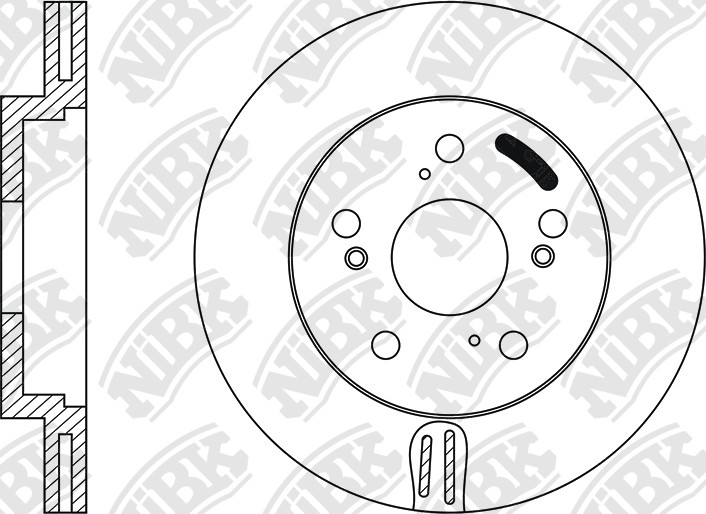

ROTOR DISC » RN1218V

Specification

Type
Vented
Disc Thickness (Max)
23
Num. of holes
5
Height
47
Centering Diameter
64
Pitch Circle Ø
114.3
Front/Rear
Front
Outter Ø
282
Drum Ø:
141
Disc Thickness (Min)
21
Structure Material
G3000

Cross Reference

BENDIX
562457B
HONDA
45251-S7A-E10
HONDA
45251-S7A-N10
HONDA
45251-S87-A00
HONDA
45251-SDC-A00
HONDA
45251-SMG-G10
HONDA
45251-SNL-T60
HONDA
45251-T2F-A01
HONDA
45251-T6A-J00
HONDA
45251-TA0-A00
HONDA
45251-TA0-A01
HONDA
45251-TA0-A02
HONDA
45251-TA5-A00
HONDA
45251-TBA-A00
HONDA
45251-TBA-A01
HONDA
45251-TR0-E00
HONDA
45251S7AE11
HONDA
45251SCAE00
HONDA
45251SJHE10
HONDA
45251SMCN10
HONDA
45251SMCN11
HONDA
45251SMGE31
HONDA
45251SMGG11
HONDA
45251SNVH00
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.12~01.15 2000 R20A DE1 RN1218V PN8485 RN1362 PN8397
10.02~12.08 2000 K20A CL7 JPN RN1413VRN1218V PN8465 RN1203 PN8397
10.02~12.08 2000 K20A CL8 RN1218V PN8465 RN1974 PN8397
10.02~12.08 2000 K20A EURO RN1218VRN1405V PN8125PN8465PN8485 RN1203 PN8397PN8109
01.02~01.06 2000 K20A6 CM4 RHD RN1218V PN8465 RN1203 PN8397
01.06~12.08 2000 K20A6 CM4 RHD RN1218V PN8465 RN1203 PN8397
06.06~12.08 2000 K20Z2 EURO RN1204VRN1218V PN8485PN8125 RN1203 PN8109PN8397
02.03~11.05 2400 K24A CM5 LHD RN1218V PN8485 RN1203 PN8397
11.05~12.08 2400 K24A CM5 LHD RN1218V PN8465PN8485 RN1203 PN8397
01.02~12.08 2400 K24A4 CM5 RHD RN1218V PN8465 RN1203 PN8397
11.05~12.08 2400 K24A8 CM5 RHD RN1204VRN1218V PN8465 RN1203 PN8397
01.02~11.05 2400 K24A8 CM5 US RN1218V PN8485 DN1393RN1203 FN5524PN8397
11.05~12.08 2400 K24A8 CM5 US RN1218V PN8485 RN1203DN1393 FN5524PN8397
01.16~09.17 2400 K24W CR2 US RN1218VRN2361V PN28005PN0647PN8485 RN1425 PN8864 FN0663
09.12~09.15 2400 K24W CR2 US KA RN1218V PN8485 RN1425 PN8864 FN0663
08.10~09.12 2400 K24Z3 CP2 US RN1218V PN8485 RN1409 PN8864
09.00~01.02 3000 J30A CG1 US RN1218V PN8254 RN1974 PN8397
09.97~06.03 3000 J30A1 CG1 RN1218V PN8254 RN1974 PN8397
01.03~01.06 3000 J30A4 CM6 RHD RN1413VRN1218V PN8465 RN1203 PN8397
11.05~11.08 3000 J30A4 CM6 US RN1413VRN1218V PN8465 RN1203 PN8397
01.03~12.07 3000 J30A4 EURO RN1218V PN8465 RN1203 PN8397
01.02~11.05 2400 K24A4 CM7 US RN1218V PN8485 RN1203 PN8397
08.10~08.12 2400 K24Z3 CS1 RN1218V PN8485 RN1409 PN8864
01.98~06.03 3000 J30A CG1 US RN1218V PN8254 RN1974 PN8397
11.02~12.08 2000 K20A CM1 RN1218V PN8465 RN1994 PN8397 FN0570
11.02~12.09 2400 K24A CM2 RN1218VRN1413V PN8465 RN1994 PN8397 FN0570
01.06~12.09 1300 L13A7 FK1 RN1218V PN8866 RN1362
01.08~12.12 1300 L13Z1 FN4 RN1218V PN8866 RN1362
02.12~10.15 1400 L13Z4 FK1 RN1218V PN8484PN8465 RN1599 PN1840PN8397
05.16~03.21 1500 L15B FC1 RHD RN1405VRN1218V PN8485 RN2157 PN8813
05.16~03.21 1500 L15B7 FK7 RN1218VRN1600V PN8485PN8863 RN2157RN2283 PN8813
01.11~01.18 1600 R16 FB7 RN1218V PN8465 RN1362 PN8397
01.05~12.08 1600 R16A FD4 RHD RN1468VRN1218V PN8465PN8484 RN1362 PN8397
12.08~12.11 1600 R16A FD4 RHD RN1468VRN1218V PN8465PN8484 RN1362 PN8397
09.05~12.11 1600 R16A2 FD6 RN1218VRN1468V PN8465PN8484 RN1362 PN8397FN28002
01.11~01.14 1600 R16B FB1 RHD RN1218V PN8465 RN1362 PN8397
01.14~09.15 1600 R16B FB1 RHD RN1218V PN8465 RN1362 PN8397
01.12~09.15 1800 R18 FB8 RN1218V PN8465 RN1362 PN8397
09.05~01.11 1800 R18A FD1 JPN RN1218V PN8465 RN1362 PN8397
12.08~01.12 1800 R18A1 FD1 RHD RN1218V PN8465 RN1362 PN8397
09.05~12.08 1800 R18A1 JHMFD1 RN1218VRN1468V PN8465PN8484 RN1362 PN8397
12.08~12.11 1800 R18A1 JHMFD1 RN1218V PN8465 RN1362 PN8397
09.05~12.11 1800 R18A1 MRHFD1 RN1468VRN1218V PN8484PN8465 RN1362 PN8397
09.05~01.12 1800 R18A1 PADFD1 RN1218VRN1468V PN8465 RN1362 PN8397
09.05~12.11 1800 R18A1 RLHFD1 RN1218VRN1468V PN8465PN8484 RN1362 PN8397
01.06~01.12 1800 R18A2 FK2 HB RN1218V PN8866 RN1362 PN8867
01.06~12.12 1800 R18A2 FN1 RN1218V PN8866 RN1362 PN8867
10.11~01.17 1800 R18Z1 FB2 RHD RN1218V PN8465 RN1362 PN8397
09.06~09.08 2000 K20A FD2 JPN RN1218V PN8465 RN1362 PN8397
09.08~01.11 2000 K20A FD2 JPN RN1218V PN8465 RN1362 PN8397
09.05~12.08 2000 K20Z FD2 LHD RN1218V PN8465 RN1362 PN8397
09.05~12.08 2000 K20Z FD2 RHD RN1218V PN8465 RN1362 PN8397
12.08~01.12 2000 K20Z FD2 RHD RN1218V PN8465 RN1362 PN8397
01.12~12.17 2000 R20 FB2 RN1218V PN8465 RN1362 PN8397
01.12~01.14 2000 R20A5 FB3 RN1218V PN8465 RN1362 PN8397
09.05~12.09 2200 N22A2 FK3 RN1218V PN8866 RN1362 PN8867
09.05~01.12 2200 N22A2 FN3 RN1218V PN8866 RN1362 PN8867
09.15~09.18 1500 L15B FC1 RN1218V PN8485 RN2157 PN8813
09.18~11.20 1500 L15B FC1 RN1218V PN8485 RN2157 PN8813
11.20~ 1500 L15C FE1 RN1218VRN2227V PN8819PN8823 RN2157 PN8813
11.20~ 1500 L15C FL1 RN1218V PN8823 RN2157 PN8813
01.12~01.14 1800 R18A FB2 RN1218V PN8485PN8484 DN1388RN1362 PN8397FN28002
01.14~09.15 1800 R18A FB2 RN1218V PN8485 DN1388RN1362 FN28002PN8397
11.20~ 2000 K20C FE2 RN1218V PN8823 RN2157 PN8813
11.20~ 2000 K20C FL2 RN1218V PN8823 RN2157 PN8813
09.15~09.18 2000 K20C2 FC2 US RN1218V PN8485 RN2157 PN8813
09.18~11.20 2000 K20C2 FC2 US RN1218V PN8485 RN2157 PN8813
10.08~12.11 1300 L13Z1 FK1 RN1468VRN1218V PN8866PN8484 RN1362 PN8867PN8397
12.08~01.12 1800 R18A1 FD1 LHD RN1218V PN8465 RN1362 PN8397
09.05~01.09 1800 R18A1 FD7 RN1218V PN8465 RN1362 PN8397
01.09~01.12 1800 R18A1 FD7 RN1218V PN8465 RN1362 PN8397FN28002
09.01~01.05 2400 K24A1 RD6 RN1218V PN8485 RN1460 PN8397 FN0570
09.01~09.04 2400 K24A1 RD7 RN1218V PN8485 RN1460 PN8397 FN0570
02.07~08.10 2000 R20A RT3 RN1218VRN1322V PN8465 RN1460 PN8506 FN0570
07.04~12.06 1700 D17A BE2 RN1218V PN8465 RN1355 PN8397 FN0570
01.04~06.12 2000 K20A BE3 RN1218V PN8465 RN1355 PN8397 FN0570
07.04~08.09 2000 K20A BE4 RN1218V PN8465 RN1355 PN8397 FN0570
12.06~08.09 2400 K24A BE8 RN1218V PN8465 RN1355 PN8397 FN0570
04.03~07.05 2400 K24A YH2 JPN RN1218V PN8485 RN2226 PN8397 FN0570
12.02~08.08 2400 K24A YH2 US RN1218V PN8485 RN2226 PN8397 FN0570
08.08~05.11 2400 K24A YH2 US RN1218V PN8485 RN2226 PN8397 FN0570
06.04~08.06 1700 D17A2 BE1 RN1218V PN8465 RN1355 PN8807 FN0570
08.06~11.09 1800 R18A1 BE1 RN1218V PN8465 RN1355 PN8807 FN0570
01.05~11.09 2000 K20A9 BE3 RN1218V PN8465 RN1355 PN8807 FN0570
01.05~11.09 2200 N22A1 BE5 RN1218V PN8465 RN1355 PN8807 FN0570
01.15~01.18 1500 L15 JHMRU1 RN1218V PN28005 RN1409 PN8812
01.18~ 1500 L15 JHMRU1 RN1218V PN28005 RN1409 PN8812
01.18~ 1500 LEB ZE4 RN1218V PN8823 RN2157 PN8822
10.98~06.03 2500 J25A UA4 RN1218V PN8254 RN2226 PN8397 FN0570
05.15~07.20 1500 L15B FR5 JPN RN1218V PN8485 RN1460 PN8807 FN0570
02.15~07.20 1500 L15B FR5 RHD RN1218V PN8485 RN1460 PN8807 FN0570
02.15~07.20 1500 LEB-H1 FR4 RN1218V PN8485 RN1460 PN8807 FN0570
10.13~ 2400 K24W MRC1 RN1418VRN1218V PN28005 RN1259 PN8807 FN8003
10.13~ 2400 K24W RC1 JPN RN1218V PN28005 RN1259 PN8807 FN8003
11.13~ 2400 K24W RC2 RN1218V PN28005 RN1259 PN8807 FN8003
04.15~10.21 1500 L15B RP1 RN1218V PN28005 RN2156 PN8807 FN0570
04.15~10.21 1500 L15B RP2 RN1218V PN28005 RN1259 PN8807 FN8003
05.05~10.09 2000 K20 RG1 JPN RN1218V PN8465 RN1994 PN8506 FN0570
05.05~10.09 2000 K20 RG2 RN1218V PN8465 RN1994 PN8506 FN0570
04.01~10.05 2000 K20A RF3 RN1218V PN8254 RN1994 PN8397 FN0570
04.01~05.05 2000 K20A RF4 RN1218V PN8254 RN1994 PN8397 FN0570
06.03~05.05 2000 K20A RF5 RN1218V PN8254 RN1994 PN8397 FN0570
06.03~05.05 2000 K20A RF6 RN1218V PN8254 RN1994 PN8397 FN0570
10.09~04.15 2000 R20A RK1 RN1218V PN8485 RN1994 PN8807 FN0570
10.09~04.15 2000 R20A RK2 RN1218V PN8485 RN1994 PN8807 FN0570
10.09~04.15 2000 R20A RK3 RN1218V PN8485 RN1994 PN8807 FN0570
10.09~04.15 2000 R20A RK4 RN1218V PN8485 RN1994 PN8807 FN0570
10.09~04.15 2000 R20A RK5 RN1218V PN8485 RN1994 PN8807 FN0570
05.05~10.09 2400 K24 RG3 RN1218V PN8465 RN1994 PN8506 FN0570
06.03~05.05 2400 K24A RF7 RN1218V PN8254 RN1994 PN8397 FN0570
06.03~05.05 2400 K24A RF8 RN1218V PN8254 RN1994 PN8397 FN0570
05.05~10.09 2400 K24A RG4 JPN RN1218V PN8465 RN1994 PN8506 FN0570
04.15~10.21 1500 L15B RP3 RN1218V PN28005 RN1259 PN8807 FN8003
04.15~10.21 1500 L15B RP4 RN1218V PN28005 RN1259 PN8807 FN8003
10.09~04.15 2000 R20A RK6 RN1218V PN8485 RN1994 PN8807 FN0570
10.09~04.15 2000 R20A RK7 RN1218V PN8485 RN1994 PN8807 FN0570
10.00~07.06 1700 D17A RN1 RN1218VRN1468V PN8264PN8465 RN1355DN1380 PN8397FN5524 FN0570
07.06~06.14 1800 R18A RN6 JPN RN1218V PN8465 RN1460DN1379 PN8506FN5524 FN0570
07.06~05.14 1800 R18A RN7 RN1218V PN8465 RN1460 PN8506 FN0570
07.06~05.14 1800 R18A1 RN6 RHD RN1218V PN8465 RN1460 FN5524PN8506 FN0570
10.00~07.06 2000 K20A RN3 RN1218V PN8465 RN1355 PN8397 FN0570
10.00~07.06 2000 K20A RN4 RN1218V PN8465 RN1355 PN8397 FN0570
12.03~07.06 2000 K20B RN5 RN1218V PN8465 RN1355 PN8397 FN0570
07.06~05.14 2000 R20A RN8 RN1218V PN8465 RN1460 PN8506 FN0570
07.06~05.14 2000 R20A RN9 RN1218V PN8465 RN1460 PN8506 FN0570
03.13~03.21 1500 L15B RU1 RN1218V PN28005 RN1409 PN8812
03.13~03.21 1500 L15B RU2 RN1218V PN28005 RN1409 PN8506PN8812
04.21~ 1500 L15Z RV3 RN1218V PN28005 RN1409 PN8812
04.21~ 1500 L15Z RV4 RN1218V PN28005 RN1409 PN8812

Exemption from liability: the catalog data is advisory and can be used for reference only
