ROTOR DISC » RN1468V

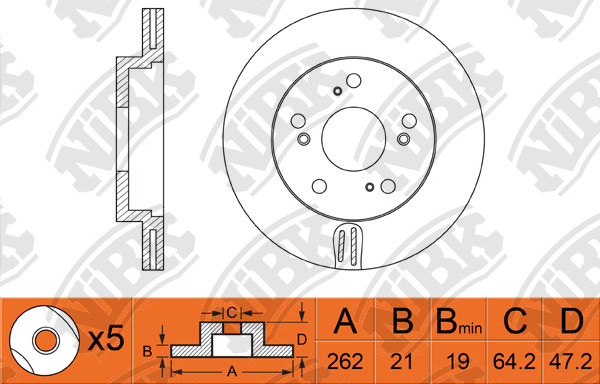

Specification
Type
Vented
Disc Thickness (Max)
21
Num. of holes
5
Height
47.2
Centering Diameter
64.2
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
262
Drum Ø:
141
Disc Thickness (Min)
19
Structure Material
G3000
Variation
Cross Reference
HONDA
45251-S6M-000
HONDA
45251-S7A-J10
HONDA
45251-SNA-000
HONDA
45251-SNA-010
HONDA
45251-SNE-A00
HONDA
45251-SNJ-M00
HONDA
45251-SNL-T00
HONDA
45251-SZT-020
HONDA
45251-SZT-030
HONDA
45251-SZT-040
HONDA
45251-TR0-A00
HONDA
45251-TR3-A00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.01~09.04 | 2000 | K20A3 | DC5 | RN1468V | PN8264 | RN1974 | PN8398 | |
| 10.04~08.06 | 2000 | K20A3 | DC5 | RN1468V | PN8264 | RN1974 | PN8398 |
| 11.05~12.11 | 1300 | LDA2 | FA3 | RN1468V | PN8264 | DN1380 | FN5524 | |
| 09.05~01.11 | 1300 | LDA2 | FD3 JPN | RN1468V | PN8264 | RN1362 | PN8398 | |
| 04.06~01.12 | 1300 | LDA2 | FD3 RHD | RN1468V | PN8264 | RN1362 | PN8398 | |
| 11.06~12.09 | 1300 | LDA2 | JHMFD3 | RN1468V | PN8264 | DN1380 | FN5524PN8398 | |
| 01.11~10.15 | 1500 | LEA-MF6 | FB4 | RN1468V | PN8264 | DN1380 | FN5524 | |
| 01.01~12.05 | 1600 | D16V1 | EP2 LHD | RN1468V | PN8103 | PN8398 | ||
| 01.05~12.08 | 1600 | R16A | FD4 RHD | RN1218VRN1468V | PN8465PN8484 | RN1362 | PN8398 | |
| 12.08~12.11 | 1600 | R16A | FD4 RHD | RN1468VRN1218V | PN8465PN8484 | RN1362 | PN8398 | |
| 09.05~12.11 | 1600 | R16A2 | FD6 | RN1468VRN1218V | PN8484PN8465 | RN1362 | FN28002PN8398 | |
| 09.00~09.05 | 1700 | D17A | EU3 JPN | RN1089VRN1468V | PN8264 | RN1974 | FN5524PN8398 | |
| 09.00~09.05 | 1700 | D17A | EU4 | RN1089VRN1468V | PN8264 | RN1362 | FN5524 | |
| 09.00~09.05 | 1700 | D17A5 | EU3 HB GL | RN1468VRN1089V | PN8264 | RN1974 | PN8398FN5524 | |
| 09.05~02.08 | 1800 | R18A1 | FA1 LHD LA | RN1468V | PN8827 | RN1362 | PN8398 | |
| 09.05~02.08 | 1800 | R18A1 | FA1 RHD | RN1468V | PN8484 | RN1362 | PN8398 | |
| 02.08~01.11 | 1800 | R18A1 | FA1 RHD | RN1468V | PN8484 | RN1362 | PN8398 | |
| 09.05~01.09 | 1800 | R18A1 | FA2 RHD | RN1468V | PN8484 | RN1362 | PN8398 | |
| 01.09~02.12 | 1800 | R18A1 | FA2 RHD | RN1468V | PN8484 | RN1362 | PN8398 | |
| 09.05~12.06 | 1800 | R18A1 | JHMFD1 | RN1468VRN1218V | PN8465PN8484 | RN1362 | PN8398 | |
| 09.05~12.06 | 1800 | R18A1 | MRHFD1 | RN1218VRN1468V | PN8484PN8465 | RN1362 | PN8398 | |
| 09.05~12.06 | 1800 | R18A1 | PADFD1 | RN1468VRN1218V | PN8465 | RN1362 | PN8398 | |
| 09.05~12.06 | 1800 | R18A1 | RLHFD1 | RN1468VRN1218V | PN8484PN8465 | RN1362 | PN8398 | |
| 02.08~12.11 | 1800 | R18A6 | FA6 BRZL LHD | RN1468V | PN8827 | RN1362 | PN8398 |
| 01.12~01.14 | 1800 | R18A | FB2 | RN1218VRN1468V | PN8484PN8485 | DN1388RN1362 | PN8398FN28002 | |
| 09.05~02.08 | 1800 | R18A1 | FA1 | RN1468V | PN8484 | RN1362DN1388 | PN8398FN28002 | |
| 02.08~01.11 | 1800 | R18A1 | FA1 | RN1468V | PN8484 | DN1388RN1362 | FN28002PN8398 |
| 09.05~02.08 | 1800 | R18A | FG1 | RN1468V | PN8484 | RN1362 | PN8398 | |
| 02.08~01.11 | 1800 | R18A | FG1 | RN1468V | PN8484 | RN1362 | PN8398 |
| 10.08~12.11 | 1300 | L13Z1 | FK1 | RN1218VRN1468V | PN8866PN8484 | RN1362 | PN8398PN8867 | |
| 10.08~12.11 | 1400 | L13Z1 | FN4 | RN1468V | PN8484PN8866 | RN1362 | PN8867PN8398 | |
| 09.05~12.08 | 1800 | R18A1 | FD1 LHD | RN1468VRN1218V | PN8465PN8484 | DN1388RN1362 | PN8398FN28002 | |
| 12.08~01.12 | 1800 | R18A1 | FD1 LHD | RN1218VRN1468V | PN8465PN8484 | RN1362 | PN8398 |
| 02.10~09.12 | 1500 | LEA-MF6 | ZF1 | RN1468V | PN8868 | PN8398 | ||
| 09.12~01.17 | 1500 | LEA-MF6 | ZF2 | RN1468V | PN8868 | PN8398 |
