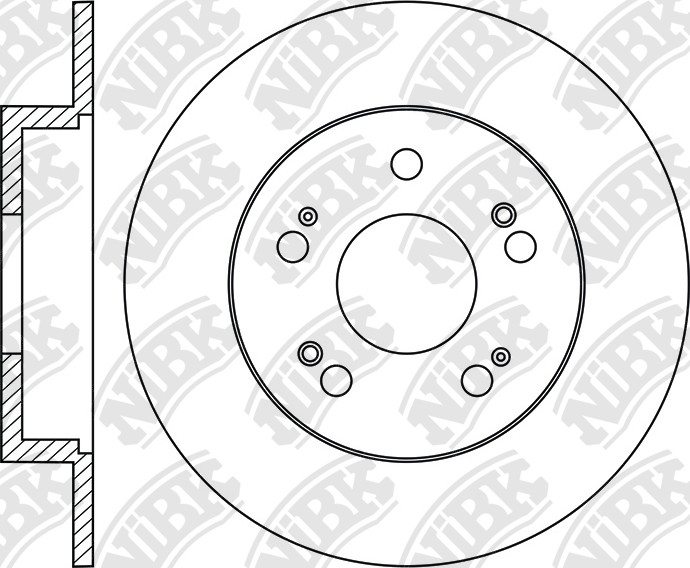

ROTOR DISC » RN1362
Specification
Type
Solid
Disc Thickness (Max)
9
Num. of holes
5
Height
42.2
Centering Diameter
64.2
Front/Rear
Rear
Pitch Circle Ø
114.3
Outter Ø
260
Drum Ø:
141
Disc Thickness (Min)
8
Structure Material
G3000
Variation
Cross Reference
GREAT WALL
3501011XJZ08A
HONDA
42510-SMG-E20
HONDA
42510-SNA-A00
HONDA
42510-SNA-A01
HONDA
42510-SNE-A00
HONDA
42510-SNL-T00
HONDA
42510-SNV-H00
HONDA
42510-TR3-A00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.06~12.09 | 1300 | L13A7 | FK1 | RN1218V | PN8866 | RN1362 | ||
| 09.05~01.11 | 1300 | LDA2 | FD3 JPN | RN1468V | PN8264 | RN1362 | PN8398 | |
| 04.06~01.12 | 1300 | LDA2 | FD3 RHD | RN1468V | PN8264 | RN1362 | PN8398 | |
| 10.08~12.11 | 1400 | L13Z1 | FN4 | RN1218V | PN8866 | RN1362 | PN8867 | |
| 01.11~01.18 | 1600 | R16 | FB7 | RN1218V | PN8465 | RN1362 | PN8398 | |
| 01.05~12.08 | 1600 | R16A | FD4 RHD | RN1218VRN1468V | PN8484PN8465 | RN1362 | PN8398 | |
| 12.08~12.11 | 1600 | R16A | FD4 RHD | RN1468VRN1218V | PN8465PN8484 | RN1362 | PN8398 | |
| 09.05~12.11 | 1600 | R16A2 | FD6 | RN1218VRN1468V | PN8465PN8484 | RN1362 | PN8398FN28002 | |
| 01.11~01.14 | 1600 | R16B | FB1 RHD | RN1218V | PN8465 | RN1362 | PN8398 | |
| 01.14~09.15 | 1600 | R16B | FB1 RHD | RN1218V | PN8465 | RN1362 | PN8398 | |
| 01.11~01.14 | 1600 | R16B1 | FB1 LHD | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.00~09.05 | 1700 | D17A | EU4 | RN1468VRN1089V | PN8264 | RN1362 | FN5524 | |
| 01.12~09.15 | 1800 | R18 | NLAFB8 TR | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.05~01.11 | 1800 | R18A | FD1 JPN | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.05~02.08 | 1800 | R18A1 | FA1 LHD LA | RN1468V | PN8827 | RN1362 | PN8398 | |
| 09.05~02.08 | 1800 | R18A1 | FA1 RHD | RN1468V | PN8484 | RN1362 | PN8398 | |
| 02.08~01.11 | 1800 | R18A1 | FA1 RHD | RN1468V | PN8484 | RN1362 | PN8398 | |
| 09.05~01.09 | 1800 | R18A1 | FA2 RHD | RN1468V | PN8484 | RN1362 | PN8398 | |
| 01.09~02.12 | 1800 | R18A1 | FA2 RHD | RN1468V | PN8484 | RN1362 | PN8398 | |
| 09.05~12.08 | 1800 | R18A1 | FD1 RHD | RN1218V | PN8465 | RN1362 | PN8398 | |
| 12.08~01.12 | 1800 | R18A1 | FD1 RHD | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.05~12.08 | 1800 | R18A1 | JHMFD1 | RN1218VRN1468V | PN8465PN8484 | RN1362 | PN8398 | |
| 12.08~12.11 | 1800 | R18A1 | JHMFD1 | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.05~12.11 | 1800 | R18A1 | MRHFD1 | RN1218VRN1468V | PN8465PN8484 | RN1362 | PN8398 | |
| 09.05~01.12 | 1800 | R18A1 | PADFD1 | RN1468VRN1218V | PN8465 | RN1362 | PN8398 | |
| 09.05~12.11 | 1800 | R18A1 | RLHFD1 | RN1218VRN1468V | PN8484PN8465 | RN1362 | PN8398 | |
| 01.06~01.12 | 1800 | R18A2 | FK2 HB | RN1218V | PN8866 | RN1362 | PN8867 | |
| 01.06~01.12 | 1800 | R18A2 | FK2 HB RHD | RN1218V | PN8866 | RN1362 | PN8867 | |
| 01.06~12.08 | 1800 | R18A2 | FN1 | RN1218V | PN8866 | RN1362 | PN8867 | |
| 12.08~12.12 | 1800 | R18A2 | FN1 | RN1218V | PN8866 | RN1362 | PN8867 | |
| 02.08~12.11 | 1800 | R18A6 | FA6 BRZL LHD | RN1468V | PN8827 | RN1362 | PN8398 | |
| 01.12~01.14 | 1800 | R18Z1 | FB2 LHD 19XF | RN1218V | PN8465 | DN1388RN1362 | PN8398FN28002 | |
| 01.12~01.14 | 1800 | R18Z1 | FB2 LHD JHM | RN1218V | PN8465 | RN1362 | PN8398 | |
| 10.11~01.17 | 1800 | R18Z1 | FB2 RHD | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.06~09.08 | 2000 | K20A | FD2 JPN | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.08~01.11 | 2000 | K20A | FD2 JPN | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.05~12.08 | 2000 | K20Z | FD2 LHD | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.05~12.08 | 2000 | K20Z# | FD2 RHD | RN1218V | PN8465 | RN1362 | PN8398 | |
| 12.08~01.12 | 2000 | K20Z# | FD2 RHD | RN1218V | PN8465 | RN1362 | PN8398 | |
| 01.12~12.17 | 2000 | R20 | FB2 | RN1218V | PN8465 | RN1362 | PN8398 | |
| 01.12~01.14 | 2000 | R20A5 | FB3 | RN1218V | PN8465 | RN1362 | PN8398 | |
| 09.05~12.09 | 2200 | N22A2 | FK3 | RN1218V | PN8866 | RN1362 | PN8867 | |
| 09.05~01.12 | 2200 | N22A2 | FN3 | RN1218V | PN8866 | RN1362 | PN8867 |
| 01.12~01.14 | 1800 | R18A | FB2 | RN1218VRN1468V | PN8484PN8485 | DN1388RN1362 | PN8398FN28002 | |
| 01.14~09.15 | 1800 | R18A | FB2 | RN1218V | PN8485 | DN1388RN1362 | PN8398FN28002 | |
| 09.05~02.08 | 1800 | R18A1 | FA1 | RN1468V | PN8484 | DN1388RN1362 | FN28002PN8398 | |
| 02.08~01.11 | 1800 | R18A1 | FA1 | RN1468V | PN8484 | DN1388RN1362 | PN8398FN28002 | |
| 01.08~01.11 | 2000 | K20Z3 | FA5 | RN1177V | PN8423 | RN1362 | PN8398 | |
| 01.12~01.14 | 2400 | K24Z7 | FB6 | RN1177V | PN8485 | RN1362 | PN8398 |
| 09.05~02.08 | 1800 | R18A | FG1 | RN1468V | PN8484 | RN1362 | PN8398 | |
| 02.08~01.11 | 1800 | R18A | FG1 | RN1468V | PN8484 | RN1362 | PN8398 | |
| 01.14~09.15 | 1800 | R18A1 | FG3 US | RN1218V | PN8485 | RN1362 | PN8398 | |
| 09.05~02.08 | 2000 | K20Z3 | FG2 US | RN1177V | PN8423 | RN1362 | PN8398 |
| 10.08~12.11 | 1300 | L13Z1 | FK1 | RN1468VRN1218V | PN8484PN8866 | RN1362 | PN8867PN8398 | |
| 10.08~12.11 | 1400 | L13Z1 | FN4 | RN1468V | PN8484PN8866 | RN1362 | PN8398PN8867 | |
| 09.05~12.08 | 1800 | R18A1 | FD1 LHD | RN1468VRN1218V | PN8465PN8484 | DN1388RN1362 | PN8398FN28002 | |
| 12.08~01.12 | 1800 | R18A1 | FD1 LHD | RN1218VRN1468V | PN8465PN8484 | RN1362 | PN8398 | |
| 09.05~01.09 | 1800 | R18A2 | FD7 | RN1218V | PN8465 | RN1362 | PN8398 | |
| 01.09~01.12 | 1800 | R18A2 | FD7 SDN LHD | RN1218V | PN8465 | RN1362 | FN28002PN8398 |
