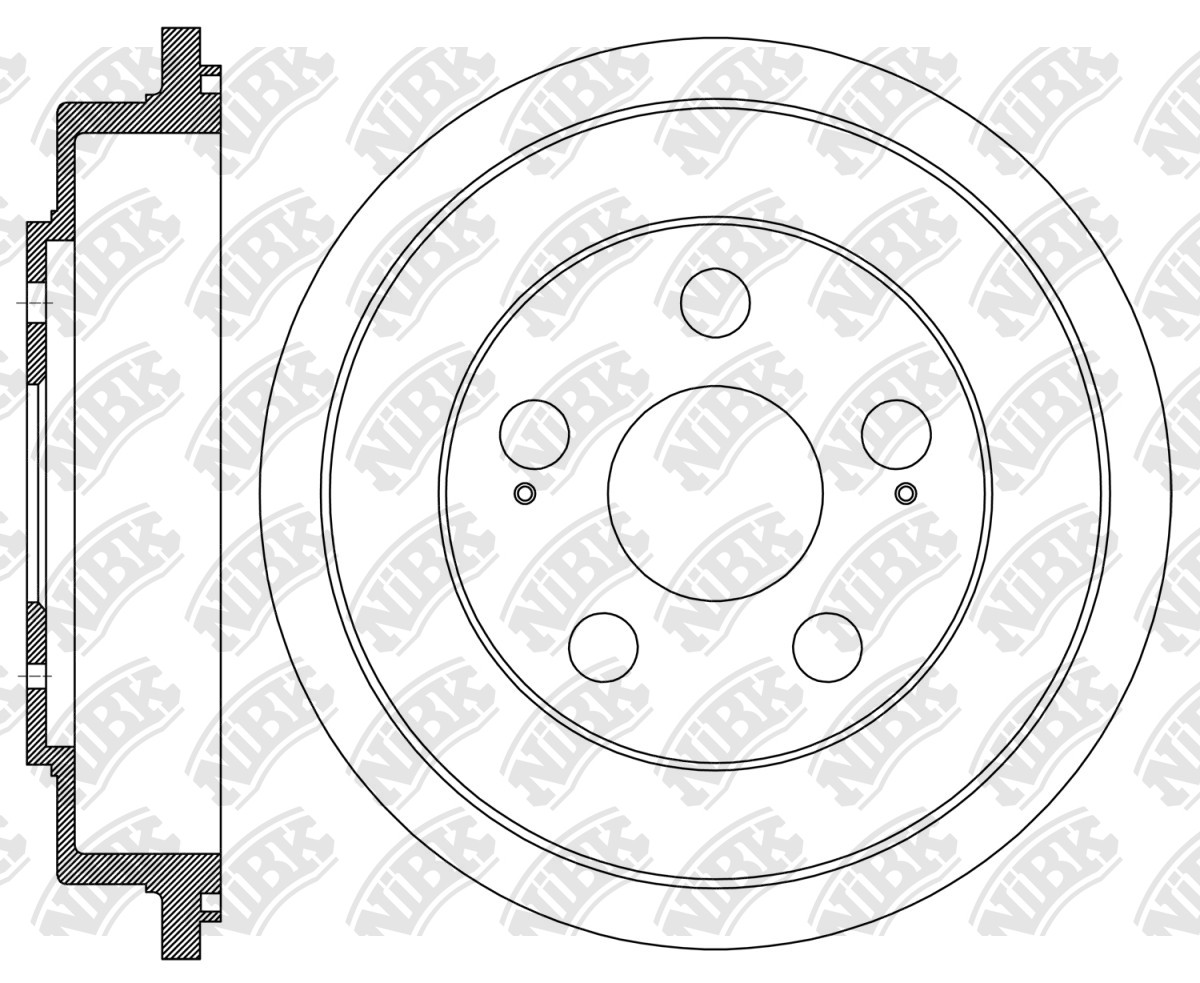

DRUM BRAKE » DN1380

DN1380

Specification

Outter Ø
282.5
Num. of holes
5
Hole Ø
12.5
Centering Diameter
64.1
Height
59.9
Pitch Circle Ø
114.3
Drum Ø
228,6
Structure Material
G3000

Cross Reference

HONDA
42610-S7A-J00
HONDA
42610-S7A-J01
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HONDA   »   Civic

11.05~12.11 1300 LDA2 FA3 RN1468V PN8264 DN1380 FN5524
11.06~12.09 1300 LDA2 JHMFD3 RN1468V PN8264 DN1380 FN5524PN8398
01.11~10.15 1500 LEA-MF6 FB4 RN1468V PN8264 DN1380 FN5524

HONDA   »   Stream

10.00~07.06 1700 D17A# RN1 GR RN1468VRN1218V PN8465PN8264 RN1355DN1380 FN5524PN8397 FN0570
10.00~07.06 1700 D17A# RN1 JPN RN1218VRN1468V PN8264PN8465 RN1355DN1380 PN8397FN5524 FN0570
