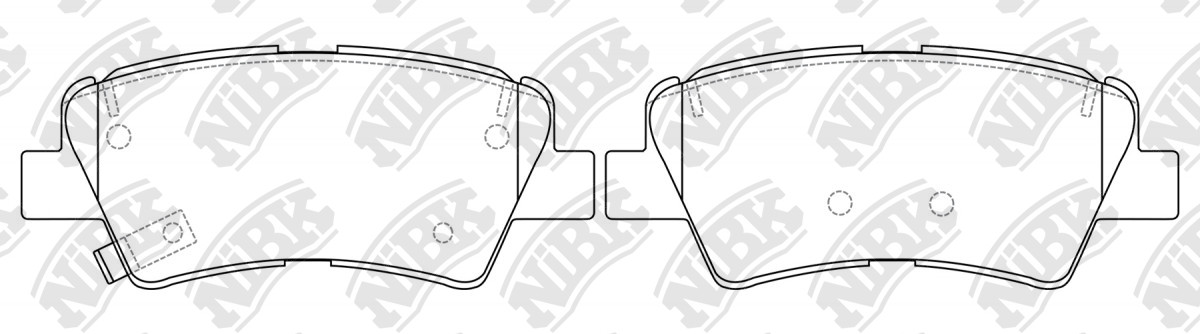

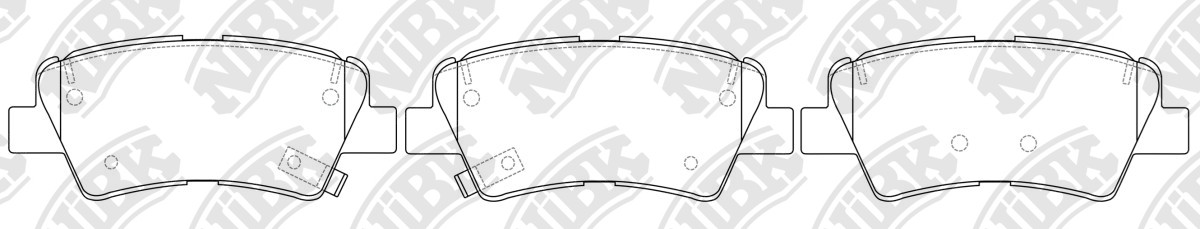

BRAKE PADS » PN0591
Specification
Length-1
99.6
Width-1
41.2
Length-2
99.6
Width-2
41.2
Thickness-1
14.8
Thickness-2
14.8
Pcs In Set
4
Cross Reference
BENDIX
DB2088
CHANGAN
3502130/140-W01
CHANGAN
3502130/240-W01
CHANGAN
S101063-0400
CHANGAN
S101063-0401
FMSI
D1313-8428
FMSI
D1445-8428
FMSI
D1446-8428
FMSI
D1848-8428
GEELY
1064001725-02
HYUNDAI
58302-0AA00
HYUNDAI
58302-0AA10
HYUNDAI
58302-2HA50
HYUNDAI
58302-2HA51
HYUNDAI
58302-2KA10
HYUNDAI
58302-2KA50
HYUNDAI
58302-2TA40
HYUNDAI
58302-2TA60
HYUNDAI
58302-2TA70
HYUNDAI
58302-3FA02
HYUNDAI
58302-3FA11
HYUNDAI
58302-3KA35
HYUNDAI
58302-3KA52
HYUNDAI
58302-3KA62
HYUNDAI
58302-3KA63
HYUNDAI
58302-3LA10
HYUNDAI
58302-3LA20
HYUNDAI
58302-3QA10
HYUNDAI
58302-D3A00
HYUNDAI / KIA
58302-2EA31
HYUNDAI / KIA
58302-3QA10
KASHIYAMA
D11210MH
KASHIYAMA
D11430MH
KIA
58302-2EA31
KIA
58302-2KA00
KIA
58302-2KA10
KIA
58302-2TA60
KIA
58302-3FA01
KIA
58302-3KA31
KIA
58302-3KA52
SSANGYONG
48413341A0
SSANGYONG
48413350B0
SSANGYONG
48413350C0
SSANGYONG
48413350D0
SSANGYONG
48413370B0
SSANGYONG
48413371B0
years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
---|
01.15~ | 1500 | 4G15 | FE -3-4 | RN2553V | PN0537 | PN0591 | ||
07.12~11.16 | 1500 | JL4G15 | FE-1 | RN2552V | PN0537PN0187WPN8046 | RN2554 | PN0019WPN0591PN0069 | |
01.15~ | 1800 | 4G18 | FE -3-4 | RN2553V | PN0537 | PN0591 | ||
07.12~03.17 | 1800 | JL4G18 | FE-1 | RN2553VRN2552V | PN0187WPN8046PN0537 | RN2554 | PN0591PN0069PN0019W |
05.16~06.20 | 1500 | JLy4G15 | FE-3JC | RN2555VRN2553V | PN0537PN0838 | PN0591 | ||
05.16~07.20 | 1800 | JLy4G18 | FE-3JC | RN2555VRN2553V | PN0537PN0838 | PN0591 |
04.06~09.11 | 1600 | G4FC | HD06 LHD | RN1606V | PN0377 | RN1307 | PN0591PN0539 | FN11004 |
04.06~06.11 | 2000 | G4GC | PHD06 LHD US/CAN | RN1606V | PN0377 | DN1503RN1307 | PN0591FN11189 | FN11004 |
01.11~07.14 | 3000 | G6DE | FH41 | RN1547VRN1644V | PN0537PN0536 | RN1476RN1601 | PN0591PN0778 | FN0716 |
09.11~06.16 | 3300 | G6DH | HG | RN1644VRN1547V | PN11001PN0536 | RN1601RN1476 | PN0591PN0778 | FN0716 |
05.14~10.16 | 2200 | D4HB | PHG15 | RN1644V | PN0799 | RN1601RN1476 | PN0591PN0778 | FN0716 |
11.11~06.14 | 3000 | L6DB | PHG11 | RN1547V | PN0536 | RN1476 | PN0591 | FN0716 |
12.07~01.13 | 2000 | D4EA | NF | RN1348V | PN0377 | RN1476 | PN0591 | FN11004 |
12.07~10.10 | 2000 | G4KD | NF08 LHD | RN1174V | PN0377 | RN1386 | PN0591 | FN11004 |
12.07~10.10 | 2000 | G4KD | NF08 RHD | RN1174V | PN0377 | RN1386 | PN0591PN0539 | FN11004 |
12.07~01.13 | 2000 | L4KA | PNF08 LHD TAXI | RN1174V | PN0377 | RN1386 | PN0591 | FN11004 |
12.07~10.10 | 2400 | G4KC | NF | RN1174V | PN0377 | RN1386 | PN0591 | FN11004 |
12.07~10.10 | 2400 | G4KE | ET41 LHD | RN1174V | PN0377 | RN1386 | PN0591 | FN11004 |
12.07~10.10 | 2400 | G4KE | EU41 LHD | RN1348V | PN0377 | RN1476 | PN0591 | FN11004 |
09.09~06.14 | 2000 | G4KH | PGFA10 US | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
07.12~04.14 | 2000 | G4NE | YF | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
09.09~07.12 | 2400 | G4KJ | PGFA10 US | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
09.09~03.14 | 2400 | G4KJ | YF | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
11.10~07.12 | 2400 | G4KK | PGFE11 US | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
09.09~07.12 | 2400 | G4KK | YF | PN0536 | PN0591 |
09.20~ | 2000 | D4HD | PTLI20 | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
09.20~ | 2000 | G4NJ | PTLI20 | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
10.06~12.09 | 2000 | D4EA | JM04 LHD | RN1348VRN1174V | PN0377 | RN1176 | PN0591PN0539 | FN0644 |
10.06~12.09 | 2000 | G4GC | JM04 LHD EU | RN1348V | PN0377 | RN1176 | PN0591 | FN0644 |
04.15~08.18 | 1600 | G4FJ | PD315 RHD | RN1653V | PN0661 | RN2001RN1996 | PN0591PN0538 | FN0697 |
04.15~08.18 | 1700 | D4FD | PD315 | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
03.15~11.18 | 2000 | D4HA | PD315 LHD KDOM | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
04.15~08.18 | 2000 | D4HA | PD315 RHD | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
04.15~08.18 | 2000 | G4NA | PD315 LHD | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
04.15~08.18 | 2000 | G4NA | PD315 RHD | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0757FN0697 |
04.15~08.18 | 2000 | G4NC | PD315 | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
04.15~08.18 | 2000 | G4NC | PD315 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~03.21 | 1600 | D4FE | PD318 LHD KDOM | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~09.20 | 1600 | G4FD | PD718 GEN | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~09.20 | 1600 | G4FJ | PD318 RHD | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
01.18~09.20 | 1600 | G4FU | NX4 | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~09.20 | 2000 | D4HA | PD718 GEN | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~09.20 | 2000 | G4NA | PD318 | RN1653V | PN0661 | RN1996 | PN0538PN0591 | FN0697 |
01.18~09.20 | 2000 | G4NA | PD718 GEN | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
08.18~09.20 | 2000 | G4NC | PD318 RHD AU | RN1653V | PN0661 | RN2001 | PN0591PN0538 | FN0697 |
01.18~09.20 | 2400 | G4KJ | PD718 GEN | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
11.06~01.09 | 3800 | G6DA | GH | PN0591 |
05.10~06.13 | 2000 | G4KD | PTF11 | RN1174V | PN0635 | RN1307 | PN0591 | FN0716 |
06.13~07.15 | 2000 | G4KH | PTF14 | RN1644V | PN11001 | RN1307RN1601 | PN0591PN0538 | FN0716 |
05.10~06.13 | 2000 | G4NA | PTF11 | RN1174V | PN11001PN0635 | RN1601RN1307 | PN0591PN0538 | FN0716 |
05.10~06.13 | 2000 | L4KA | PTF11 | RN1174V | PN0635 | RN1307RN1601 | PN0538PN0591 | FN0716 |
06.13~07.15 | 2000 | L4NA | PTF14 | RN1174V | PN0635 | RN1601RN1307 | PN0591PN0538 | FN0716 |
05.10~06.13 | 2400 | G4KJ | PTF11 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
03.12~ | 2000 | G4KD | GN | RN1644V | PN11001PN0739 | RN1476 | PN0591 | FN0716 |
01.10~01.13 | 2000 | G4KD | PTF11 RHD | RN1174VRN1644V | PN11001PN0635 | RN1307RN1476 | PN0591 | FN0716 |
08.13~02.16 | 2000 | G4NA | GM41 | RN1174V | PN0635 | RN1307 | PN0591 | FN0716 |
03.10~03.14 | 2000 | G4NE | PTFE11 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
03.10~09.13 | 2400 | G4KE | PTF11 LHD | RN1174V | PN0635 | RN1307 | PN0591 | FN0716 |
03.10~09.13 | 2400 | G4KE | PTF11 RHD | RN1644V | PN11001 | RN1476 | PN0591 | FN0716 |
04.13~03.16 | 2400 | G4KE | PTF14 LHD | RN1174V | PN0635 | RN1307 | PN0591 | FN0716 |
04.13~03.16 | 2400 | G4KE | PTF14 RHD | RN1644V | PN11001 | RN1476 | PN0591 | FN0716 |
03.10~09.13 | 2400 | G4KJ | PTF11 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
12.11~09.13 | 2400 | G4KJ | TFA12 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
04.13~02.16 | 2400 | G4KJ | TFA14 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
04.13~02.16 | 2400 | G4KK | PTFE14 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
03.10~09.13 | 2400 | G4KK | TF | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
10.08~01.14 | 1600 | D4FB | AM | RN1412V | PN0377PN0630 | DN1503RN1786 | PN0591FN11189 | FN0661 |
10.08~01.14 | 1600 | G4FC | PAM08 LHD RUS | RN1412V | PN0377 | RN1786DN1503 | PN0591FN11189 | FN0661 |
10.08~01.14 | 1600 | G4FC | PAM08 RHD | RN1412V | PN0377 | DN1503RN1786 | PN0591FN11189 | FN0661 |
10.08~01.14 | 2000 | G4GC | AM | RN1412V | PN0630PN0377 | DN1503RN1786 | PN0591FN11189 | FN0661 |
07.18~07.21 | 1600 | D4FE | PD919 | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.19~07.21 | 1600 | G4FD | P#814 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0757FN0697 |
10.15~01.19 | 1600 | G4FD | PF116 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 1600 | G4FD | PF116 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.19~07.21 | 1600 | G4FD | PF119 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 1600 | G4FJ | PF116 RHD | RN1653V | PN0661 | RN1996 | PN0591PN0538 | FN0697 |
05.18~07.21 | 1600 | G4FJ | PF119 RHD | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
10.15~01.19 | 1700 | D4FD | PD916 LHD | RN1653V | PN0661PN0578 | RN1996 | PN0591PN0436 | FN0697FN0757 |
10.15~01.19 | 2000 | D4HA | PD916 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 2000 | D4HA | PD916 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
05.18~08.21 | 2000 | D4HA | PD919 LHD | RN1653V | PN0661 | RN1996 | PN0436PN0591 | FN0697 |
10.15~01.19 | 2000 | D4HA | PF116 LHD | RN1653V | PN0578PN0661 | RN1996 | PN0436PN0591 | FN0757FN0697 |
10.15~01.19 | 2000 | D4HA | PF116 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 2000 | G4NA | PD916 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 2000 | G4NA | PD916 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
05.18~08.21 | 2000 | G4NA | PD919 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
05.18~08.21 | 2000 | G4NA | PD919 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~11.18 | 2400 | G4KJ | PD916 US | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
08.12~ | 2000 | D20DTF | C200 | RN1573V | PN0446 | RN1889RN1957 | PN0591 | FN0664FN0709 |
08.12~ | 2000 | G20DF | C200 | RN1573V | PN0446 | RN1889RN1957 | PN0591 | FN0664FN0709 |
01.10~08.13 | 2000 | D20DTF | C200 | RN1573V | PN0446 | RN1889RN1957 | PN0591 | FN0664FN0709 |
06.17~01.19 | 2000 | D20DTF | C200 | RN1573V | PN0446 | RN1957 | PN0591 | FN0664 |
01.10~08.13 | 2000 | D20DTF | C200 Z8UA RUS | RN1573V | PN0446 | RN1889RN1957 | PN0591 | FN0709FN0664 |
08.13~06.17 | 2000 | D20DTF | C200 LHD | RN1573V | PN0446 | RN1889 | PN0591 | FN0709 |
08.13~06.17 | 2000 | D20DTF | C200 LHD DOM | RN1573V | PN0446 | RN1957RN1889 | PN0591 | FN0709FN0664 |
01.11~ | 2000 | D20F | C210 | RN1573V | PN0446 | RN1889RN1957 | PN0591 | FN0709FN0664 |
01.11~ | 2000 | G20DF | C200 | RN1573V | PN0446 | RN1889RN1957 | PN0591 | FN0664FN0709 |
07.15~01.19 | 2200 | D22DTF | C200 LHD | RN1573V | PN0446 | RN1957RN1889 | PN0591 | FN0709FN0664 |
03.20~ | 1200 | G12DTF | X100 RHD | RN1912V | PN0587 | RN1913 | PN0538PN0591 | FN0664 |
06.19~ | 1500 | G15DTF | X100 RHD | RN1912V | PN0587 | RN1913 | PN0538PN0591 | FN0664 |
01.15~06.19 | 1600 | D16DTF | X100 LHD | RN1912V | PN0587 | RN1913RN1957 | PN0591PN0538 | FN0664 |
01.15~06.19 | 1600 | D16DTF | X100 RHD | RN1912V | PN0587 | RN1913 | PN0591PN0538 | FN0664 |
06.19~ | 1600 | D16DTF | X100 RHD | RN1912V | PN0587 | RN1913 | PN0538PN0591 | FN0664 |
01.15~06.19 | 1600 | G16DF | X100 LHD | RN1912V | PN0587 | RN1913 | PN0538PN0591 | FN0664 |
01.15~06.19 | 1600 | G16DF | X100 RHD | RN1912V | PN0587 | RN1913 | PN0591PN0538 | FN0664 |
