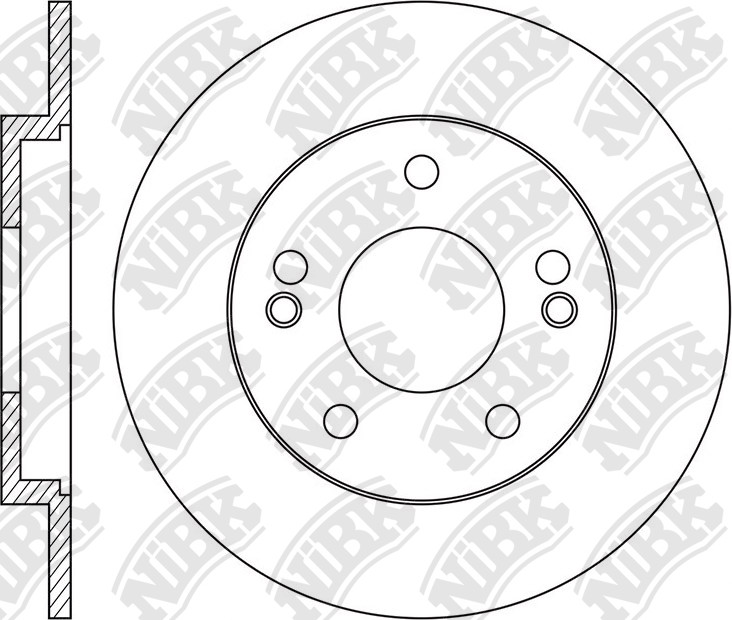

ROTOR DISC » RN1601
Specification
Type
Solid
Outter Ø
284
Num. of holes
5
Disc Thickness (Max)
10
Height
32
Centering Diameter
76
Pitch Circle Ø
114.3
Drum Ø:
155
Front/Rear
Rear
Disc Thickness (Min)
8.5
Structure Material
G3000
Variation
Cross Reference
HYUNDAI
58411-3V500
KIA
58411-3R700
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.11~07.14 | 3000 | G6DE | FH41 | RN1644VRN1547V | PN0536PN0537 | RN1601RN1476 | PN0591PN0778 | FN0716 |
| 09.11~06.16 | 3300 | G6DH | HG | RN1547VRN1644V | PN0536PN11001 | RN1476RN1601 | PN0591PN0778 | FN0716 |
| 07.21~ | 1600 | G4FG | PFZ21 | RN1562VRN1348V | PN0958PN0799 | RN2233RN1601RN1549 | PN0538 | |
| 07.21~ | 2000 | G4NL | PFZ21 | RN1348V | PN0799 | RN1549RN1601RN2233 | PN0538 |
| 05.14~10.16 | 2200 | D4HB | PHG15 | RN1644V | PN0799 | RN1476RN1601 | PN0591PN0778 | FN0716 |
| 11.11~06.14 | 2400 | G4KJ | HG | RN1644V | PN11001 | RN1601 | PN0778 |
| 10.16~ | 1400 | G4LD | PG417 LHD | RN1653VRN2114V | PN0796 | RN1601RN2115 | PN0538PN0795 | |
| 10.16~ | 1400 | G4LD | PG417 RHD FB | RN1653V | PN0796 | RN1601 | PN0538 | |
| 10.16~ | 1400 | G4LD | PG417 RHD HB | RN2114VRN1653V | PN0796 | RN2115RN1601 | PN0795PN0538 |
| 02.20~ | 1000 | G3LE | PG420 RHD WGN SG | RN1653V | PN0796 | RN1601 | PN0538 | |
| 10.16~ | 1400 | G4LD | PD | RN1653V | PN0796 | RN1601RN2115 | PN0538PN0795 |
| 03.16~01.19 | 88kW | C#51 LHD | RN2232V | PN0772 | RN1601 | PN0538 | ||
| 03.16~01.19 | EM09 88kW | C851 RHD | RN2232V | PN0772 | RN1601 | PN0538 | ||
| 01.19~ | EM10 100kW | C851 SG | RN2232V | PN0772 | RN1601 | PN0538 |
| 04.14~03.17 | 2400 | G4KE | PC114 LHD | RN1174VRN1644V | PN0704PN0052 | RN1307RN1601 | PN0538PN0436 | FN11008 |
| 04.14~03.17 | 2400 | G4KJ | LF | RN1174V | PN0704PN0052 | RN1307RN1601 | PN0538PN0436 | FN11008 |
| 03.17~01.20 | 2400 | G4KE | PC117 LHD | RN1174VRN1653V | PN0704PN0578 | RN1601RN1307RN1476 | PN0436PN0538 | FN11008 |
| 09.16~01.20 | 2400 | G4KJ | PC117 RU | RN1644V | PN0578 | RN1601 | PN0538 | FN11008 |
| 02.18~ | 1000 | G3LC | HB/SW/PRO | RN1562VRN2114VRN1653V | PN0796PN0578 | RN2115RN1601 | PN0538PN0795 | |
| 02.18~ | 1400 | G4LC | HB/SW/PRO | RN1653VRN1562VRN2114V | PN0592PN0796 | RN2115RN1601 | PN0538PN0795 | |
| 02.18~ | 1400 | G4LD | HB/SW/PRO | RN2114VRN1653VRN1562V | PN0796PN0578 | RN1601RN2115 | PN0795PN0538 | |
| 02.20~ | 1500 | G4LH | HB/SW/PRO | RN1653VRN1562VRN2114V | PN0592PN0796 | RN2115RN1601 | PN0538PN0795 | |
| 02.18~ | 1600 | D4FE | HB/SW/PRO | RN2114VRN1653VRN1562V | PN0796PN0578 | RN1601RN2115 | PN0795PN0538 | |
| 02.18~ | 1600 | G4FJ | HB/SW/PRO | RN2114VRN1653VRN1562V | PN0796PN0578 | RN1601RN2115 | PN0795PN0538 |
| 10.15~02.18 | 2000 | G4KH | PD416 | RN1644V | PN0578 | RN1601 | PN0538 | |
| 02.18~01.20 | 2000 | G4KH | PD418 | RN1644V | PN0578 | RN1601 | PN0538 | |
| 06.13~07.15 | 2000 | G4KH | PTF14 | RN1644V | PN11001 | RN1307RN1601 | PN0538PN0591 | FN0716 |
| 05.10~06.13 | 2000 | G4NA | PTF11 | RN1174V | PN0635PN11001 | RN1601RN1307 | PN0538PN0591 | FN0716 |
| 02.18~12.20 | 2000 | G4ND | PD418 | RN1644V | PN11001PN0578 | RN1601 | PN0538 | FN0716 |
| 05.10~06.13 | 2000 | L4KA | PTF11 | RN1174V | PN0635 | RN1307RN1601 | PN0591PN0538 | FN0716 |
| 06.13~07.15 | 2000 | L4NA | PTF14 | RN1174V | PN0635 | RN1307RN1601 | PN0591PN0538 | FN0716 |
| 12.15~06.19 | 2200 | D4HB | YG | PN0052 | RN1601 | PN0538 | ||
| 01.16~06.19 | 2400 | G4KJ | YG | PN0052 | RN1601 | PN0538 | ||
| 01.13~12.15 | 3000 | G6DG | JG13 | PN0052 | RN1601 | PN0538 | ||
| 01.16~06.19 | 3000 | G6DG | YG | PN0052 | RN1601 | PN0538 | ||
| 01.13~12.15 | 3000 | L6DB | JG13 DOM | RN1644V | PN0052 | RN1601 | PN0538 | |
| 01.13~12.15 | 3300 | G6DH | VG | PN0052 | RN1601 | PN0538 | ||
| 12.15~06.19 | 3300 | G6DM | YG | PN0052 | RN1601 | PN0538 |
| 05.18~10.19 | 1600 | D4FE | SDN EU | RN1348V | PN0052 | RN1601 | PN0538 | |
| 05.18~ | 1600 | D4FE | WGN EU RHD | RN1348V | PN0052 | RN1601 | PN0538 | |
| 10.15~02.18 | 2000 | G4KH | PD416 | RN1644V | PN0578 | RN1601 | PN0538 | |
| 02.18~01.20 | 2000 | G4KH | PD418 | RN1644V | PN0578 | RN1601 | PN0538 | |
| 08.13~02.16 | 2000 | G4NA | GN41 | RN1644V | PN11001 | RN1601 | PN0538 | |
| 08.13~02.16 | 2000 | G4ND | GN | RN1644V | PN11001 | RN1601 | PN0538 | FN0716 |
| 10.15~04.18 | 2000 | G4ND | PD416 LHD | RN1653VRN1644V | PN0578 | RN1476RN1601 | PN0436PN0538 | FN11008 |
| 10.15~04.18 | 2000 | G4ND | PD416 RHD | RN1644V | PN0578 | RN1601 | PN0538 | |
| 02.18~01.20 | 2000 | G4ND | PD418 | RN1653VRN1644V | PN0578 | RN1601RN1476 | PN0538PN0436 | FN11008 |
| 02.12~08.13 | 2000 | G4ND | PTF11 RHD | RN1644V | PN11001 | RN1601 | PN0538 | |
| 03.14~03.16 | 2000 | G4NE | PTFE14 | RN1348V | PN0536 | RN1601 | PN0538 | |
| 10.15~02.18 | 2400 | G4KE | PD416 SDN RHD | RN1644V | PN0578 | RN1601 | PN0538 | |
| 02.18~01.20 | 2400 | G4KJ | PD418 | RN1644V | PN0578 | RN1601 | PN0538 |
