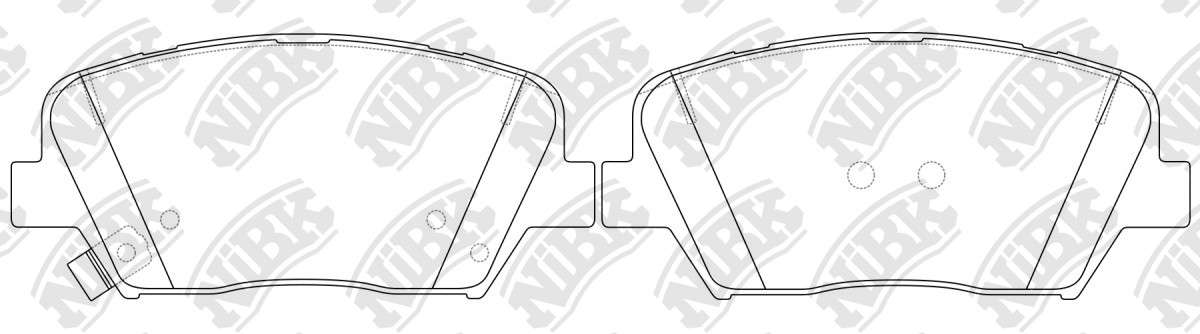

BRAKE PADS » PN0799
Specification
Length-1
132.8
Width-1
59.9
Length-2
132.8
Width-2
59.9
Thickness-1
16.5
Thickness-2
16.5
Pcs In Set
4
Cross Reference
FMSI
D1432-8549
FMSI
D1815-8549
FMSI
D1815-9049
FMSI
D2023-8549
FMSI
D2242-8549
HYUNDAI
58101-1UA11
HYUNDAI
58101-3VA90
HYUNDAI
58101-A0A00
HYUNDAI
58101-BWA10
HYUNDAI
58101-M5A00
HYUNDAI / KIA
58101-A0A00
HYUNDAI / KIA
58101-C6A00
HYUNDAI / KIA
58101-M5A10
HYUNDAI / KIA
58101-Q6A10
KASHIYAMA
D11366MH
KIA
58101-1UA10
KIA
58101-1UA50
KIA
58101-3TA10
KIA
58101-A4A01
KIA
58101-A4A11
KIA
58101-A4A15
KIA
58101-C6A00
WVA
25757
WVA
25758
WVA
25759
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.15~06.18 | 1400 | D4FC | PA016 RHD | RN1348V | PN0799 | FN0799 | ||
| 06.18~08.20 | 1400 | D4FC | PA018 RHD | RN1348V | PN0799 | FN0799 | ||
| 12.19~ | 1400 | G4LD | PFH20 | PN0799 | PN0538 | |||
| 12.19~ | 1500 | D4FA | PFH20 RHD | RN1348V | PN0799 | PN0538 | ||
| 12.19~ | 1500 | G4FL | PFH20 RHD | RN1348V | PN0799 | PN0538 | ||
| 07.15~06.18 | 1600 | D4FB | PA016 LHD | RN1348V | PN0799 | FN0799 | ||
| 07.15~06.18 | 1600 | G4FG | PA016 LHD | RN1348V | PN0799 | FN0799 | ||
| 07.15~06.18 | 1600 | G4FG | PA016 RHD | RN1348V | PN0799 | FN0799 | ||
| 06.18~08.20 | 1600 | G4FG | PA018 LHD | RN1348V | PN0799 | FN0799 | ||
| 06.18~08.20 | 1600 | G4FG | PA018 RHD | RN1348V | PN0799 | FN0799 | ||
| 07.21~ | 1600 | G4FG | PFZ21 | RN1348VRN1562V | PN0799PN0958 | RN1549RN2233RN1601 | PN0538 | |
| 12.19~ | 2000 | G4NL | PFH20 LHD GRAND 7P | RN1348V | PN0799 | |||
| 07.21~ | 2000 | G4NL | PFZ21 | RN1348V | PN0799 | RN2233RN1549RN1601 | PN0538 |
| 01.13~09.16 | 1600 | G4FD | HU81 RHD | RN1348V | PN0799 | RN1947 | PN0538 | |
| 12.12~08.16 | 1700 | D4FD | WAGON - 5DR 7P | RN1348V | PN0799 | RN1947 | PN0538 | |
| 01.13~ | 2000 | G4NA | MPV LHD | RN1348V | PN0537PN0799 | RN1947 | PN0538 | |
| 01.13~09.16 | 2000 | G4NC | HU | RN1348V | PN0799 | RN1947 | PN0538 | |
| 01.13~09.16 | 2000 | G4ND | RPA412 | RN1348V | PN0799 | RN1947 | PN0538 | |
| 01.13~09.16 | 2000 | L4NA | DOMPA412 | RN1348V | PN0799 | RN1947 | PN0538 |
| 06.19~ | 1400 | G4LD | PTI20 | RN1348V | PN0799 | RN1549 | PN0538 | |
| 06.19~ | 1600 | G4FG | PTI20 LHD | RN1348V | PN0799 | RN1549 | PN0538 | |
| 06.19~ | 1600 | G4FG | PTI20 RHD | RN1348V | PN0799 | RN1549 | PN0538 | |
| 06.19~ | 2000 | G4NH | PTH19 | RN1548VRN1653V | PN0578PN0799PN0373 | RN1549RN2229 | PN0538PN6136PN0436 |
| 08.14~04.18 | 2000 | G4KH | PC615 | RN1652V | PN0799 | RN1713 | PN0415 | FN0691 |
| 11.14~11.20 | 2400 | G4KE | UM | RN1652V | PN0799 | RN1713 | PN0415 | FN0691 |
| 11.14~04.18 | 2400 | G4KJ | PC615 | RN1652V | PN0799 | RN1713 | PN0415 | FN0691 |
| 11.17~11.20 | 2400 | G4KJ | PC618 | RN1652V | PN0799 | RN1713 | PN0415 | FN0691 |
| 07.12~12.14 | 2400 | G4KJ | XM | RN2206V | PN0537PN0799 | RN1712 | PN0415 | FN0691 |
| 11.14~10.20 | 3300 | G6DF | UM | RN1652V | PN0799 | RN1713 | PN0415 | FN0691 |
| 08.14~04.18 | 3300 | G6DH | PC615 | RN1652V | PN0799 | RN1713 | PN0415 | FN0691 |
| 11.09~04.13 | 3500 | G6DC | XMA09 | RN2206V | PN0799PN0537 | RN1712 | PN0415 | FN0664 |
