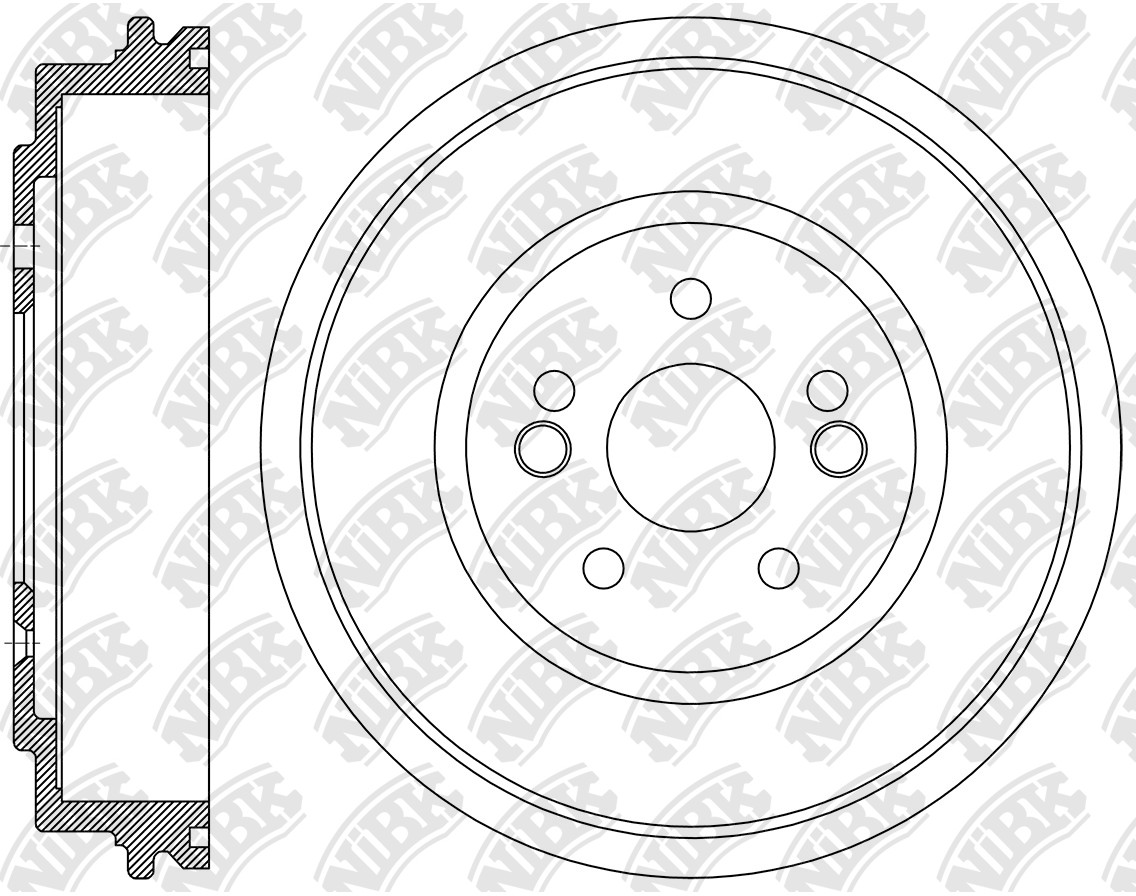

DRUM BRAKE » DN1503

DN1503

Specification

Outter Ø
245
Num. of holes
5
Hole Ø
12.5
Centering Diameter
76
Height
55.4
Pitch Circle Ø
114.3
Drum Ø
203
Structure Material
G3000

Cross Reference

HYUNDAI
58411-2H000
HYUNDAI / KIA
58411-2H000
HYUNDAI / KIA
58411-2H000-DS
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HYUNDAI   »   Avante / Elantra 06

11.06~09.11 1600 G4FC HD06 RHD RN1606V PN0377 DN1503RN1307 FN11189PN0539 FN11004
04.06~06.11 2000 G4GC PHD06 LHD US/CAN RN1606V PN0377 DN1503RN1307 PN0591FN11189 FN11004
04.06~06.11 2000 G4GC PHD06 RHD RN1606V PN0377 DN1503RN1307 PN0539FN11189 FN11004

KIA   »   Cerato

01.08~04.13 1600 G4FC FU41 SDN RHD RN1412V PN0373 RN1786DN1503 FN0801PN0436 FN0680

KIA   »   Forte

05.08~09.13 1600 G4FC TD08 SDN KDOM RN1412V PN0373 RN1786DN1503 PN0436FN0801 FN0680

KIA   »   Soul

10.08~01.14 1600 D4FB AM RN1412V PN0630PN0377 DN1503RN1786 PN0591FN11189 FN0661
10.08~01.14 1600 G4FC PAM08 LHD RN1412V PN0377 DN1503 FN11189
10.08~01.14 1600 G4FC PAM08 LHD RUS RN1412V PN0377 RN1786DN1503 PN0591FN11189 FN0661
10.08~01.14 1600 G4FC PAM08 RHD RN1412V PN0377 RN1786DN1503 PN0591FN11189 FN0661
08.13~01.17 1600 G4FG PB213 RHD RN1562V PN0373 DN1503
10.08~01.14 2000 G4GC AM RN1412V PN0377PN0630 DN1503RN1786 PN0591FN11189 FN0661
