ROTOR DISC » RN1549

RN1549

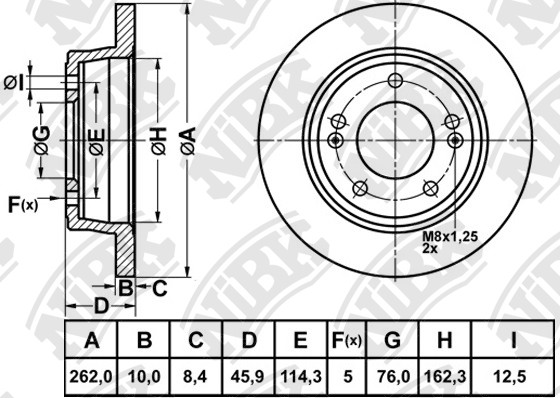

Specification

Type
Solid
Outter Ø
262
Num. of holes
5
Disc Thickness (Max)
10
Height
45.9
Centering Diameter
76
Pitch Circle Ø
114.3
Front/Rear
Rear
Drum Ø:
162
Disc Thickness (Min)
8.4
Structure Material
G3000

Cross Reference

HYUNDAI
58411-3Y300
HYUNDAI
58411-A6300
HYUNDAI / KIA
58411-3X300
KIA
58411-3X300
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HYUNDAI   »   Avante / Elantra 11

08.10~08.13 1600 G4FD PSD11 LHD KDOM RN1548V PN0537 RN1549 PN0538
01.10~12.13 1600 G4FG PSD11 LHD RN1548V PN0537 RN1549DN1106 FN0609PN0538
01.10~01.15 1600 G4FG PSD11 RHD RN1548V PN0537 RN1549DN1106 FN0609PN0538
09.11~07.13 1800 G4NB PSD11 LHD RN1548V PN0537 RN1549DN1106 PN0538FN0609

HYUNDAI   »   Avante / Elantra 14

08.13~08.15 1600 D4FB MD RN1548V PN0537 RN1549 PN0538
07.13~09.15 1600 G4FG MD RN1548V PN0537 RN1549 PN0538
07.13~09.15 1800 G4NB MD RN1548V PN0537 RN1549 PN0538
01.14~01.16 1800 G4NB PSDA14 US RN1548V PN0537 RN1549 PN0538
07.13~09.15 2000 G4NA MD RN1548V PN0537 RN1549 PN0538

HYUNDAI   »   Avante / Elantra 16

09.15~07.19 1600 D4FB AD RN1548V PN0772 RN1549 PN0538
09.15~07.19 1600 D4FB RPF216 RN1548V PN0772 RN1549DN1106 PN0538FN0609
09.15~07.19 1600 G4FG PF216 LHD RN1548V PN0772 RN1549 PN0538
09.15~07.19 1600 G4FG PF216 RHD RN1548V PN0772 DN1106RN1549 FN0609PN0538
09.15~07.19 1600 L4FA PF216 RN1548V PN0772 RN1549DN1106 PN0538FN0609
09.15~07.19 2000 G4NA AD RN1548V PN0772 RN1549 PN0538

HYUNDAI   »   Avante / Elantra 19

08.18~08.20 1600 G4FG PF219 RHD RN1548V PN0772 RN1549 FN0609PN0538
08.18~08.20 2000 G4NA PF219 RHD RN1548V PN0772 RN1549 FN0609PN0538
08.18~08.20 2000 G4NH AD RN1548V PN0772 RN1549 FN0609PN0538

HYUNDAI   »   Creta

08.16~05.21 1600 G4FG M017 RU RN1548VRN1348V PN0373 RN2086RN1549 PN0436
07.21~ 1600 G4FG PFZ21 RN1348VRN1562V PN0799PN0958 RN1549RN2233RN1601 PN0538
08.16~05.21 2000 G4NA M017 RU RN1348V PN0373 RN2086RN1549 PN0436
03.20~10.21 2000 G4NA M017 RU RN1548VRN1348V PN0373 RN2086RN1549 PN0436
07.21~ 2000 G4NL PFZ21 RN1348V PN0799 RN2233RN1549RN1601 PN0538

HYUNDAI   »   Elantra

09.15~ 1600 G4FG AD LHD PR RN1548V PN0772 RN1549DN1106 FN0609PN0538
08.18~08.20 1600 G4FG PF219 LHD RN1548V PN0772 RN1549 PN0538
02.19~ 2000 G4NH PF319 MEX RN1548V PN0772 RN1549 PN0538

HYUNDAI   »   i30

01.15~07.17 1600 D4FB PA616 5DR RHD RN1562V PN0592PN0537 RN1549 PN0538
09.11~03.15 1600 G4FD D351 RN1562VRN1547V PN0537PN11001 RN1549RN1563 PN0538
09.11~04.15 1600 G4FD PA612 5DR RN1562V PN0537 RN1549 PN0538
04.15~02.17 1600 G4FG D351 RN1562V PN0537 RN1549 PN0538
09.11~03.15 1600 G4FG D351 5DR RHD RN1548V PN0537 RN1549 PN0538
01.12~03.15 1600 G4FG PA612 3DR RN1562V PN0537 RN1549 PN0538
01.15~07.17 1600 G4FG PA616 5DR LHD RN1562V PN0537 RN1549 PN0538
01.15~07.17 1600 G4FJ PA616 5DR LHD RN1547VRN1562V PN0739 RN1549 PN0538
09.11~03.15 1800 G4NB PA512 RHD RN1548V PN0537 RN1549 PN0538

HYUNDAI   »   Kona

09.20~ 1000 G3LE PJ921 RHD RN1548V PN0373 RN1549 PN0436
08.18~ 1600 D4FE RN1653VRN1644V PN0052PN0373 RN1549RN2229 PN0436
07.17~ 1600 G4FJ RN1653VRN1644V PN0052 RN1549RN2229 PN0436
06.17~ 2000 G4NH PJ918 LHD US RN1653V PN0578PN0373 RN2229RN1549 PN0436
09.20~ 2000 G4NS PJ921 LHD RN1548V PN0373 RN1549 PN0436

HYUNDAI   »   Kona / Kauai

07.17~09.20 1000 G3LC PJ918 RN1548VRN1653V PN0052PN0373 RN1549 PN0436

HYUNDAI   »   Veloster

01.12~01.15 1600 G4FD TC61D RN1548V PN0537 RN1549 PN0538
01.15~02.18 1600 G4FD TC6AD RN1548V PN0537 RN1549 PN0538
03.11~01.15 1600 G4FD TE61D RN1548V PN11001PN0537 RN1549 PN0538
01.12~01.15 1600 G4FG TC61C RN1548V PN0537PN11001 RN1549 PN0538
03.11~01.15 1600 G4FJ PGS11 RHD SG RN1547V PN11001 RN1549 PN0538
03.11~01.15 1600 G4FJ PGS11 US RN1348V PN11001PN0739 RN1549 PN0538
01.15~01.18 1600 G4FJ PGS15 RHD SG RN1547V PN11001 RN1549 PN0538
01.15~02.18 1600 G4FJ PGS15 US RN1348V PN0739 RN1549 PN0538

HYUNDAI   »   Venue

04.19~ 1600 G4FG PSN19 LHD CHL RN1548V PN0958 RN1549 PN0538
04.19~ 1600 G4FG PSN19 RHD RN1548V PN0958 RN1549 PN0538
04.19~ 1600 G4FM PSN19 RHD RN1548V PN0958 RN1549 PN0538
09.19~ 1600 G4FM QXI RN1548V PN0958 RN1549 PN0538

KIA   »   Cee'd

05.15~07.18 1000 G3LC HB/SW/PRO RN1348VRN1562V PN11001PN0537PN0592 RN1563RN1549 PN0538PN6148
03.12~07.18 1400 D4FC HB/SW/PRO RN1562VRN1348V PN0592PN11001PN0537 RN1563RN1549 PN6148PN0538
03.12~07.18 1600 D4FB HB/SW/PRO RN1348VRN1562V PN11001PN0592PN0537 RN1549RN1563 PN6148PN0538

KIA   »   Cee'd 12

03.12~08.15 1400 G4FA PA212 HB LHD RN1548V PN0537 RN1549 PN6148
03.12~07.15 1600 G4FD PA212 WGN LHD RN1548V PN0537 RN1549 PN6148
03.12~07.15 1600 G4FG PA212 HB LHD RN1548V PN0537 RN1549 PN6148

KIA   »   Cee'd 16

05.15~07.18 1400 G4LC A216 RN1562V PN0537 RN1549 PN6148
05.15~07.18 1600 G4FD A216 RN1562V PN0537 RN1549 PN6148
05.15~07.18 1600 G4FG A216 RN1547V PN0739 RN1549 PN6148

KIA   »   Cee'd SW

03.12~07.15 1600 G4FC A212 RN1548V PN0537 RN1563RN1549 PN0538PN6148
05.15~07.18 1600 G4FD A216 RN1562V PN0537 RN1549 PN6148PN0538

KIA   »   Cerato 18

01.18~04.21 1600 G4FG SEDAN - 4DR 5P LHD PR RN1562V PN0373 DN1106RN1549 FN0819PN0538
01.18~04.21 1600 G4FG SEDAN - 4DR 5P RHD RN1562V PN0373 RN1549DN1106 FN0819PN0538
02.18~ 2000 G4NA SDN VTN RN1562V PN0373 RN1549 PN0538FN0797
01.18~04.21 2000 G4NA SEDAN - 4DR 5P RUS RN1562V PN0373 RN1549 PN0538FN0819

KIA   »   Cerato 21

04.21~ 1600 G4FG PM621 SDN RHD RN1562V PN0373 RN1549DN1106 PN0538FN0819
04.21~ 2000 G4NA PM621 RU RN1562V PN0373 RN1549 PN0538

KIA   »   Cerato III Forte Coupe

01.13~03.16 1600 G4FJ FZ61 LHD RN1348V PN0739 RN1549 PN0538
01.13~03.16 1600 G4FJ FZ61 RHD RN1348V PN0739 RN1549 PN0538
01.13~03.16 2000 G4NA FZ61 COUPE RHD RN1562V PN0537 RN1549 PN0538

KIA   »   Cerato III Forte Sedan

06.13~02.16 1600 F4FA FZ414 RN1562V PN0537 RN1549 PN0538
01.14~ 1600 G4FC SDN LHD RN1562V PN0537 RN1549DN1106 PN0538FN0797
06.12~03.16 1600 G4FG F#411 SDN LHD RN1562V PN0537 DN1106RN1549 FN0797PN0538
09.11~03.16 1600 G4FG F#411 SDN LHD RUS RN1562V PN0537 RN1549 PN0538
04.13~03.16 1600 G4FG F#411 SDN RHD RN1562V PN0537PN0739 RN1549 PN0538FN0797
01.13~03.16 1600 G4FG FX41 RN1562V PN0739PN0537 RN1549 PN0538FN0797
12.12~11.16 1600 G4FG FX41 RHD RN1562V PN0739PN0537 DN1106RN1549 PN0538FN0797
01.13~03.16 1600 G4FG FZ511 5DR HB RN1562V PN0537 RN1549 PN0538
01.16~03.18 1600 G4FG SA716 RN1562V PN0537PN0592 DN1106RN1549 FN0797PN0538
08.12~03.16 2000 G4NA FK41 SDN LHD RN1562V PN0537 RN1549 PN0538
01.15~04.21 2000 G4NA VTN RN1562V PN0537 RN1549 PN0538

KIA   »   Cerato III Forte Sedan 16

03.16~08.20 1600 D4FB YD RN1562V PN0592PN0537 RN1549DN1106 FN0797PN0538
03.16~08.20 1600 G4FG F#411 SDN RHD RN1562V PN0592PN0537 RN1549 PN0538
03.16~08.20 1600 G4FG FZ511 RN1562V PN0537PN0592 RN1549 PN0538
04.15~06.18 2000 G4NA FK51 HB AU RN1562V PN0592 RN1549 PN0538
03.16~08.20 2000 G4NA YD SDN RU RN1562V PN0592 RN1549 PN0538

KIA   »   Forte

02.13~02.16 1800 G4NB FX4A SDN US RN1562VRN1348V PN0537PN0739 RN1549 PN0538
04.15~06.18 2000 G4NA FK4A SDN US RN1562V PN0592PN0537 RN1549 PN0538

KIA   »   K3

01.16~02.20 1600 G4FD COUPE VTN RN1562V PN0739PN0537 RN1549 FN0797PN0538
04.13~03.16 1600 G4FG F#411 SDN RHD SG RN1562V PN0537PN0739 RN1549 FN0797PN0538
12.12~02.18 1600 G4FG FX41 RHD RN1562V PN0739PN0537 RN1549DN1106 PN0538FN0797
01.18~ 1600 G4FG SEDAN - 4DR 5P RN1562V PN0373 RN1549 FN0819PN0538
12.12~02.18 1600 G4FJ FZ41 RN1562V PN0739PN0537 RN1549 PN0538FN0797
01.18~04.21 1600 G4FM PM618 SDN LHD RN1562V PN0373 RN1549 PN0538
04.21~ 1600 G4FM PM621 SDN LHD RN1562V PN0373 RN1549RN1601 PN0538
12.12~02.18 2000 G4NA FZ41 RN1562V PN0537 RN1549 PN0538

KIA   »   Pro Cee'd

03.12~07.15 1600 G4FC A212 RN1548V PN0537 RN1549 PN6148

KIA   »   Seltos

06.19~ 1400 G4LD PTI20 RN1348V PN0799 RN1549 PN0538
06.19~ 1600 G4FG PTI20 LHD RN1348V PN0799 RN1549 PN0538
06.19~11.20 1600 G4FG PTI20 RHD RN1348V PN0799 RN1549 PN0538
06.19~ 2000 G4NH PTH19 RN1548VRN1653V PN0578PN0799PN0373 RN2229RN1549 PN6136PN0436PN0538

KIA   »   Soul

08.13~01.17 1600 D4FB PS RN1412V PN0704 RN1549
08.13~01.17 1600 G4FD PB213 US RN1562V PN0373 RN1549 PN0538
08.16~01.19 1600 G4FG PB216 RHD RN1562V PN0373 RN1549 PN0538
12.17~ 1600 G4FG PSK19 RUS RN1412V PN0958 RN1549 PN0538
08.13~01.17 1600 G4FG SPB213 LHD RN1412VRN1562V PN0373PN0704 RN1549 PN0538
08.16~01.19 1600 G4FG SPB216 LHD RN1547VRN1412V PN0704 RN1549 PN0538
11.18~ 2000 G4NA PSK19 RN1412V PN6128PN0958 RN1549 PN0538
08.13~01.17 2000 G4NA WAGON - 5DR 5P RN1562V PN0373 RN1549 PN0538
08.13~01.17 2000 G4NC WAGON - 5DR 5P RN1562V PN0373 RN1549 PN0538
