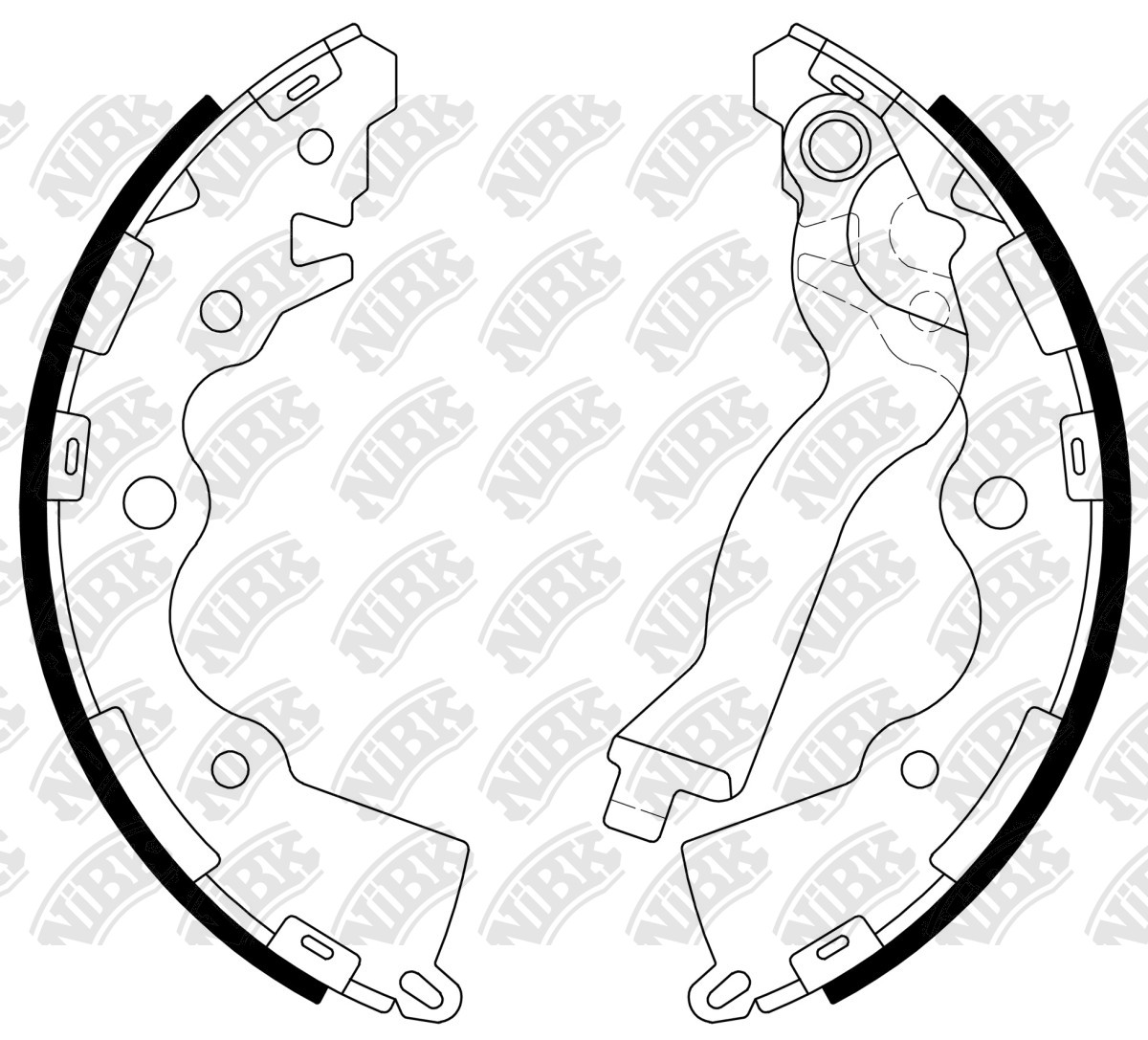

BRAKE SHOE » FN0797
Specification
Radius
101.5
Width
32
Pcs In Set
4
Variation
Cross Reference
FMSI
S910-1616
HYUNDAI
58305-1GA00
HYUNDAI
58305-1SA00
KASHIYAMA
K11221
KIA
58305-1GA00
KIA
58350-A7A00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.05~08.11 | 1400 | G4EE | CM41 RHD | RN1370V | PN0435 | DN1447 | FN0617 | |
| 03.06~08.11 | 1400 | G4EE | CN31 RHD 3DR | RN1370V | PN0435 | RN1778DN1447 | FN0617PN0436 | FN0680 |
| 03.06~08.11 | 1400 | G4EE | MC | RN1370V | PN0435 | DN1447RN1778 | PN0436FN0617 | |
| 03.06~08.11 | 1600 | G4ED | CN41 SDN RHD | RN1370V | PN0435 | DN1447RN1778 | FN0617PN0436 | FN0680 |
| 03.06~08.11 | 1400 | G4EE | CM41 LHD | RN1370V | PN0435 | DN1447 | FN0617 | |
| 03.06~08.11 | 1500 | D4FA | MC | RN1370V | PN0435 | DN1447RN1778 | FN0617PN0436 | |
| 03.06~08.11 | 1600 | G4ED | HB LHD | RN1370V | PN0435 | DN1447RN1778 | PN0436FN0617 |
| 01.14~ | 1600 | G4FC | SDN LHD | RN1562V | PN0537 | RN1549DN1106 | PN0538FN0797 | |
| 06.12~03.16 | 1600 | G4FG | F#411 SDN LHD | RN1562V | PN0537 | RN1549DN1106 | PN0538FN0797 | |
| 04.13~03.16 | 1600 | G4FG | F#411 SDN RHD | RN1562V | PN0537PN0739 | RN1549 | PN0538FN0797 | |
| 01.13~03.16 | 1600 | G4FG | FX41 | RN1562V | PN0739PN0537 | RN1549 | PN0538FN0797 | |
| 12.12~11.16 | 1600 | G4FG | FX41 RHD | RN1562V | PN0739PN0537 | RN1549DN1106 | PN0538FN0797 | |
| 01.16~03.18 | 1600 | G4FG | SA716 | RN1562V | PN0537PN0592 | DN1106RN1549 | PN0538FN0797 |
| 03.16~08.20 | 1600 | D4FB | YD | RN1562V | PN0592PN0537 | DN1106RN1549 | FN0797PN0538 | |
| 03.16~08.20 | 1600 | G4FG | F#411 SDN LHD | RN1562V | PN0592PN0537 | DN1106 | FN0797 |
| 01.16~02.20 | 1600 | G4FD | COUPE VTN | RN1562V | PN0537PN0739 | RN1549 | PN0538FN0797 | |
| 04.13~03.16 | 1600 | G4FG | F#411 SDN RHD SG | RN1562V | PN0739PN0537 | RN1549 | FN0797PN0538 | |
| 12.12~02.18 | 1600 | G4FG | FX41 RHD | RN1562V | PN0537PN0739 | RN1549DN1106 | FN0797PN0538 | |
| 12.12~02.18 | 1600 | G4FJ | FZ41 | RN1562V | PN0537PN0739 | RN1549 | PN0538FN0797 |
| 11.05~09.11 | 1400 | G4EE | DE22 | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0617 | FN0680 |
| 01.05~09.11 | 1400 | G4EE | DE24 | RN1370V | PN0435 | DN1447 | FN0617 | |
| 03.05~01.12 | 1400 | G4EE | DF41 SDN LHD | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0617 | |
| 09.09~08.11 | 1400 | G4EE | DG41 SDN RHD | RN1370V | PN0435 | DN1447 | FN0617 | |
| 09.06~10.10 | 1400 | G4EE | DH41 SDN RHD | RN1370V | PN0435 | DN1447RN1778 | PN0436FN0617 | |
| 03.05~01.12 | 1400 | G4EE | DH51 HB RHD | RN1370V | PN0435 | DN1447 | FN0617 | |
| 03.05~01.12 | 1400 | G4EE | HB LHD | RN1370V | PN0435 | DN1447 | FN0617 | |
| 09.09~08.11 | 1500 | D4FA | EX | PN0435 | PN0436FN0617FN0680 | |||
| 03.05~09.09 | 1500 | D4FA | TC05 HB LHD | RN1370V | PN0435 | DN1447 | PN0436FN0617 | |
| 11.05~09.11 | 1600 | G4ED | DE22 | RN1370V | PN0435 | RN1778DN1447 | PN0436FN0617 | FN0680 |
| 01.05~09.11 | 1600 | G4ED | DE24 | RN1370V | PN0435 | DN1447 | FN0617 |
