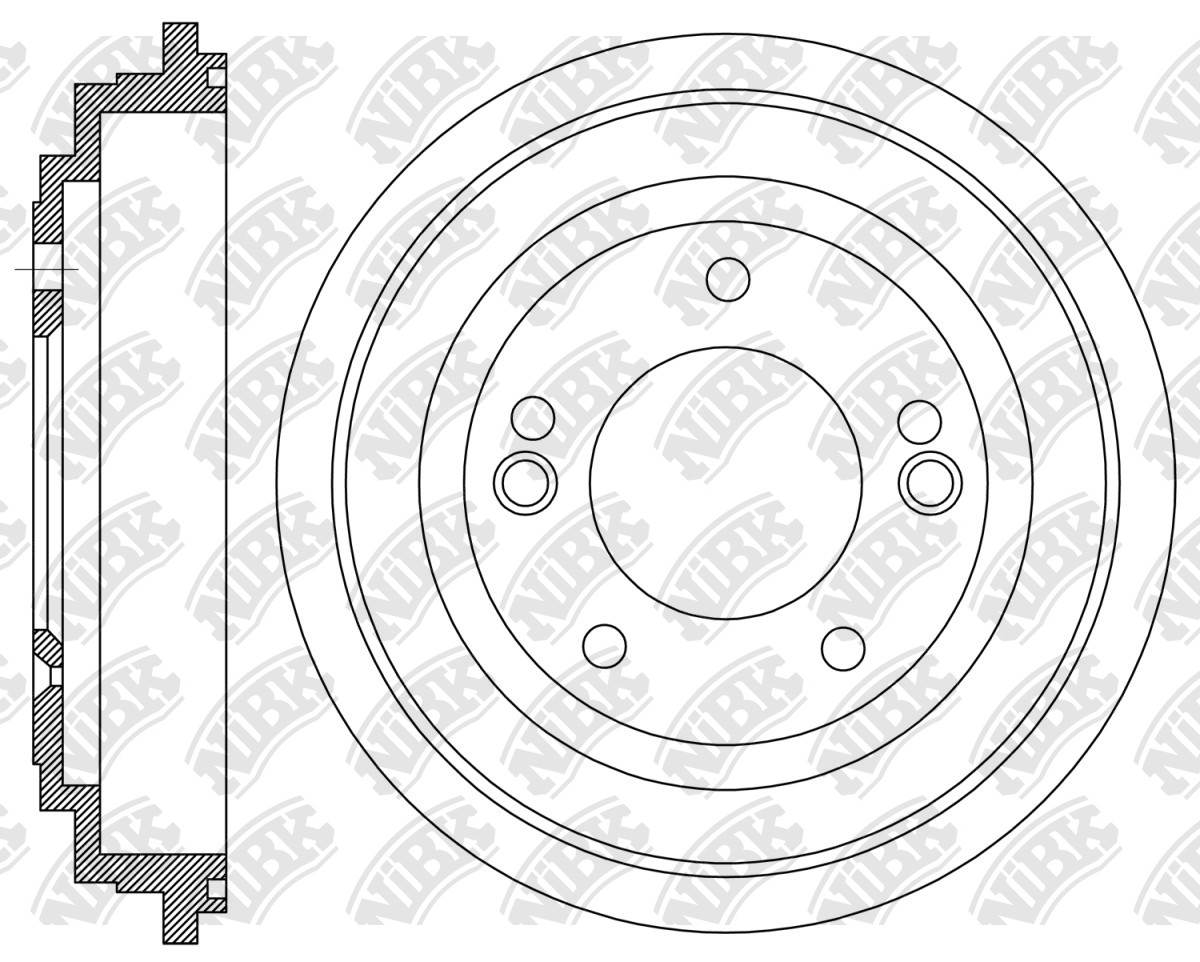

DRUM BRAKE » DN1106
Specification
Outter Ø
252.5
Num. of holes
5
Centering Diameter
76
Height
53.9
Pitch Circle Ø
114.3
Drum Ø
203
Structure Material
G3000
Hole Ø
12.5
Cross Reference
HYUNDAI
58411-3X000
KIA
58411-3X000
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.10~12.13 | 1600 | G4FG | PSD11 LHD | RN1548V | PN0537 | RN1549DN1106 | FN0609PN0538 | |
| 01.10~01.15 | 1600 | G4FG | PSD11 RHD | RN1548V | PN0537 | RN1549DN1106 | FN0609PN0538 | |
| 09.11~07.13 | 1800 | G4NB | PSD11 LHD | RN1548V | PN0537 | RN1549DN1106 | PN0538FN0609 |
| 09.15~07.19 | 1600 | D4FB | RPF216 | RN1548V | PN0772 | RN1549DN1106 | FN0609PN0538 | |
| 09.15~07.19 | 1600 | G4FG | PF216 RHD | RN1548V | PN0772 | RN1549DN1106 | FN0609PN0538 | |
| 09.15~07.19 | 1600 | L4FA | PF216 | RN1548V | PN0772 | RN1549DN1106 | FN0609PN0538 | |
| 02.16~02.19 | 2000 | G4NH | PF316 US | RN1548V | PN0772 | DN1106 | FN0609 |
| 09.15~ | 1600 | G4FG | AD LHD PR | RN1548V | PN0772 | RN1549DN1106 | PN0538FN0609 | |
| 01.16~02.19 | 2000 | G4NH | PF316 US | RN1548V | PN0772 | DN1106 | FN0609 |
| 01.18~04.21 | 1600 | G4FG | SEDAN - 4DR 5P LHD PR | RN1562V | PN0373 | RN1549DN1106 | FN0819PN0538 | |
| 01.18~04.21 | 1600 | G4FG | SEDAN - 4DR 5P RHD | RN1562V | PN0373 | DN1106RN1549 | FN0819PN0538 |
| 04.21~ | 1600 | G4FG | PM621 SDN RHD | RN1562V | PN0373 | RN1549DN1106 | PN0538FN0819 | |
| 04.21~ | 2000 | G4NA | PM621 SDN GCC | RN1562V | PN0373 | DN1106 | FN0819 |
| 01.14~ | 1600 | G4FC | SDN LHD | RN1562V | PN0537 | RN1549DN1106 | FN0797PN0538 | |
| 06.12~03.16 | 1600 | G4FG | F#411 SDN LHD | RN1562V | PN0537 | RN1549DN1106 | PN0538FN0797 | |
| 12.12~11.16 | 1600 | G4FG | FX41 RHD | RN1562V | PN0537PN0739 | RN1549DN1106 | FN0797PN0538 | |
| 01.16~03.18 | 1600 | G4FG | SA716 | RN1562V | PN0537PN0592 | DN1106RN1549 | FN0797PN0538 |
