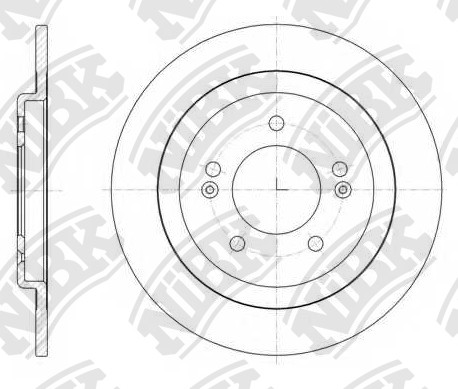

ROTOR DISC » RN1563

Specification

Type
Solid
Outter Ø
284
Num. of holes
5
Disc Thickness (Max)
10
Height
26
Centering Diameter
76
Pitch Circle Ø
114.3
Front/Rear
Rear
Drum Ø:
155
Disc Thickness (Min)
8.4
Structure Material
G3000

Cross Reference

HYUNDAI
58411-A6200
KIA
58411-A6200
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.11~02.17 1400 D4FC GD PN0739 RN1563
09.11~03.15 1600 G4FD D351 RN1562VRN1547V PN0537PN11001 RN1549RN1563 PN0538
03.12~07.15 1600 D4FB PA212 HB ER RN1547V PN0739PN11001 RN1563 PN0538
03.12~07.15 1600 G4FD PA212 HB LHD RN1548V PN0537 RN1563 PN0538
05.15~07.18 1400 G4FA A216 RN1562V PN0537PN0739 RN1563 PN0538PN6148
03.12~07.15 1600 G4FC A212 RN1548V PN0537 RN1563RN1549 PN6148PN0538

Exemption from liability: the catalog data is advisory and can be used for reference only
