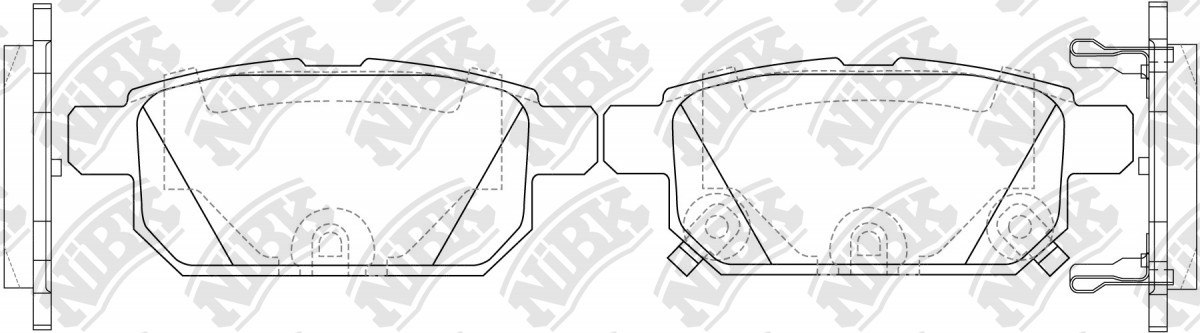

BRAKE PADS » PN9808
Specification
Length-1
98.5
Width-1
40
Thickness-1
14.4
Pcs In Set
4
Cross Reference
AKEBONO
AN-773WK
BENDIX AUS
DB2364
FMSI
D2007
FMSI
D2007-9237
KASHIYAMA
D9066M
KASHIYAMA
D9066M-02
NISSAN
D4M60-3AW0A
SUZUKI
55800-61M00
SUZUKI
55800-61M01
SUZUKI
55800-61M02
SUZUKI
55800-61M10
SUZUKI
55800-61M10-000
SUZUKI
55800-61M11
SUZUKI
55800-68L00
SUZUKI
55800-68L10
SUZUKI
55800-68L20
SUZUKI
5580052R00
SUZUKI
5580052R01
SUZUKI
5580068L00-000
SUZUKI
5580068R00
SUZUKI
5580068R10
SUZUKI
55910-M68P01
SUZUKI
55910M68P00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 02.16~01.22 | 1000 | K10C | WB42S | RN2393V | PN5562 | RN2394 | PN9808FN9805 | |
| 02.16~01.22 | 1200 | K12C | WB32S | RN2393V | PN5562 | RN2394 | PN9808FN9805 | |
| 02.16~01.22 | 1400 | K14B | WB52S LHD | RN2393V | PN5562 | RN2394 | FN9805PN9808 | |
| 02.16~01.22 | 1400 | K14B | WB52S RHD | RN2393V | PN5562 | RN2394 | FN9805PN9808 |
| 07.17~ | 1400 | K14C | YEA1S | PN9809 | PN9808 | |||
| 10.15~ | 1600 | M16A | YD21S | PN9809 | PN9808 | |||
| 10.15~ | 1600 | M16A | YE21S | PN9809 | PN9808 |
| 09.10~11.16 | 1200 | K12B | ZC72S JPN | RN29001VRN2245V | PN9529 | RN1955DN1369 | PN9808FN9991 | |
| 10.09~03.13 | 1200 | K12B | ZC72S LHD | RN29001V | PN5562 | RN1955DN1369 | PN9808FN9991 | |
| 03.13~02.17 | 1200 | K12B | ZC72S LHD | RN29001V | PN5562 | RN1955DN1369 | FN9991PN9808 | |
| 09.10~01.17 | 1200 | K12B | ZD72S JPN | RN29001V | PN5562 | RN1955 | PN9808 | |
| 12.12~ | 1400 | K14 | AZF414 | RN2245V | PN9529PN5562 | RN1955DN1422 | FN9991PN9808 | |
| 03.10~ | 1400 | K14B | AZG414 | RN29001V | PN5562 | RN1955RN1693DN1369 | FN9991PN9808 | |
| 03.10~ | 1400 | K14B | ZC82S LHD | RN29001VRN2245V | PN5562PN9529 | DN1369RN1955RN1693 | FN9991PN9808 | |
| 03.10~03.13 | 1400 | K14B | ZC82S RHD | RN29001V | PN5562 | DN1369RN1693RN1955 | PN9808FN9991 | |
| 03.13~02.17 | 1400 | K14B | ZC82S RHD | RN29001VRN2245V | PN5562PN9529 | DN1369RN1955RN1693 | PN9808FN9991 | |
| 12.11~ | 1600 | M16A | EZC32S | RN2449V | PN5562 | RN1955RN1693DN1369 | PN9808FN9991 | |
| 10.09~02.13 | 1600 | M16A | ZA32S LHD | RN2449V | PN5562 | DN1369RN1955RN1693 | FN9991PN9808 | |
| 10.09~02.13 | 1600 | M16A | ZC32S LHD PR | RN2449V | PN5562 | RN1693DN1369RN1955 | PN9808FN9991 | |
| 12.11~ | 1600 | M16A | ZC3B | RN2449V | PN5562 | RN1955RN1693 | PN9808 |
| 12.16~ | 1000 | K10C-T | A2L310 RHD | RN2393V | PN5562 | RN2394 | PN9808 | |
| 12.16~ | 1000 | K10C-T | ZC13S JPN | RN2393V | PN5562 | RN2394 | PN9808 | |
| 12.16~ | 1200 | K12B | ZC53S | RN29001V | PN5544 | RN1955 | PN9808 | |
| 07.17~ | 1200 | K12C | ZC43S | PN5562 | PN9808FN9806 | |||
| 01.20~ | 1200 | K12D | A2L412-4 RHD | PN5562 | RN2394 | PN9808 | ||
| 01.17~ | 1200 | K12MS | ZC63S LHD | RN2393VRN2461V | PN5562PN9812 | RN2394 | PN9808FN9806 | |
| 01.17~ | 1400 | K14C | A2L414 LHD | RN2395V | PN5562 | RN2396 | PN9808 | |
| 09.17~ | 1400 | K14C | ZC33S JPN | RN2395V | PN5562 | RN2396 | PN9808 | |
| 01.20~ | 1400 | K14D | A2L414-4 RHD | RN2395V | PN5562 | RN2396 | PN9808 |
| 08.16~ | 1000 | K10C | AKK310# | RN1692V | PN9809 | RN1693 | PN9808 | |
| 08.16~ | 1400 | K14C | AKK414# | RN1692V | PN9809 | RN1693 | PN9808 | |
| 08.13~ | 1600 | D16AA | AKK416D# | PN9809 | PN9808 | |||
| 12.13~ | 1600 | M16A | JYB22S LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 01.16~ | 1600 | M16A | YA22S LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 12.13~ | 1600 | M16A | YA22S RHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 12.13~01.16 | 1600 | M16A | YB22S RHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 01.16~ | 1600 | M16A | YB22S RHD | RN1692V | PN9809 | RN1693 | PN9808 |
| 02.18~ | 1000 | K10C-T | APK310 | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.14~10.18 | 1400 | K14C | APK414 | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.18~ | 1400 | K14C | APK414-3 LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 02.18~ | 1400 | K14C | APK414-3 RHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 02.18~ | 1400 | K14D | APK414-3 LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.14~10.18 | 1600 | D16AA | APK416D | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.14~10.18 | 1600 | M16A | APK416 | RN1692V | PN9809 | RN1693 | PN9808 | |
| 10.18~ | 1600 | M16A | APK416-3 LHD | RN1692V | PN9809 | RN1693 | PN9808 | |
| 02.18~ | 1600 | M16A | APK416-3 RHD | RN1692V | PN9809 | RN1693 | PN9808 |
