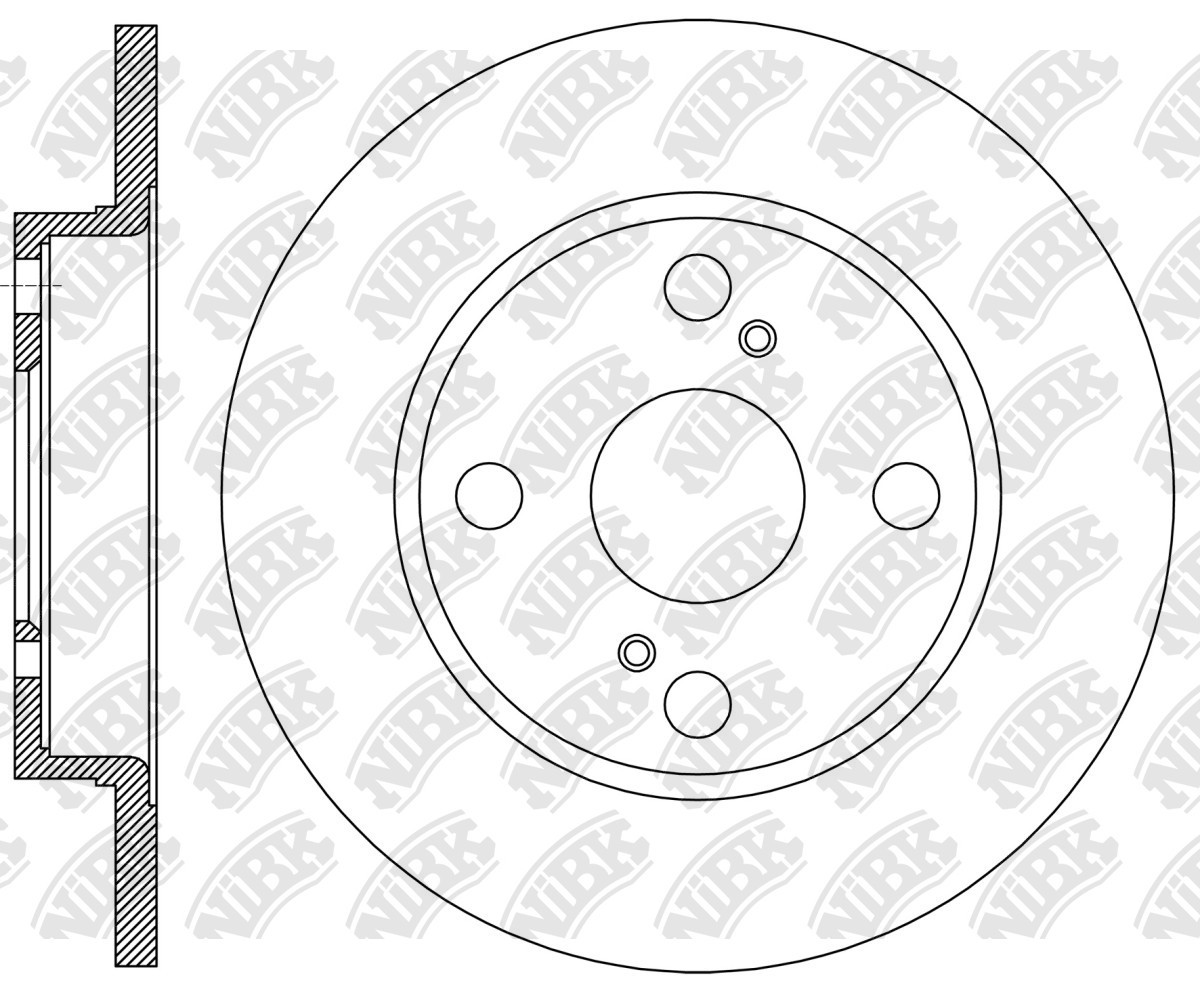

ROTOR DISC » RN2394

RN2394

Specification

Type
Solid
Outter Ø
228
Num. of holes
4
Hole Ø:
12.7
Disc Thickness (Max)
9
Disc Thickness (Min)
8
Height
34.2
Centering Diameter
62
Pitch Circle Ø
100
Drum Ø:
127
Front/Rear
Rear
Structure Material
G3000

Cross Reference

SUZUKI
55611-52R00
SUZUKI
55611-52R01
SUZUKI
55611-M68P00
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

MARUTI SUZUKI   »   BALENO

01.15~ 1400 K14B WB52S RHD RN2393V PN5562 RN2394 PN9808FN9805

SUZUKI   »   Baleno

02.16~01.22 1000 K10C WB42S RN2393V PN5562 RN2394 FN9805PN9808
02.16~01.22 1200 K12C WB32S RN2393V PN5562 RN2394 PN9808FN9805
02.16~01.22 1400 K14B WB52S LHD RN2393V PN5562 RN2394 FN9805PN9808
02.16~01.22 1400 K14B WB52S RHD RN2393V RN2394 FN9805
02.16~01.22 1400 K14B WB52S RHD RN2393V PN5562 RN2394 FN9805PN9808

SUZUKI   »   Baleno/Esteem

02.16~01.22 1400 K14B WB52S RN2393V PN5562 RN2394 FN9805PN9808

SUZUKI   »   Swift V

12.16~ 1000 K10C-T A2L310 RHD RN2393V PN5562 RN2394 PN9808
12.16~ 1000 K10C-T ZC13S JPN RN2393V PN5562 RN2394 PN9808
01.20~ 1200 K12D A2L412-4 RHD PN5562 RN2394 PN9808
01.17~ 1200 K12MS ZC63S LHD RN2393VRN2461V PN5562PN9812 RN2394 FN9806PN9808
