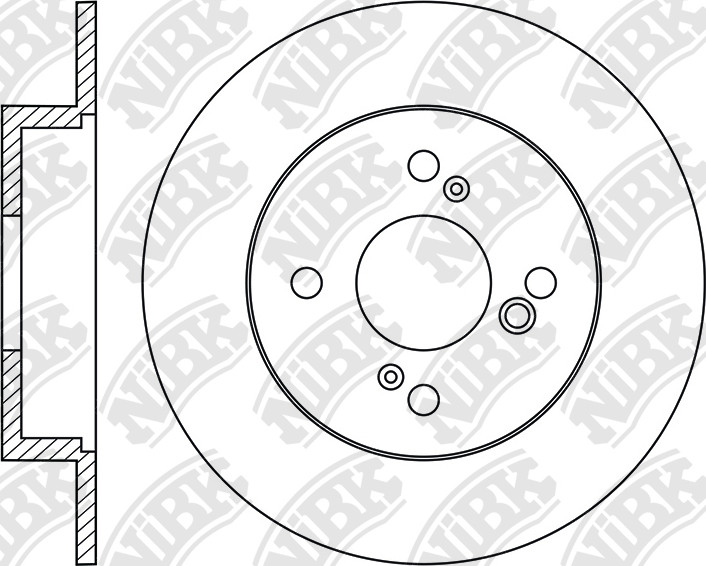

ROTOR DISC » RN1955
Specification
Type
Solid
Outter Ø
259
Num. of holes
4
Disc Thickness (Max)
9
Height
43.2
Centering Diameter
62
Pitch Circle Ø
100
Drum Ø:
150
Disc Thickness (Min)
8
Structure Material
G3000
Cross Reference
SUZUKI
55611-58M00
SUZUKI
55611-61M10
SUZUKI
55611-68L00
SUZUKI
55611-68L00-000
SUZUKI
55611-71L00
SUZUKI
55611-71L01
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.10~11.16 | 1200 | K12B | ZC72S JPN | RN29001VRN2245V | PN9529 | RN1955DN1369 | PN9808FN9991 | |
| 10.09~03.13 | 1200 | K12B | ZC72S LHD | RN29001V | PN5562 | RN1955DN1369 | FN9991PN9808 | |
| 03.13~02.17 | 1200 | K12B | ZC72S LHD | RN29001V | PN5562 | RN1955DN1369 | FN9991PN9808 | |
| 09.10~01.17 | 1200 | K12B | ZD72S JPN | RN29001V | PN5562 | RN1955 | PN9808 | |
| 12.12~ | 1400 | K14 | AZF414 | RN2245V | PN5562PN9529 | RN1955DN1422 | PN9808FN9991 | |
| 03.10~ | 1400 | K14B | AZG414 | RN29001V | PN5562 | RN1693DN1369RN1955 | FN9991PN9808 | |
| 03.10~ | 1400 | K14B | ZC82S LHD | RN29001VRN2245V | PN9529PN5562 | RN1693DN1369RN1955 | FN9991PN9808 | |
| 03.10~03.13 | 1400 | K14B | ZC82S RHD | RN29001V | PN5562 | RN1693RN1955DN1369 | PN9808FN9991 | |
| 03.13~02.17 | 1400 | K14B | ZC82S RHD | RN2245VRN29001V | PN5562PN9529 | RN1693DN1369RN1955 | PN9808FN9991 | |
| 12.11~ | 1600 | M16A | EZC32S | RN2449V | PN5562 | RN1693DN1369RN1955 | FN9991PN9808 | |
| 10.09~02.13 | 1600 | M16A | ZA32S LHD | RN2449V | PN5562 | DN1369RN1955RN1693 | PN9808FN9991 | |
| 10.09~02.13 | 1600 | M16A | ZC32S LHD PR | RN2449V | PN5562 | DN1369RN1955RN1693 | FN9991PN9808 | |
| 12.11~ | 1600 | M16A | ZC3B | RN2449V | PN5562 | RN1955RN1693 | PN9808 |
