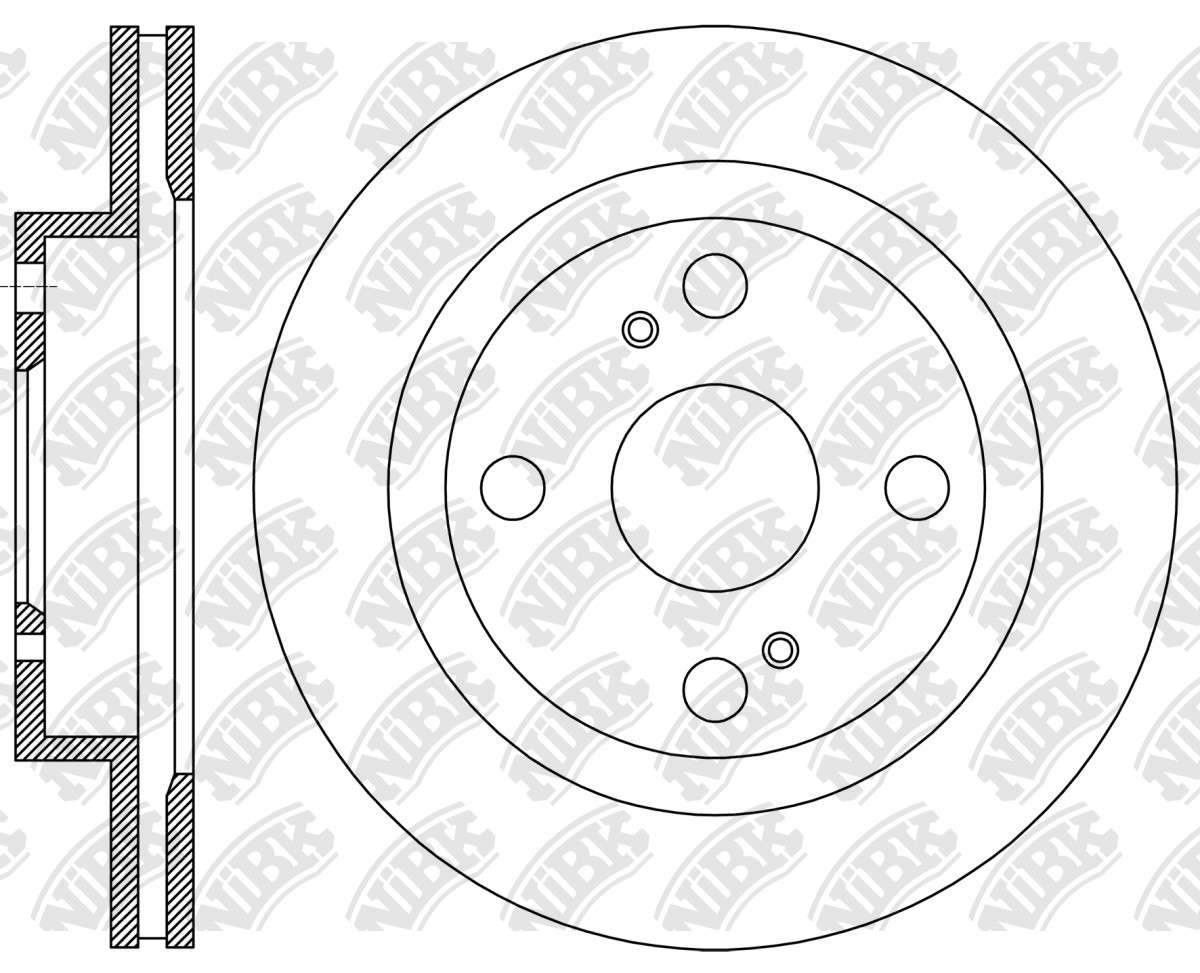

ROTOR DISC » RN2393V
Specification
Type
Vented
Outter Ø
252
Num. of holes
4
Hole Ø:
12.7
Disc Thickness (Max)
20
Disc Thickness (Min)
18
Height
40.2
Centering Diameter
60
Pitch Circle Ø
100
Front/Rear
Front
Structure Material
G3000
Cross Reference
SUZUKI
55311-52R50
SUZUKI
55311-M69P10
SUZUKI
55311-M69P20
SUZUKI
55311M69P10-000
SUZUKI
55311M69P20-000
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 02.16~01.22 | 1000 | K10C | WB42S | RN2393V | PN5562 | RN2394 | FN9805PN9808 | |
| 02.16~01.22 | 1200 | K12C | WB32S | RN2393V | PN5562 | RN2394 | PN9808FN9805 | |
| 02.16~01.22 | 1400 | K14B | WB52S LHD | RN2393V | PN5562 | RN2394 | FN9805PN9808 | |
| 02.16~01.22 | 1400 | K14B | WB52S RHD | RN2393V | PN5562 | RN2394 | FN9805PN9808 | |
| 02.16~01.22 | 1400 | K14B | WB52S RHD | RN2393V | RN2394 | FN9805 |
| 12.16~ | 1000 | K10C-T | A2L310 RHD | RN2393V | PN5562 | RN2394 | PN9808 | |
| 12.16~ | 1000 | K10C-T | ZC13S JPN | RN2393V | PN5562 | RN2394 | PN9808 | |
| 07.20~12.23 | 1200 | K12M | ZC63S LHD | RN2393V | PN5562 | FN9805 | ||
| 03.20~ | 1200 | K12MN | ZF6C LHD SDN | RN2393V | PN5562 | FN9805 | ||
| 03.20~ | 1200 | K12MP | ZF63S LHD SDN | RN2393V | PN5562 | FN9805 | ||
| 01.17~ | 1200 | K12MS | ZC63S LHD | RN2393VRN2461V | PN5562PN9812 | RN2394 | FN9806PN9808 |
