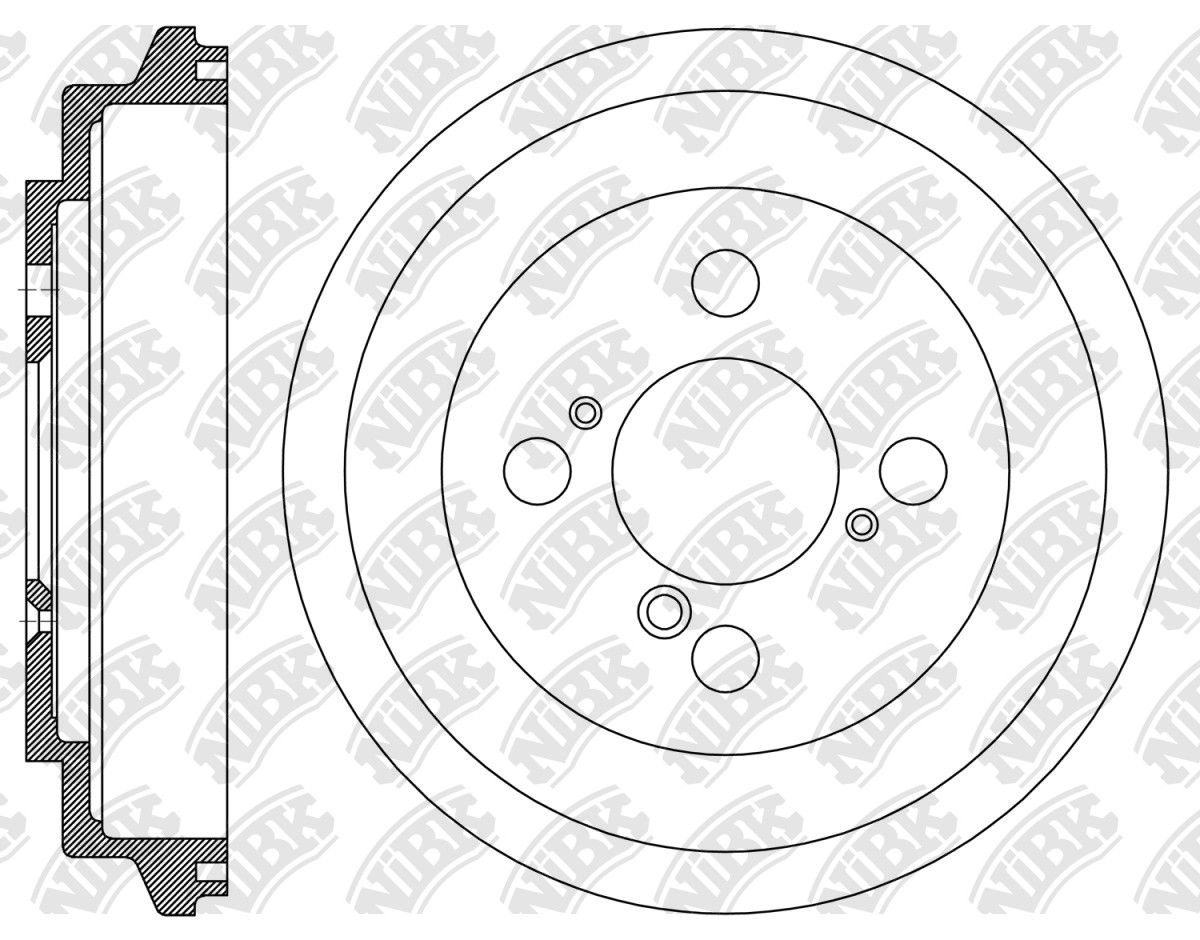

DRUM BRAKE » DN1369
Specification
Outter Ø
242
Num. of holes
4
Hole Ø
14.3
Centering Diameter
62
Height
54.8
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Cross Reference
MITSUBISHI
MQ501046
SUZUKI
43511-68L00
SUZUKI
43511-68L00-000
SUZUKI
43511-71L00
SUZUKI
43511-71L00-000
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.10~11.16 | 1200 | K12B | ZC72S JPN | RN2245VRN29001V | PN9529 | RN1955DN1369 | FN9991PN9808 | |
| 10.09~03.13 | 1200 | K12B | ZC72S LHD | RN29001V | PN5562 | RN1955DN1369 | FN9991PN9808 | |
| 03.13~02.17 | 1200 | K12B | ZC72S LHD | RN29001V | PN5562 | RN1955DN1369 | FN9991PN9808 | |
| 03.10~ | 1400 | K14B | AZG414 | RN29001V | PN5562 | DN1369RN1955RN1693 | FN9991PN9808 | |
| 03.10~ | 1400 | K14B | ZC82S LHD | RN29001VRN2245V | PN5562PN9529 | DN1369RN1955RN1693 | FN9991PN9808 | |
| 03.10~03.13 | 1400 | K14B | ZC82S RHD | RN29001V | PN5562 | DN1369RN1693RN1955 | FN9991PN9808 | |
| 03.13~02.17 | 1400 | K14B | ZC82S RHD | RN2245VRN29001V | PN5562PN9529 | DN1369RN1955RN1693 | PN9808FN9991 | |
| 12.11~ | 1600 | M16A | EZC32S | RN2449V | PN5562 | RN1693DN1369RN1955 | PN9808FN9991 | |
| 10.09~02.13 | 1600 | M16A | ZA32S LHD | RN2449V | PN5562 | RN1955RN1693DN1369 | PN9808FN9991 | |
| 10.09~02.13 | 1600 | M16A | ZC32S LHD PR | RN2449V | PN5562 | RN1955RN1693DN1369 | FN9991PN9808 |
