NiBK Brakes:: Application Cross Reference and Image for NiBK : DRUM BRAKE : DN1220

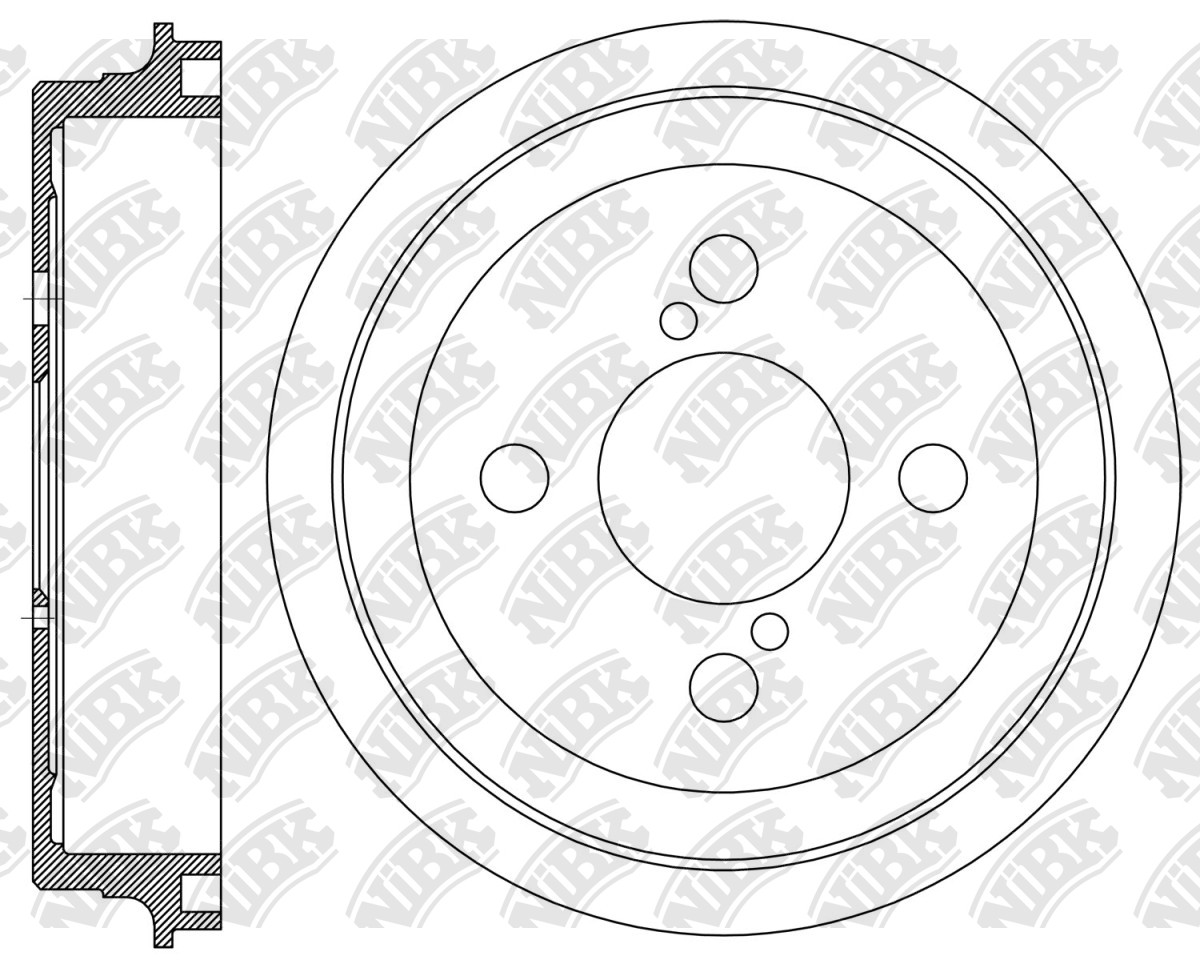

DRUM BRAKE » DN1220

Specification

Outter Ø

252

Num. of holes

4

Hole Ø

14.5

Centering Diameter

55

Height

53.1

Pitch Circle Ø

100

Drum Ø

200

Structure Material

G3000

Cross Reference

TOYOTA

42431-0D100

TOYOTA

42431-52070

TOYOTA

42431-K0020

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

TOYOTA » Aqua

07.21~	1500	M15A-FXE	MXPK10	RN2529V	PN1876	DN1220	FN2417
07.21~	1500	M15A-FXE	MXPK11	RN2529V	PN1876	DN1220	FN2417

TOYOTA » Belta

11.05~06.12	1000	1KR-FE	KSP92	RN1309V	PN1508	DN1220	FN2403
11.05~06.12	1300	2NZ-FE	NCP96	RN1309V	PN1508	DN1220	FN2403
11.05~06.12	1300	2SZ-FE	SCP92	RN1309V	PN1518 PN1508	DN1220 RN1310	PN1519 FN2403

TOYOTA » Corolla Axio

04.12~	1300	1NR-FE	NRE160	RN1309V	PN1508	DN1220	FN2403
09.06~04.12	1500	1NZ-FE	NZE141	RN1309V RN1437V	PN1524 PN1508	DN1220 DN1271	FN2403 FN2383 FN2389
04.12~	1500	1NZ-FE	NZE161 JPN	RN1309V	PN1508	DN1220	FN2403
04.12~	1500	1NZ-FE	NZE161R	RN1309V	PN1508	DN1220	FN2417 FN2403 FN2383
04.12~03.15	1500	1NZ-FE	NZE161R GR	RN1309V	PN1508	DN1220	FN2383 FN2403 FN2417
01.15~	1500	2NR-FKE	NRE161	RN1309V	PN1508	DN1220	FN2403

TOYOTA » Vios

08.07~07.13	1300	2NZ-FE	NCP92L	RN1309V	PN1508	DN1220	FN2342
09.07~01.14	1500	1NZ-FE	NCP93L VN	RN1437V RN1309V	PN1508 PN1518	DN1220 RN1310	FN2342 PN1519
02.07~01.14	1500	1NZ-FE	NCP93R	RN1437V RN1309V	PN1518 PN1508	RN1310 DN1220	FN2342 PN1519
10.16~	1500	2NR-FE	NCP151L	RN1309V	PN21004	DN1220	FN2342

TOYOTA » Vitz

10.10~04.14	1000	1KR-FE	KSP130	RN1608V RN1309V	PN1508 PN1472	DN1273 DN1220	FN2401
02.05~12.10	1000	1KR-FE	KSP90	RN1309V	PN1508	DN1220	FN2403
01.10~	1300	1NR-FE	NSP130	RN1608V	PN1472	DN1273 DN1220	FN2401
12.10~04.14	1300	1NR-FE	NSP135	RN1309V	PN1508	DN1220	FN2403
01.05~12.10	1300	2NZ-FE	NCP95	RN1309V	PN1508	DN1220	FN2403
01.05~12.10	1300	2SZ-FE	SCP90	RN1309V	PN1508	DN1220	FN2403
12.10~01.20	1500	1NZ-FE	NCP131	RN1437V RN1309V	PN1518 PN1508	RN1310 RN1626 DN1220	FN2383 FN2403 PN1519

TOYOTA » Yaris

01.20~	1000	1KR-FE	KSP210	RN2529V	PN1876	DN1220	FN2417
01.20~	1000	1KR-FE	KSP211	RN2529V	PN1876	DN1220	FN2417
08.05~08.11	1000	1KR-FE	KSP90L	RN1309V RN1437V RN1436V	PN1839 PN1518 PN1508	RN1497 DN1240 RN1310 DN1220	FN0622 FN2403 PN1840 PN1519
08.05~08.11	1000	1KR-FE	KSP90R	RN1309V RN1437V RN1436V	PN1508 PN1518 PN1839	DN1220 RN1310 DN1240 RN1497	PN1519 PN1840 FN2403 FN0622
07.13~	1200	3NR-FE	NSP152R	RN1309V	PN21004	DN1220	FN2342
10.13~	1300	2NZ-FE	NCP151L	RN1309V RN1437V	PN1518 PN21004	DN1220 RN1310	FN2342
08.05~08.08	1300	2NZ-FE	NCP90L	RN1309V	PN1508	DN1220	FN2403
08.05~08.11	1300	2NZ-FE	NCP90R	RN1309V	PN1508	DN1220	FN2403
01.06~07.13	1300	2NZ-FE	NCP92L	RN1309V	PN1508	DN1220	FN2403 FN2383
01.06~07.13	1300	2NZ-FE	NCP92R	RN1309V	PN1508	DN1220	FN2403 FN2383
12.10~04.14	1500	1NZ-FE	NCP131R	RN1309V	PN1508	DN1220	FN2417
11.06~09.14	1500	1NZ-FE	NCP91L	RN1309V	PN1508	DN1220	FN2342 FN2403
08.05~07.13	1500	1NZ-FE	NCP91R	RN1309V	PN1508	DN1220	FN2403
01.06~07.16	1500	1NZ-FE	NCP93L	RN1309V	PN1508	DN1220	FN2403 FN2383
01.06~07.16	1500	1NZ-FE	NCP93R	RN1309V	PN1508	DN1220	FN2403 FN2383 FN2417
02.20~	1500	M15A-FKS	MXPA10	RN2529V	PN1876	DN1220	FN2417
04.20~	1500	M15A-FKS	MXPA15	RN2529V	PN1876	DN1220	FN2417
02.20~	1500	M15A-FXE	MXPH10	RN2529V	PN1876	DN1220	FN2417

TOYOTA » Yaris (USA)

01.06~04.16

1500

1NZ-FE

NCP93L

RN1309V

PN1508

DN1220

FN2403 FN2383

TOYOTA » Yaris/Vios/Limo

04.16~	1300	1NR-FE	NSP150L	RN1309V	PN21004	DN1220	FN2431
04.16~	1500	2NR-FE	NSP151L	RN1309V RN1437V	PN1518 PN21004	RN1310 DN1220	FN2431 PN1519
