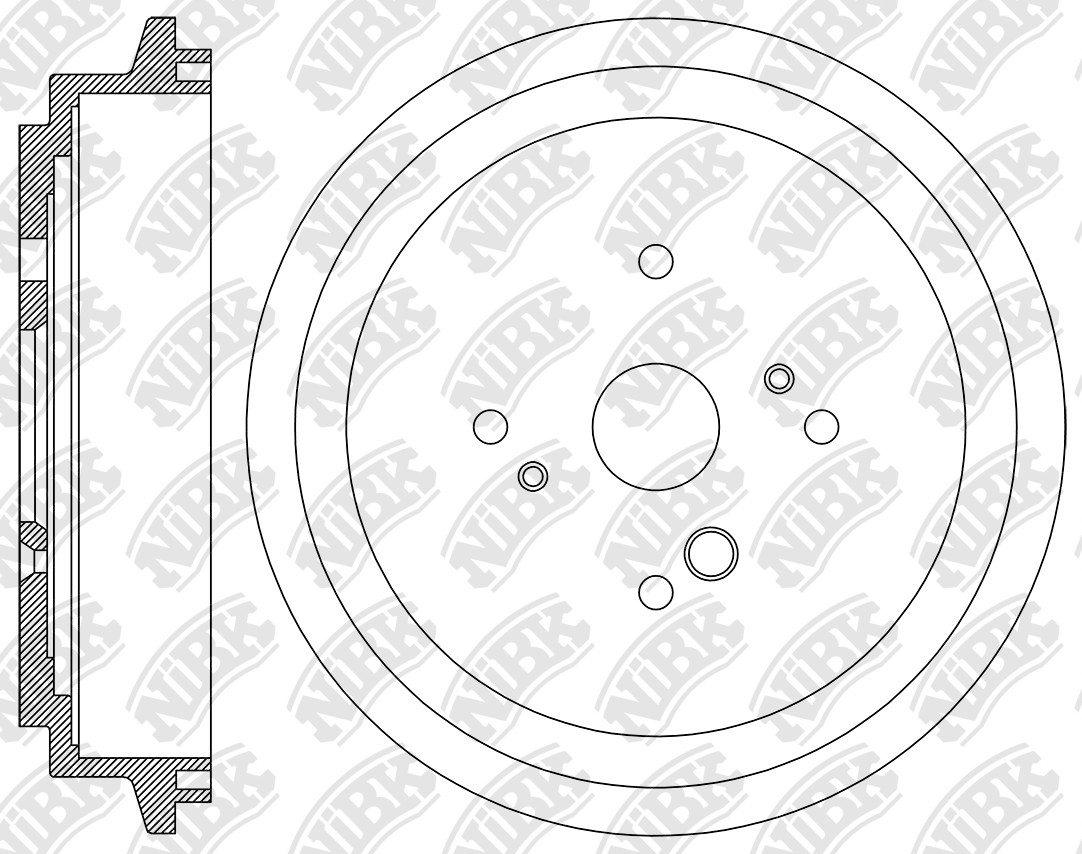

DRUM BRAKE » DN1117

DN1117

Specification

Outter Ø
244.6
Num. of holes
4
Centering Diameter
58.1
Height
56.3
Drum Ø
200
Structure Material
G3000
Hole Ø
12.8
Pitch Circle Ø
100

Cross Reference

BENDIX
PDR0744
SUZUKI
43511-60G10
SUZUKI
43511-60G10-000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

SUZUKI   »   Aerio

01.03~03.07 1600 M16A RC31S JPN RN1205V PN9804 DN1117 FN0032
06.03~12.07 1600 M16A RH416 RN1205V PN9461PN9804 DN1117 FN0032

SUZUKI   »   Carry/Every

01.99~09.01 660 F6A DA52V RN1986 PN9439 DN1117 FN9962
04.99~10.01 660 F6A-T DA52W RN1986 PN9439 DN1117 FN9962

SUZUKI   »   Liana

03.01~12.07 1300 M13A ERA11S SDN RN1205V PN9804 DN1117 FN0032
08.04~01.08 1600 M16A 2RC31S HB LHD RN1205V PN9461 DN1117 FN0032
01.01~01.08 1600 M16A ERC31S HB RN1205V PN9804 DN1117 FN0032

SUZUKI   »   Swift III

01.04~04.08 1300 M13A RS413-2 RN2245V PN9805 DN1117 FN0032
11.04~09.10 1500 M15A ZD21S RN2245V PN9529 DN1117 FN0032
01.05~09.10 1600 M16A EZC31S RN2245VRN1649VRN1525V PN9529PN9805 DN1117RN1524 FN9969PN8398FN0032
