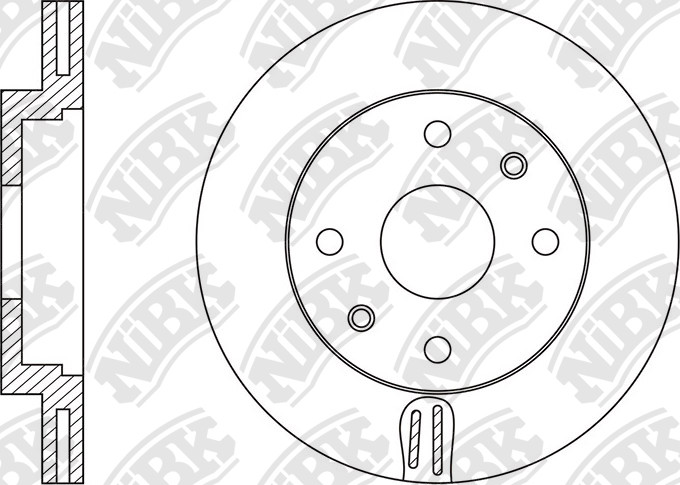

ROTOR DISC » RN1571V
Specification
Type
Vented
Outter Ø
258
Num. of holes
4
Disc Thickness (Max)
22
Height
44
Centering Diameter
61
Pitch Circle Ø
100
Front/Rear
Front
Drum Ø:
126.7
Structure Material
G3000
Disc Thickness (Min)
19.8
Cross Reference
MERCEDES-BENZ
A4534200100
RENAULT
40 20 622 12R
RENAULT
40 20 626 50R
RENAULT
40 20 631 49R
RENAULT
40 20 631 66R
RENAULT
40 20 668 39R
RENAULT
40 20 670 25R
RENAULT
40 20 676 15R
RENAULT
402065054R
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.21~ | 1000 | H4D 480 | RKMT | RN1571V |
| 11.12~03.19 | 900 | H4B 400 | BHMA | RN1571V | PN43001PN2800PN9805 | DN1322HDN1599H | FN0619FN43551 | |
| 11.12~06.15 | 1200 | D4F 7# | BH | RN1571V | PN9805PN2800 | DN1322H | FN43551 | |
| 11.12~03.19 | 1200 | H5F 403 | BHM0 | RN1571V | PN9805PN2800 | DN1322H | FN43551 | |
| 11.12~03.19 | 1500 | K9K 608 | BHAL | RN1571V | PN43001 | DN1322H | FN0619 | |
| 11.12~03.19 | 1500 | K9K 609 | BHAL | RN1571V | PN2800PN0773PN9805 | DN1322HDN1599H | FN43551FN0619 | |
| 11.12~08.15 | 1500 | K9K 628 | BHAH | RN1571VRN2142V | PN9805PN43001PN0773 | DN1322HDN1599H | FN43551FN0619 | |
| 11.12~03.19 | 1500 | K9K 629 | BHAJ | RN1571V | PN2800PN9805 | DN1322H | FN43551 | |
| 11.12~03.19 | 1500 | K9K 674 | BHJ7 | RN2142VRN1571V | PN2800PN0773 | DN1322HDN1599H | FN43551FN0619 |
| 08.04~06.15 | 1400 | K7J710 | LS0A | RN1571VRN1191RN1000RN1037V | PN0284W | DN1607DN1609 | FN0619FN0556 | |
| 01.05~12.07 | 1400 | K7J710 | LS0G | RN1000RN1037VRN1571VRN1191 | PN0284W | DN1609DN1607 | FN0619FN0602FN0556 | |
| 09.09~12.14 | 1400 | K7J710 | LS12 | RN1571VRN1191RN1000RN1037V | PN0284W | DN1607 | FN0556FN0602FN0619 | |
| 03.13~ | 1500 | K9K | LS0# | RN1571V | PN43002 | |||
| 06.16~ | 1600 | H4M438 | L8JA | RN1571V | PN0773 | FN43551FN0619 | ||
| 01.09~12.14 | 1600 | K4M 697 | LS1Y | RN1191RN1000RN1037VRN1571V | PN0284W | FN0619FN0556FN0602 | ||
| 03.14~ | 1600 | K4M842 | L8MT | RN1571V | PN43001 | FN43551FN0619 | ||
| 03.14~ | 1600 | K4M845 | L8A9 | RN1571V | PN43006 | DN1627H | FN0619 | |
| 03.14~ | 1600 | K4M845 | L8MT | RN1571V | PN0773 | FN0619FN43551 | ||
| 01.08~08.09 | 1600 | K7M710 | LS0B | RN1000RN1037VRN1571VRN1191 | PN0284W | DN1607 | FN0556FN0602FN0619 | |
| 01.05~12.09 | 1600 | K7M710 | LS0H | RN1571VRN1191RN1000RN1037V | PN0284W | FN0602FN0556FN0619 | ||
| 09.09~12.14 | 1600 | K7M710 | LS11 | RN1571VRN1191RN1000 | PN0284W | DN1607 | FN0556FN0602FN0619 | |
| 05.17~ | 1600 | K7M812 | L8JB LHD | RN1571VRN1191 | PN43001 | DN1627H | FN0619 | |
| 03.14~07.18 | 1600 | K7M812 | L8MV | RN1191RN1571V | PN43002 | FN43551FN0619 |
| 01.08~08.14 | 1000 | D4D760 | LS0R | RN1191RN1000RN1571V | PN0284W | FN0619FN0556 | ||
| 01.08~08.14 | 1400 | K7J710 | B90 BS12 | RN1191RN1000RN1037VRN1571V | PN0284W | DN1627HDN1595H | FN0619FN0556 | |
| 01.08~08.14 | 1500 | K9K790 | LS0Y | RN1191RN1037VRN1000RN1571V | PN0284W | DN1627HDN1595H | FN0619FN0556FN0602 |
| 06.16~ | 1600 | H4M | B8JA | RN1571V | PN0773 | FN0619 | ||
| 09.16~ | 1600 | H4M759 | B8ND | RN1571V | PN43006 | DN1627H | FN0619 | |
| 12.09~08.14 | 1600 | K4M | BS1Y | RN1191RN1000RN1037VRN1571V | PN0284W | FN0556FN0619 | ||
| 09.14~ | 1600 | K4M842 | B8MT | RN1571V | PN0773 | FN0619 | ||
| 07.18~ | 1600 | K4M845 | L8A9 | RN1571V | PN0773 | FN43551FN0619 | ||
| 12.09~08.14 | 1600 | K7M | BS11 | RN1037VRN1571VRN1191RN1000 | PN0284W | DN1595HDN1627H | FN0619FN0556 | |
| 11.12~ | 1600 | K7M812 | B8JB | RN1571VRN1191 | PN43002PN43006 | DN1627H | FN0619 | |
| 11.12~ | 1600 | K7M812 | B8MV | RN1571VRN1191 | PN43002 | FN0619 |
| 06.16~ | 1600 | H4M | B8JA | RN1571V | PN0773 | FN43551FN0619 | ||
| 04.14~ | 1600 | K4M842 | B8MT | RN1571V | PN0773 | FN0619FN43551 | ||
| 11.14~ | 1600 | K7M | B8MV | RN1571V | PN0773 | FN0619FN43551 | ||
| 11.09~10.14 | 1600 | K7M710 | BS11 | RN1571VRN1191RN1000RN1037V | PN0284W | FN0556FN0619 |
