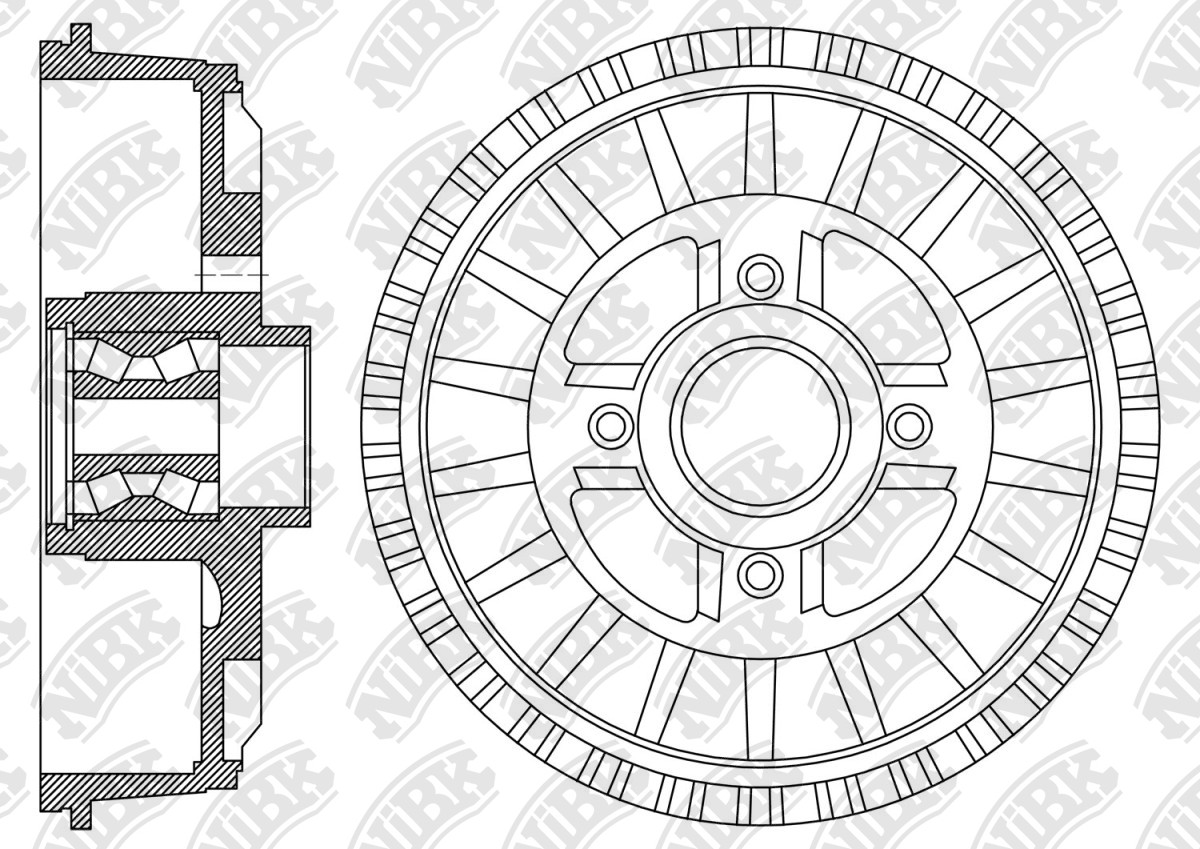

DRUM BRAKE » DN1322H
Specification
Outter Ø
262
Num. of holes
4
Hole Ø
M12x1,5
Centering Diameter
60
Height
89.3
Pitch Circle Ø
100
Drum Ø
228.6
Structure Material
G3000
Notes
w/Wheel Bearing,
w/ABS Sensor Ring
Cross Reference
LADA
432000505R
LADA
432002049R
MERCEDES-BENZ
A 415 423 01 01
MERCEDES-BENZ
A 415 423 02 00
NISSAN
43200-00Q0K
NISSAN
43200-00Q1L
RENAULT
43 20 005 05R
RENAULT
43 20 013 16R
RENAULT
43 20 015 01R
RENAULT
43 20 041 97R
RENAULT
43 20 043 14R
RENAULT
43 20 045 86R
RENAULT
43 20 055 73R
RENAULT
43 20 072 12R
RENAULT
43 20 073 20R
RENAULT
43 20 092 34R
RENAULT
43 20 243 42R
RENAULT
43 20 314 39R
RENAULT
43 20 375 63R
RENAULT
60 01 550 813
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 07.12~ | 1600 | K4M | KS0Y5 | PN0284WPN2800 | DN1322H | FN43551 | ||
| 07.12~ | 1600 | K7M | KS015 | RN1187VRN1037V | PN0284WPN2800 | DN1322H | FN43551 | |
| 11.15~ | 1600 | VAZ-11189 | S035 | RN1187V | PN2800 | DN1322H | FN43551 | |
| 10.17~ | 1600 | VAZ-21129 | S045 | RN1187V | PN2800 | DN1322H | FN43551 |
| 11.14~ | 1600 | K4M | S0Y5 | RN1187V | PN2800PN0284W | DN1322H | FN43551 | |
| 10.17~ | 1600 | VAZ-21129 | S045 | RN1187V | PN2800PN0284W | DN1322H | FN43551 |
| 01.13~05.17 | 900 | H4B400 | J5MA RHD | RN2142V | PN2800 | DN1322H | FN43551 | |
| 01.13~05.17 | 900 | H4B408 | J5M1 LHD EU | RN2142V | PN2800 | DN1322H | FN43551 | |
| 06.13~09.19 | 1200 | H5F 403 | J5_ | RN1126V | PN0551 | DN1322H | FN43551 | |
| 06.13~09.19 | 1200 | H5F 403 | J5_ R451 LHD CHL | RN1126V | PN0551 | DN1322H | FN43551 | |
| 06.13~09.19 | 1500 | K9K 608 | J5AL | RN1126V | PN0551 | DN1322H | FN43551 | |
| 06.13~09.19 | 1500 | K9K 628 | J5AJ | RN1126V | PN0551 | DN1322H | FN43551 |
| 11.12~03.19 | 900 | H4B | BH__ | RN1571V | PN43001PN2800PN9805 | DN1322HDN1599H | FN0619FN43551 | |
| 09.16~ | 1200 | H5F 402 | BHAU | RN1571V | PN2800 | DN1322H | FN43551 | |
| 09.12~09.16 | 1200 | H5F 403 | BHM0 | RN1571V | PN2800PN9805 | DN1322H | FN43551 | |
| 09.16~ | 1200 | H5F 403 | BHM0 HB LHD | RN1571V | PN2800 | DN1322H | FN43551 | |
| 09.16~ | 1200 | H5F 403 | BHM0 HB RHD | RN2142V | PN9805PN2800 | DN1322H | FN43551 | |
| 11.12~03.19 | 1500 | K9K 608 | BHAL | RN1571V | PN43001 | DN1322H | FN0619 | |
| 11.12~03.19 | 1500 | K9K 609 | BHAL | RN1571V | PN9805PN2800PN0773 | DN1599HDN1322H | FN43551FN0619 | |
| 09.16~ | 1500 | K9K 612 | KHM4 | RN2142VRN1571V | PN9805PN2800 | DN1322H | FN43551 | |
| 11.12~03.19 | 1500 | K9K 628 | BHAH | RN1571VRN2142V | PN0773PN9805PN43001 | DN1599HDN1322H | FN43551FN0619 | |
| 11.12~03.19 | 1500 | K9K 629 | BHAJ | RN1571V | PN9805PN2800 | DN1322H | FN43551 | |
| 11.12~03.19 | 1500 | K9K 674 | BHJ7 | RN2142VRN1571V | PN2800PN0773 | DN1599HDN1322H | FN43551FN0619 |
| 01.09~01.21 | 1500 | K9K 608 | FW07 | RN1878V | PN0532 | DN1322HRN1884H | PN0533FN43551 | |
| 02.08~02.18 | 1500 | K9K 800 | FW0A | RN1878VRN2414V | PN2800PN0532 | RN1884HDN1322H | PN0533FN43551 | |
| 02.08~02.18 | 1600 | K4M 831 | FW0D | RN1878V | PN2800PN0532 | RN1884HDN1322H | FN43551PN0533 | |
| 10.07~01.21 | 1600 | K4M 831 | KW0D | RN1878VRN2414V | PN9805PN2800PN0532 | RN1884HDN1322H | PN0533FN43551 |
