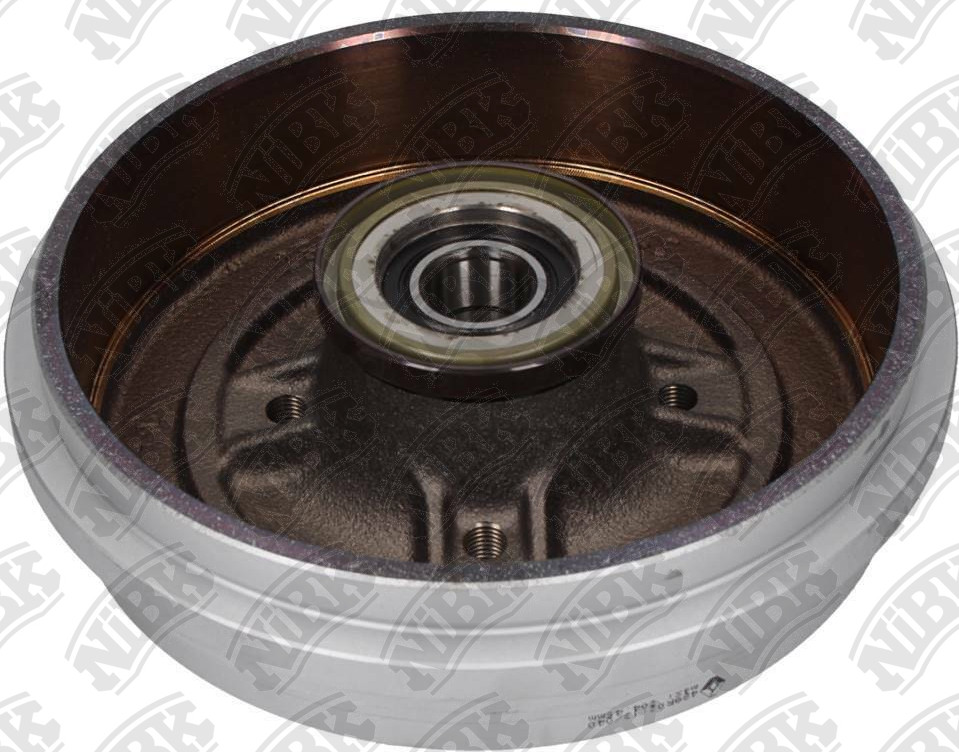

DRUM BRAKE » DN1599H

Specification

Outter Ø
237
Num. of holes
4
Centering Diameter
54.9-55.2
Height
76
Pitch Circle Ø
100
Drum Ø
203.2
Structure Material
G3000
Hole Ø
M12x1.5
Notes
w/Wheel Bearing, w/ABS Sensor Ring

Cross Reference

RENAULT
43 20 240 62R
RENAULT
43 20 322 73R
RENAULT
43 20 337 13R
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
11.12~03.19 900 H4B BH__ RN1571V PN2800PN9805PN43001 DN1599HDN1322H FN43551FN0619
11.12~06.15 1200 D4F 740 B98 HB LHD RN1571V PN9805PN2800PN43001 DN1599H FN0619FN43551
11.12~03.19 1500 K9K 609 BHAL RN1571V PN2800PN0773PN9805 DN1322HDN1599H FN43551FN0619
11.12~03.19 1500 K9K 612 BHM4 RN2142V PN43001 DN1599H FN0619
11.12~03.19 1500 K9K 628 BHAH RN2142VRN1571V PN0773PN9805PN43001 DN1322HDN1599H FN0619FN43551
11.12~03.19 1500 K9K 674 BHJ7 RN1571VRN2142V PN2800PN0773 DN1322HDN1599H FN0619FN43551

Exemption from liability: the catalog data is advisory and can be used for reference only
