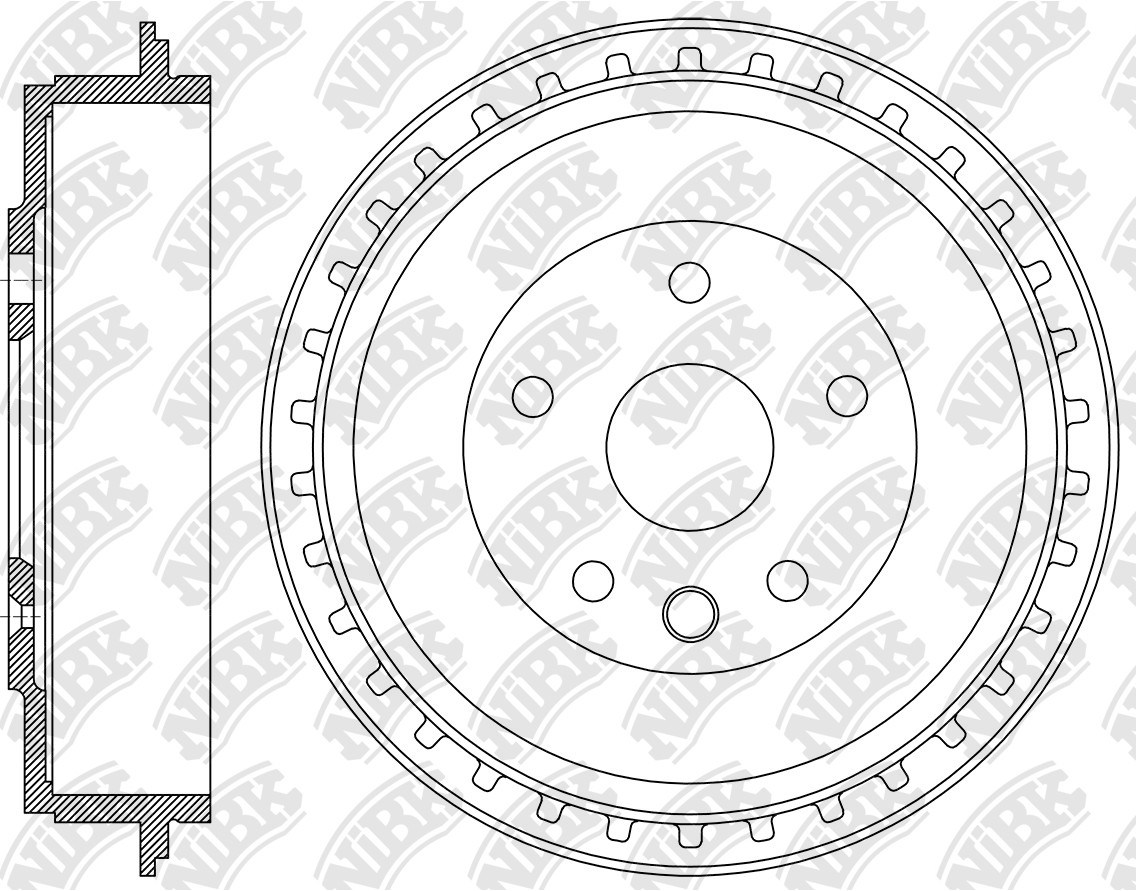

DRUM BRAKE » DN1532

Specification

Outter Ø
278
Num. of holes
5
Centering Diameter
65
Height
56.4
Pitch Circle Ø
100
Drum Ø
228
Structure Material
G3000
Hole Ø
15.6

Cross Reference

VOLKSWAGEN
2Q0 609 617 A
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.18~ 1000 DLAC KJ__SV RN2312V PN0891 DN1532 FN0787
07.18~ 1000 DKLA KJ1 RN2313V PN0148W DN1532 FN0787
09.17~02.24 1000 DBYA A_1_E_ RN2313V PN0148W DN1532 FN0787
07.17~ 1000 CHYC AW1 RN2313V PN0891 DN1532DN1531RN1084 FN0789PN0019WFN0787
06.17~04.21 1000 DLAC AWZ RN2313V PN0148W DN1532 FN0787
09.21~ 1000 DLAC CS1 RN2312V PN0891 DN1532 FN0787

Exemption from liability: the catalog data is advisory and can be used for reference only
