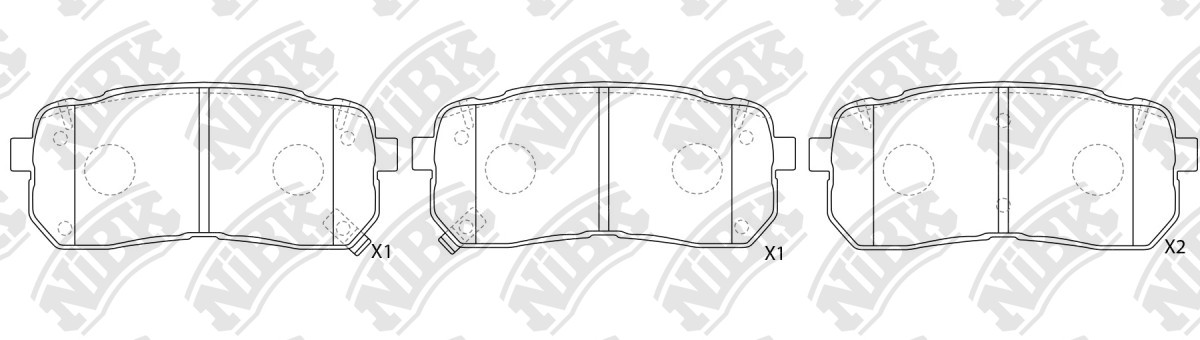

BRAKE PADS » PN0457
Specification
Length-1
110.5
Width-1
47.8
Thickness-1
14.9
Pcs In Set
4
Cross Reference
BENDIX AUS
DB1957
FMSI
D1302-8418
FMSI
D1963-9188
FMSI
D2309-8418
HYUNDAI
58302-3JA00
HYUNDAI
58302-3JA50
HYUNDAI
58302-4DA00
HYUNDAI
58302-4DE00
HYUNDAI
58302-4HA00
HYUNDAI
58302-C5A00
HYUNDAI
58302-C5A01
HYUNDAI
583024HA50
HYUNDAI / KIA
58302-4HA30
HYUNDAI / KIA
58302-C5A70
HYUNDAI / KIA
583023JA50
HYUNDAI / KIA
58302C5A02
KASHIYAMA
D11239M
KASHIYAMA
D11391MH
KIA
58302-A9A00
KIA
58302-A9A10
WVA
24599
WVA
24600
WVA
24686
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 05.07~ | 2400 | G4KG | TQ07 | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | TQ07 | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 11P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 01.18~ | 2500 | D4CB A2 | WGN 11P LHD | RN2433V | PN0458 | RN1656V | PN0457 | FN0715 |
| 08.15~12.17 | 2500 | D4CB A2 | WGN 12P LHD | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 01.18~ | 2500 | D4CB A2 | WGN 12P LHD | RN2433V | PN0458 | RN1656V | PN0457 | FN0715 |
| 08.15~12.17 | 2500 | D4CB A2 | WGN 12P RHD | RN1457V | PN0458 | RN1656V | PN0457FN11001 | FN0715 |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P LHD | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P RHD | RN1457V | PN0458 | DN1498RN1656V | PN0457FN11001 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | VAN LONG - 3P | RN1457V | PN0458 | RN1656VDN1498 | PN0457FN11002 | FN0715 |
| 08.15~05.18 | 2500 | D4CB A2 | VAN LONG - 6P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 12P | RN1457V | PN0458 | DN1498RN1656V | PN0457FN11001 | FN0715 |
| 08.15~05.18 | 2500 | D4CB A2 | WAGON LONG - 8P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 10.06~01.14 | 3000 | D6EA | EN | RN1349V | PN0456 | PN0457 | FN0715 | |
| 04.11~04.13 | 3000 | D6EB | EN07 | PN0456 | PN0457 | FN0715 | ||
| 10.06~01.14 | 3800 | G6DA | EN | PN0456 | PN0457 | FN0715 |
| 10.06~01.15 | 3000 | D6EA | EN07 | RN1349V | PN0456 | PN0457 | FN0715 | |
| 10.06~01.15 | 3800 | G6DA | EN07 | RN1349V | PN0456 | PN0457 | FN0715 | |
| 10.06~01.15 | 3800 | G6DA | EN07 GEN | RN1349V | PN0456 | PN0457 | FN0715 |
| 04.14~01.21 | 2200 | D4HB | WAGON LONG - 11P | RN2409V | PN0711 | PN0457 | FN0756 | |
| 04.14~01.21 | 2200 | D4HB | WAGON LONG - 7P | RN2409V | PN0711PN0588 | PN0457 | FN0756 | |
| 04.14~03.18 | 2200 | D4HB | WAGON LONG - 8P RHD | RN2409V | PN0711 | PN0457 | FN0756 | |
| 03.18~08.20 | 2200 | D4HB | WAGON LONG - 8P RHD | RN2409V | PN0711 | PN0457 | FN0756 | |
| 04.14~03.18 | 2200 | D4HB | WAGON LONG - 9P | RN2409V | PN0711 | PN0457 | FN0756 | |
| 04.14~01.21 | 3300 | G6DF | WAGON LONG - 11P RHD | RN2409V | PN0711 | PN0457 | FN0756 | |
| 09.14~03.18 | 3300 | G6DF | WAGON LONG - 8P | RN2409V | PN0711 | PN0457 | FN0756 | |
| 04.14~01.21 | 3300 | G6DH | WAGON LONG - 7P | RN2409V | PN0711 | PN0457 | FN0756 | |
| 04.14~03.18 | 3300 | G6DH | WAGON LONG - 8P US | RN2409V | PN0711 | PN0457 | FN0756 |
| 01.10~11.14 | 2200 | D4HB | WAGON LONG - 11P | RN2609V | PN0588 | RN1914 | PN0457 | FN0689 |
| 07.06~12.09 | 2700 | G6EA | VQ | RN1206V | PN0588PN0458 | PN0457 | ||
| 09.05~10.06 | 2900 | J3 | K4D005 | RN1915V | PN0458 | RN1914 | PN0457 | FN0689 |
| 11.06~10.14 | 2900 | J3 | WAGON LONG - 11P RHD | RN2609V | PN0588 | RN1914 | PN0457 | FN0689 |
| 11.06~01.14 | 2900 | J3 | WAGON LONG - 8P | RN1915V | PN0588PN0458 | RN1914 | PN0457 | FN0689 |
| 01.06~01.14 | 3500 | G6DC | WAGON LONG - 8P | RN1915V | PN0458 | RN1914 | PN0457 | FN0689 |
| 02.18~07.20 | 2200 | D4HB | WAGON LONG - 9P | PN0711 | PN0457 | FN0756 | ||
| 02.18~07.20 | 3300 | G6DF | WAGON LONG - 8P | PN0711 | PN0457 | FN0756 | ||
| 02.18~07.20 | 3300 | G6DM | WAGON LONG - 8P | RN2409V | PN0711 | PN0457 | FN0756 |
| 08.14~01.18 | 2000 | D4HA | PC | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
| 08.14~01.18 | 2200 | D4HB | PC515 LHD | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
| 08.14~07.17 | 2200 | D4HB | PC515 LHD KDOM | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
| 08.14~01.18 | 2200 | D4HB | PC515 RHD | RN1652VRN1349V | PN0662 | RN2008VRN1713 | PN0457 | FN0754 |
| 08.14~01.18 | 2400 | G4KE | PC515 LHD | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
| 08.14~01.18 | 2400 | G4KE | PC515 RHD | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
| 08.14~01.18 | 2400 | G4KJ | UM | RN1349V | PN0662 | RN2008V | PN0457 | FN0754 |
| 08.14~01.18 | 3300 | G6DF | UM | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
| 07.17~11.20 | 2000 | D4HA | PC518 LHD DOM | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
| 07.17~01.20 | 2200 | D4HB | C5W72 | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
| 07.17~03.20 | 2200 | D4HB | PC518 RHD | RN1349V | PN0662 | RN2008V | PN0457 | FN0754 |
| 01.18~01.20 | 2400 | G4KE | PC518 | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
| 07.17~11.20 | 2400 | G4KJ | PC518 LHD | RN1349V | PN0662 | RN2008V | PN0457 | FN0754 |
| 07.17~11.20 | 3500 | G6DC | PC518 | RN2279VRN1349V | PN0662PN11003 | RN2008V | PN0457 | FN0754 |
| 01.18~01.20 | 3500 | G6DC | PC518 | RN1652V | PN0662 | RN1713 | PN0457 | FN0754 |
