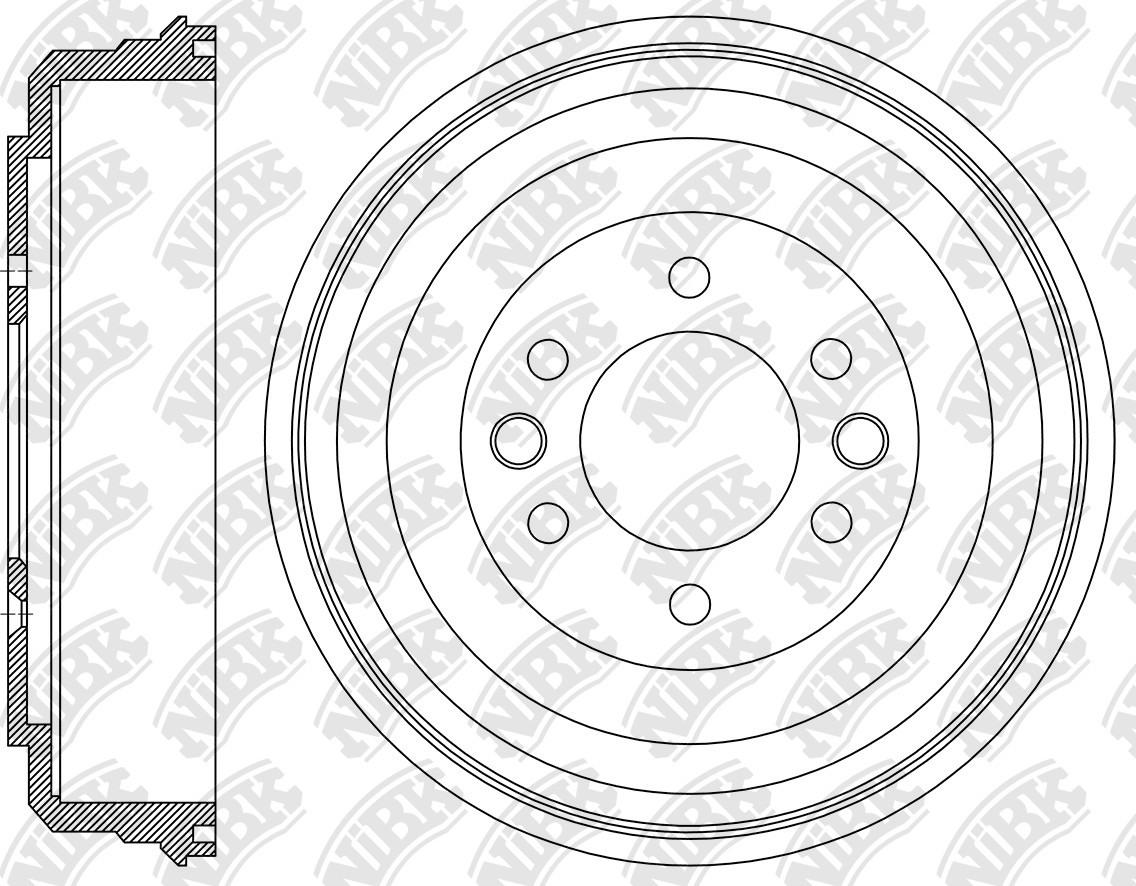

DRUM BRAKE » DN1498

Specification

Outter Ø
343
Num. of holes
6
Hole Ø
12.6
Height
84.1
Pitch Circle Ø
139.7
Structure Material
G3000
Drum Ø
295
Centering Diameter
96.3

Cross Reference

HYUNDAI
58411-4H000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.07~08.15 2400 G4KG VAN LONG - 3P RN1457V PN0458 DN1498 FN11001
05.07~08.15 2500 4D56 WAGON LONG - 12P RN1457V PN0458 DN1498 FN11001
05.07~08.15 2500 4D56 WAGON LONG - 9P RN1457V PN0458 DN1498 FN11001
05.07~08.15 2500 D4CB VAN LONG - 3P RN1457V PN0458 RN1656VDN1498 FN11002PN0457 FN0715
05.07~08.15 2500 D4CB WAGON LONG - 12P RN1457V PN0458 RN1656VDN1498 PN0457FN11001 FN0715
05.07~08.15 2500 D4CB WAGON LONG - 8P RN1457V PN0458 DN1498 FN11001

Exemption from liability: the catalog data is advisory and can be used for reference only
