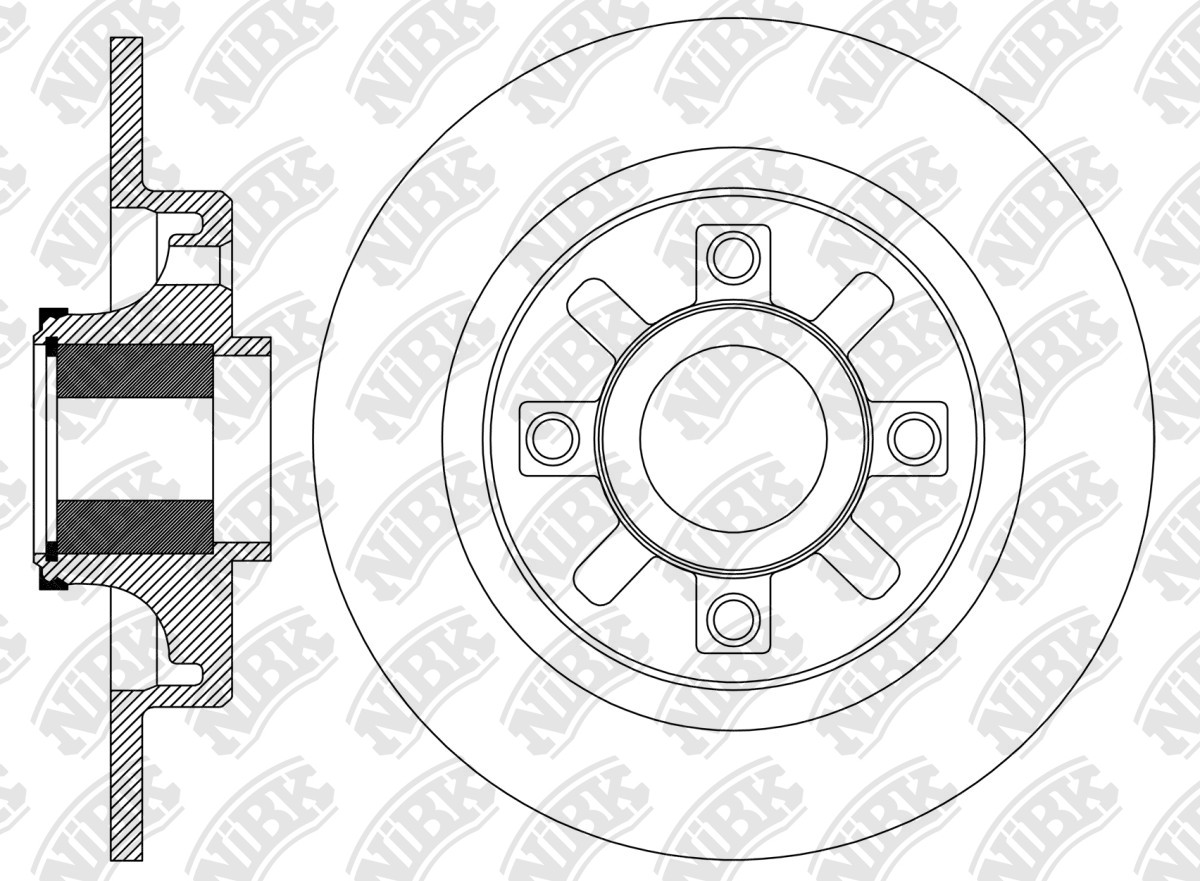

ROTOR DISC » RN2278H

Specification

Type
Solid
Disc Thickness (Max)
9
Num. of holes
4
Height
69.3
Centering Diameter
61.9-65
Front/Rear
Rear
Pitch Circle Ø
108
Outter Ø
244
Hole Ø:
M12x1.25
Disc Thickness (Min)
7
Structure Material
G3000

Cross Reference

OPEL
39181957
Peugeot / Citroen
1623835180
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.17~ 1200 EB2DT A88 RN1151V PN0706 RN2278H PN0019W
01.17~ 1600 DV6FD A88 RN1152V PN0182 RN2278H PN0019W
03.17~ 1200 B12XHL P17 RN1151V PN0706 RN2278H PN0019W

Exemption from liability: the catalog data is advisory and can be used for reference only
