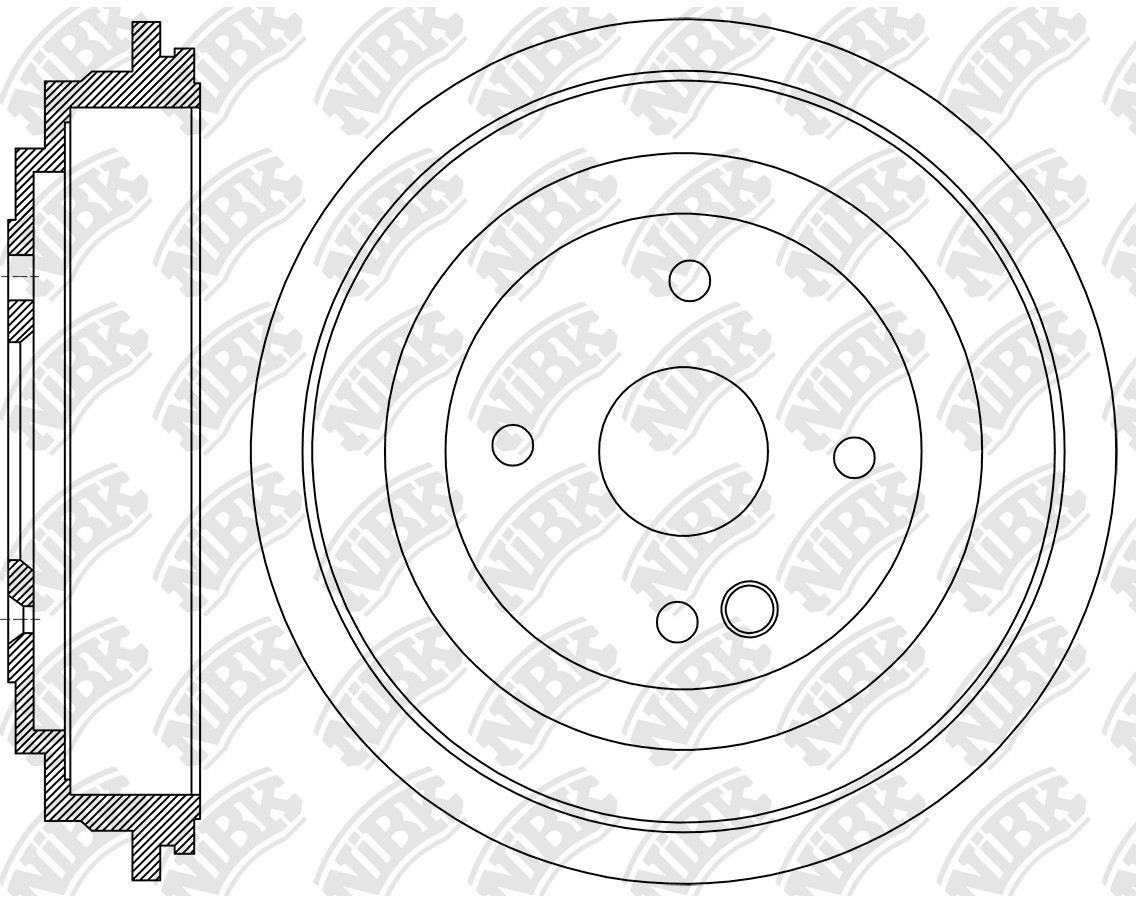

DRUM BRAKE » DN1509
Specification
Outter Ø
252
Num. of holes
4
Centering Diameter
62.5
Height
53.8
Drum Ø
203.2
Structure Material
G3000
Hole Ø
12.6
Pitch Circle Ø
100
Cross Reference
HYUNDAI
58411-0U000
HYUNDAI / KIA
58411-0U000
HYUNDAI / KIA
584110U000DS
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.18~ | 1400 | G4LC | PH618 LHD VTN | RN11002VRN1956V | PN0537 | RN11003DN1509 | PN0538FN0609 | |
| 01.18~ | 1400 | G4LC | PH618 RHD | RN1956V | PN0537 | DN1509RN11003 | PN0538FN0609 | |
| 01.18~ | 1400 | G4LC | PJ018 LHD SDN | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.18~ | 1600 | D4FB | PH618 LHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.18~ | 1600 | G4FD | PJ018 | RN2072V | PN0603 | DN1509 | FN0609 |
| 02.20~ | 1400 | G4LC | H520 | RN1956V | PN0537 | RN11003DN1509 | FN0609PN0538 | |
| 02.20~ | 1600 | G4FG | H520 | RN1956V | PN0537 | RN11003DN1509 | FN0609PN0538 |
| 05.14~12.16 | 1400 | G4FA | SBR14 RUS | RN11002V | PN0537 | DN1509 | FN0609 | |
| 05.14~12.16 | 1600 | G4FC | SBR14 RUS | RN11002V | PN0537 | RN11003DN1509 | FN0609 |
| 01.17~08.20 | 1400 | G4LC | H517 | RN1956V | PN0537 | RN11003DN1509 | PN0538FN0609 | |
| 01.17~08.20 | 1600 | G4FG | H517 | RN1956V | PN0537 | DN1509RN11003 | FN0609PN0538 |
| 08.20~ | 1200 | G4LF | PH820 HB RHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.20~ | 1400 | G4LC | PH820 HB RHD | RN1956V | PN0537 | DN1509 | FN0609 |
| 11.16~01.20 | 1200 | G4LA | PH817 HB RHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 11.16~08.20 | 1400 | G4LC | PH817 HB RHD | RN1956V | PN0537 | RN11003DN1509 | PN0538FN0609 | |
| 01.17~ | 1400 | G4LC | PH917 HB LHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.17~ | 1400 | G4LC | PH917 SDN LHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.17~ | 1600 | G4FG | PH917 HB LHD | RN1956V | PN0537 | DN1509 | FN0609 | |
| 01.17~ | 1600 | G4FG | PH917 SDN LHD | RN1956V | PN0537 | DN1509 | FN0609 |
