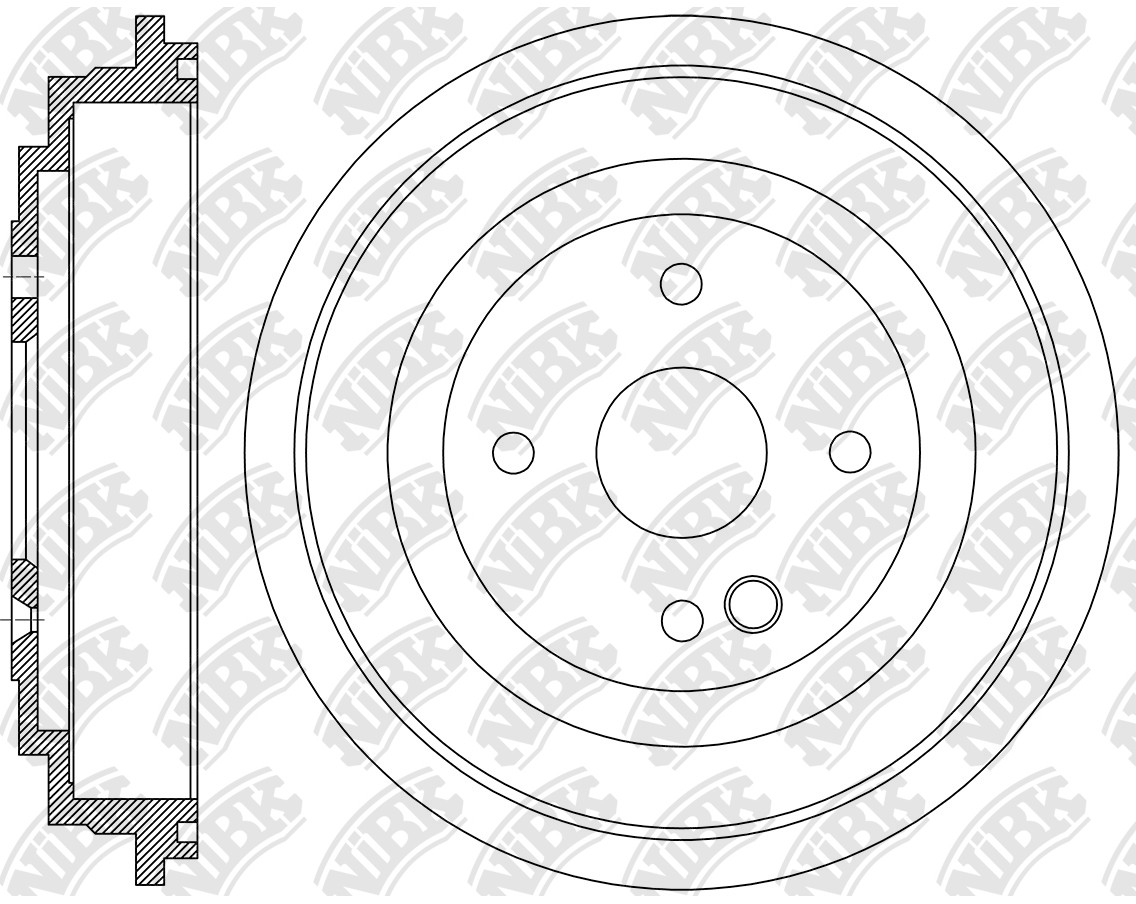

DRUM BRAKE » DN1456
Specification
Outter Ø
253
Num. of holes
4
Hole Ø
12.6
Centering Diameter
62.5
Height
53.8
Pitch Circle Ø
100
Drum Ø
203.2
Structure Material
G3000
Cross Reference
HYUNDAI / KIA
58411-1R000
KIA
58411-1R000
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.10~10.14 | 1400 | G4FA | PSB11 SDN LHD | RN11002V | PN0537 | DN1456RN11003 | FN0609PN0538 | |
| 11.11~09.14 | 1400 | G4FA | SB HB | RN11002V | PN0537 | DN1456 | FN0609 | |
| 09.11~05.14 | 1400 | G4LC | CT41 LHD | RN11002V | PN0537 | DN1456 | FN0609 | |
| 09.11~05.14 | 1600 | G4FC | PSB11 HB LHD PR | RN11002V | PN0537 | RN11003DN1456 | PN0538FN0609 | |
| 09.11~05.14 | 1600 | G4FC | PSB11 SDN | RN11002V | PN0537 | DN1456RN11003 | FN0609PN0538 | |
| 09.11~05.14 | 1600 | G4FD | SB | RN11002V | PN0537 | DN1456 | FN0609 |
| 01.14~01.19 | 1400 | G4LC | CT41 RHD | RN11002V | PN0537 | DN1456RN11003 | FN0609PN0538 | |
| 01.14~01.20 | 1400 | G4LC | CT41 SDN LHD | RN11002V | PN0537 | DN1456RN11003 | PN0538FN0609 | |
| 09.14~02.20 | 1600 | D4FB | PSB15 LHD | RN11002V | PN0537 | DN1456RN11003 | FN0609PN0538 | |
| 05.14~11.17 | 1600 | G4FC | PSB15 SDN | RN11002V | PN0537 | DN1456RN11003 | PN0538FN0609 |
| 01.16~06.18 | 1000 | G3LC | HB EU | RN2072VRN1956V | PN0537 | RN11003DN1456 | PN0538FN0609 | |
| 06.18~03.20 | 1000 | G3LC | PC818 5DR HB EL | RN2072VRN1956V | PN0537 | DN1456RN11003 | PN0538FN0609 | |
| 11.14~06.18 | 1100 | D3FA | HB EU | RN1956VRN2072V | PN0537 | DN1456RN11003 | PN0538FN0609 | |
| 12.14~08.20 | 1200 | G4LA | BL51 5DR RHD | RN11002V | PN0537 | DN1456 | FN0609 | |
| 11.14~06.18 | 1200 | G4LA | HB EU | RN2072VRN1956V | PN0537 | DN1456RN11003 | FN0609PN0538 | |
| 11.14~06.18 | 1200 | G4LA | PC715 RHD | RN2072VRN11002V | PN0537 | RN11003DN1456 | FN0609PN0538 | |
| 11.14~06.18 | 1400 | D4FC | HB EU | RN2072VRN1956V | PN0537 | RN11003DN1456 | PN0538FN0609 | |
| 11.14~06.18 | 1400 | D4FC | PC715 RHD | RN11002V | PN0537 | DN1456 | FN0609 | |
| 06.18~03.20 | 1400 | G4LC | GB | RN2072VRN1956V | PN0537 | DN1456RN11003 | FN0609PN0538 | |
| 11.14~06.18 | 1400 | G4LC | HB EU | RN2072VRN1956V | PN0537 | RN11003DN1456 | FN0609PN0538 | |
| 11.14~06.18 | 1400 | G4LC | PC715 RHD | RN11002V | PN0537 | DN1456RN11003 | PN0538FN0609 | |
| 06.18~08.20 | 1400 | G4LC | PC718 RHD | RN11002V | PN0537PN0603 | DN1456 | FN0609 |
| 03.11~05.15 | 1200 | G4LA | DN511 5DR HB RHD | RN11002V | PN0537 | DN1456 | FN0609 | |
| 03.11~05.15 | 1200 | G4LA | PIH12 4DR SDN RHD | RN11002V | PN0537 | DN1456 | FN0609 | |
| 01.11~01.14 | 1400 | G4FA | PIH12 3DR HB | RN11002V | PN0537 | DN1456RN11003 | PN0538FN0609 | |
| 03.11~05.15 | 1400 | G4FA | PIH12 4DR SDN LHD | RN11002V | PN0537 | DN1456 | FN0609 | |
| 03.11~05.15 | 1400 | G4FA | PIH12 4DR SDN RHD | RN11002V | PN0537 | DN1456 | FN0609PN0538 | |
| 03.11~05.15 | 1400 | G4FA | PIH12 5DR HB LHD | RN11002V | PN0537 | RN11003DN1456 | FN0609PN0538 | |
| 03.11~05.15 | 1400 | G4FA | PIH12 5DR HB RHD | RN11002V | PN0537 | DN1456RN11003 | FN0609PN0538 |
| 01.15~04.17 | 1200 | G4LA | DN511 5DR HB RHD | RN11002V | PN0537 | DN1456 | FN0609 | |
| 07.15~03.17 | 1200 | G4LA | PIH15 5DR HB LHD | RN11002V | PN0537 | DN1456 | FN0609 | |
| 07.15~03.17 | 1200 | G4LA | PIH15 SDN LHD | RN11002V | PN0537 | DN1456 | FN0609 | |
| 11.14~06.17 | 1400 | G4FA | PIH15 5DR HB | RN11002V | PN0537 | RN11003DN1456 | FN0609PN0538 | |
| 01.15~06.17 | 1400 | G4FA | PIH15 SDN | RN11002V | PN0537 | DN1456 | FN0609 |
