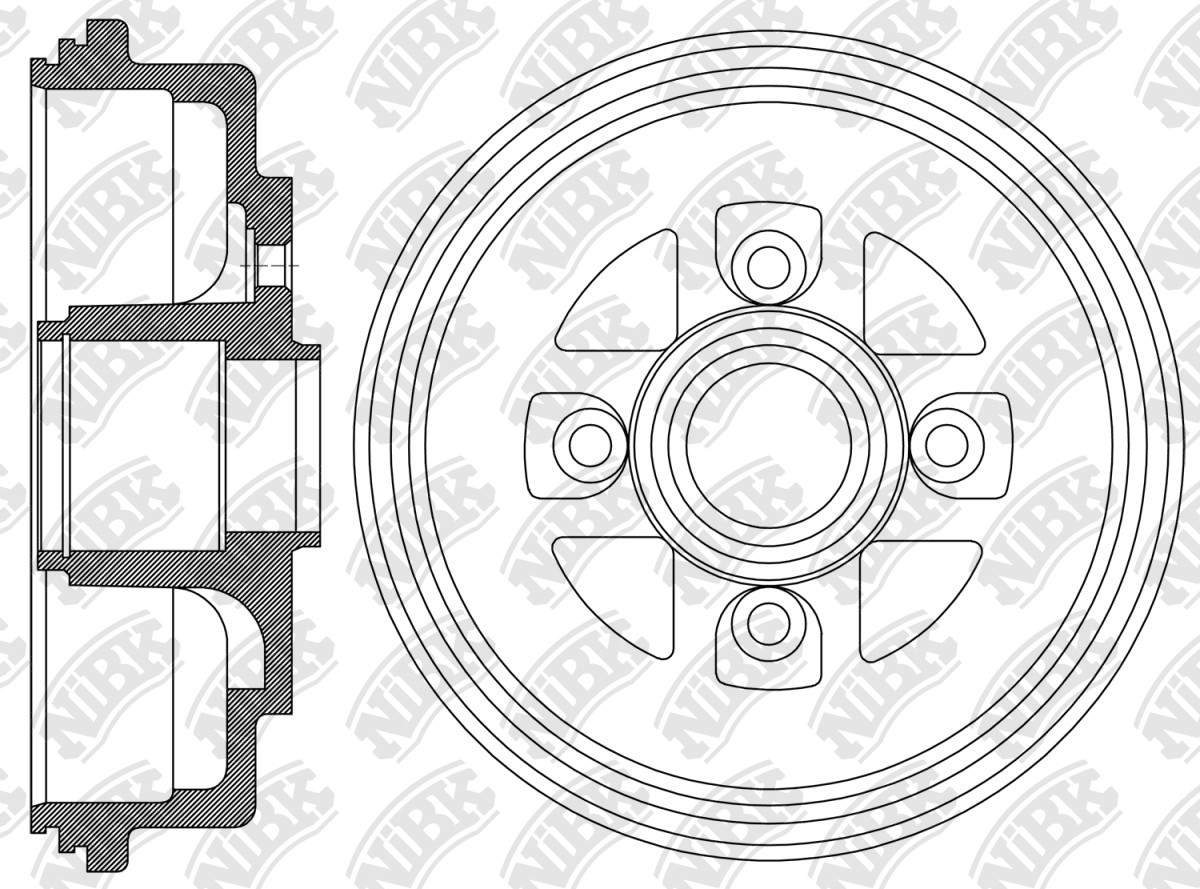

DRUM BRAKE » DN1368
Specification
Outter Ø
238
Num. of holes
4
Hole Ø
12
Centering Diameter
54-58.1
Height
81.5
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000
Variation
Cross Reference
SUZUKI
43511-63J00
SUZUKI
43511-63J00-000
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 05.07~09.10 | 1200 | K12B | ZC71S JPN | RN2245V | PN9529 | DN1368 | FN9969 | |
| 11.04~12.10 | 1300 | M13A | EZC11S RHD | RN2245V | PN9529 | DN1368 | FN9969 | |
| 03.04~04.08 | 1300 | M13A | RS413-3 RHD | RN2245V | PN9529 | RN1524DN1368 | PN8398FN9969 | |
| 03.08~01.11 | 1300 | M13A | RS413-4 | RN2245V | PN9529 | RN1524DN1368 | PN8398FN9969 | |
| 11.04~12.10 | 1300 | M13A | ZC11S JPN | RN2245V | PN9529 | DN1368 | FN9969 | |
| 01.05~12.07 | 1500 | M15A | JS2ZC21S RS415-2 RHD | RN2245V | PN9529 | DN1368 | FN9969 | |
| 01.04~03.08 | 1500 | M15A | RS415-1 LHD | RN1649VRN2245V | PN9529 | DN1368RN1524 | PN8398FN9969 | |
| 01.04~03.08 | 1500 | M15A | RS415-3 LHD | RN2245VRN1649V | PN9529 | DN1368RN1524 | FN9969FN0032PN8398 | |
| 03.08~01.11 | 1500 | M15A | RS415-4 LHD | RN2245VRN1649V | PN9529 | DN1368RN1524 | FN0032FN9969PN8398 | |
| 11.04~09.10 | 1500 | M15A | ZC21S | RN2245V | PN9529 | DN1368 | FN0032FN9969 | |
| 01.03~12.07 | 1500 | M15A | ZC21S RS415-1 LHD | RN2245V | PN9529 | DN1368 | FN9969 | |
| 01.03~12.07 | 1500 | M15A | ZC21S RS415-1 RHD | RN1649VRN1525VRN2245V | PN9805PN9529 | RN1524DN1368 | FN9969PN8398 | |
| 12.07~01.11 | 1500 | M15A | ZC21S RS415-3.4 RHD | RN2245V | PN9529 | DN1368 | FN9969 |
