NiBK Brakes:: Application Cross Reference and Image for NiBK : DRUM BRAKE : DN1209

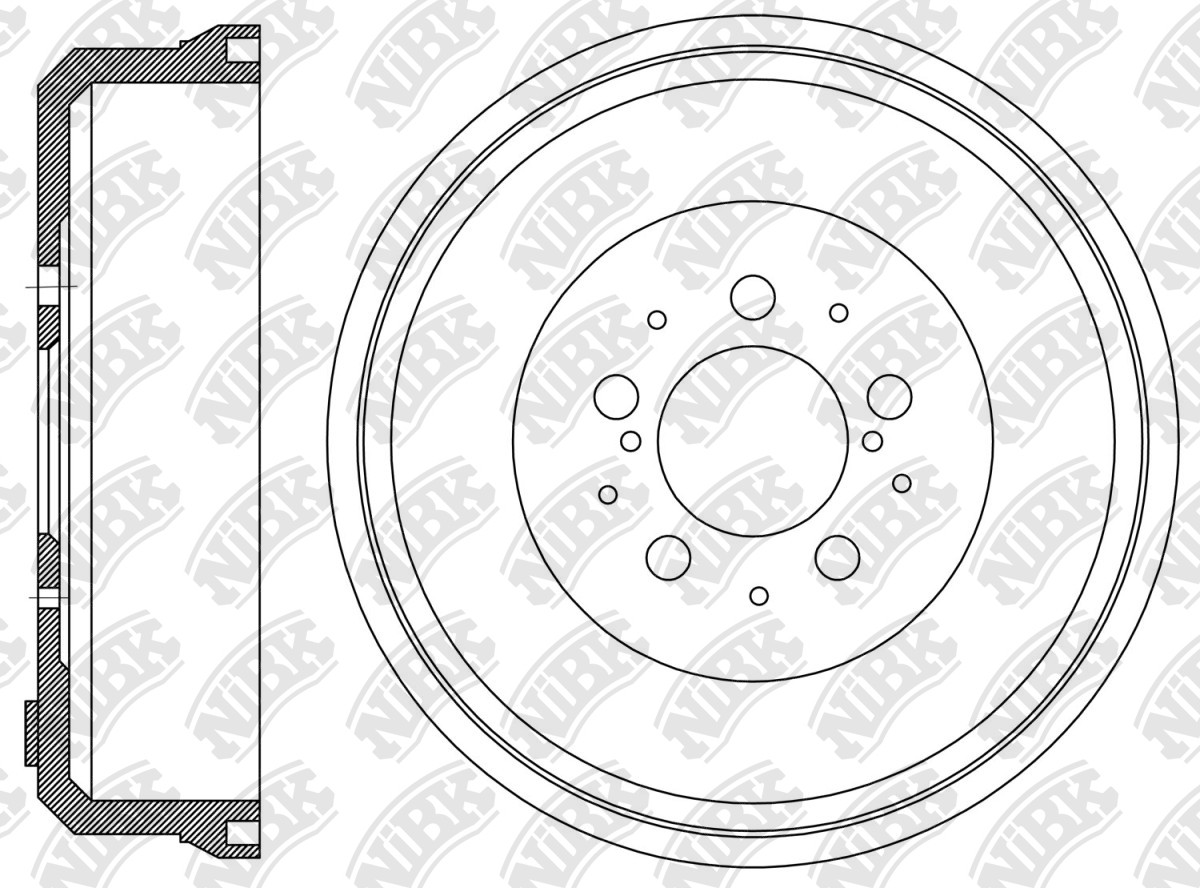

DRUM BRAKE » DN1209

Specification

Outter Ø

321

Num. of holes

5

Hole Ø

14.6

Centering Diameter

67.1

Height

82

Pitch Circle Ø

114.3

Drum Ø

270

Structure Material

G3000

Cross Reference

TOYOTA

42431-26080

TOYOTA

42431-26081

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

TOYOTA » Hiace

08.89~08.93	2400	2L	LH100G	RN1475V	PN1227	DN1209	FN2317
08.89~08.93	2400	2L	LH102V	RN1475V	PN1227	DN1209	FN2317
08.89~01.05	2400	2RZ-E	RZH113L	RN1475V RN1478V	PN1237 PN1516 PN1227	DN1209	FN2330 FN2317
08.89~08.95	2800	3L	LH113K	RN1266V RN1475V	PN1227	DN1209	FN2330 FN2317

TOYOTA » Hiace Commuter

08.89~08.93	2000	1RZ-E	RZH102L	RN1475V	FN2251 PN1227	DN1209	FN2330 FN2317
08.89~08.04	2400	2L	LH102L	RN1478V RN1475V	FN2251 PN1516 PN1227 PN1237	DN1209
08.89~02.06	2400	2L	LH104L	RN1475V RN1478V	PN1237 PN1227 FN2251 PN1516	DN1209	FN2317 FN2330
08.89~02.06	2400	2RZ	RZH103R	RN1478V RN1475V	PN1237 PN1227	DN1209	FN2330 FN2317
08.89~08.95	2800	3L	LH115R	RN1475V RN1478V	PN1237 PN1227	DN1209	FN2330 FN2317

TOYOTA » Hiace Regius

08.89~08.95	2000	1RZ-E	RZH100G	RN1478V RN1475V	PN1227 PN1516 PN1237	DN1209	FN2317 FN2330
08.89~08.95	2000	1RZ-E	RZH102V	RN1475V RN1266V	PN1227 PN1237 PN1516	DN1209	FN2317 FN2330
08.89~07.99	2000	1RZ-E	RZH110G	RN1475V	PN1227	DN1209	FN2317
08.89~08.95	2000	1RZ-E	RZH112V	RN1475V RN1266V	PN1237 PN1516 PN1227	DN1209	FN2317 FN2330 FN2335
08.89~08.93	2000	1RZ-E	RZH122V	RN1475V	PN1227	DN1209	FN2317
08.89~08.93	2400	2L	LH110G	RN1475V	PN1227	DN1209	FN2317
01.89~01.04	2400	2L-TE	LH100G	RN1475V	PN1227	DN1209	FN2317
10.90~08.93	2400	2L-TE	LH120G	RN1475V	PN1227	DN1209	FN2317
08.89~07.95	2400	2RZ-E	RZH101G	RN1478V RN1475V	PN1516 PN1227 PN1237	DN1209	FN2317 FN2330
08.89~07.95	2800	3L	LH113V	RN1475V RN1266V	PN1227 PN1516 PN1237	DN1209	FN2317 FN2330
08.86~07.95	2800	3L	LH123V	RN1475V RN1266V	PN1227 PN1237 PN1516	DN1209	FN2317 FN2330
08.89~07.95	2800	3L	LH125B	RN1475V RN1478V	PN1227	DN1209	FN2330 FN2317
08.93~08.95	3000	1KZ-TE	KZH100G	RN1478V	PN1516 PN1237	DN1209	FN2330
08.93~08.95	3000	1KZ-TE	KZH110G	RN1478V	PN1516 PN1237	DN1209	FN2330
08.95~08.95	3000	1KZ-TE	KZH110G	RN1478V	PN1237 PN1516	DN1209	FN2330
08.93~08.95	3000	1KZ-TE	KZH120G	RN1304V RN1478V	PN1237 PN1516	DN1209	FN2305 FN2330

TOYOTA » Hiace Van

08.89~02.06	2000	1RZ-E	RZH102	RN1475V RN1478V	PN1237 PN1227	DN1209	FN2317 FN2330
08.89~02.06	2400	2L	LH114R	RN1475V RN1478V	FN2251 PN1227 PN1516 PN1237	DN1209
08.89~08.05	2400	2RZ-E	RZH115L	RN1478V RN1475V	PN1237 PN1516 PN1227	DN1209	FN2330

TOYOTA » Hilux

08.97~05.98	2000	1RZ-E	RZN142L	RN1026V	PN1166	DN1209 DN1215	FN2330 FN2252
08.97~08.99	2000	1RZ-E	RZN147	RN1026V	PN1227	DN1209 DN1215	FN2330 FN2252
08.97~08.99	2000	1RZ-E	RZN147L	RN1026V	PN1166	DN1215 DN1209	FN2330 FN2252
08.94~08.97	2000	3Y-E	YN81	RN1026V	PN1166	DN1209	FN2330
08.94~08.97	2000	3Y-E	YN86	RN1026V	PN1166	DN1209	FN2330
08.88~08.97	2400	22R	RN80	RN1026V	PN1166	DN1215 DN1209 DN1107	FN2330 FN2260
08.85~05.98	2400	2L	LN145R	RN1475V RN1026V	PN1166 PN1830	DN1209 DN1215	FN2252 FN2330
08.97~03.06	2700	3RZ-F	RZN149L	RN1026V	PN1166	DN1209	FN2330
08.97~03.06	2700	3RZ-F	RZN149L	RN1026V	PN1166	DN1209	FN2330
08.97~05.98	2700	3RZ-F	RZN149R	RN1026V	PN1166	DN1215 DN1209	FN2252 FN2330
08.90~08.97	2800	3L	LN81	RN1026V	PN1166	DN1209	FN2330
