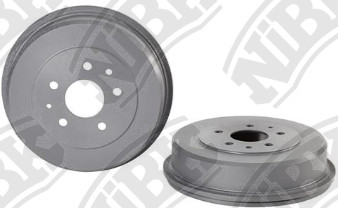

DRUM BRAKE » DN1107

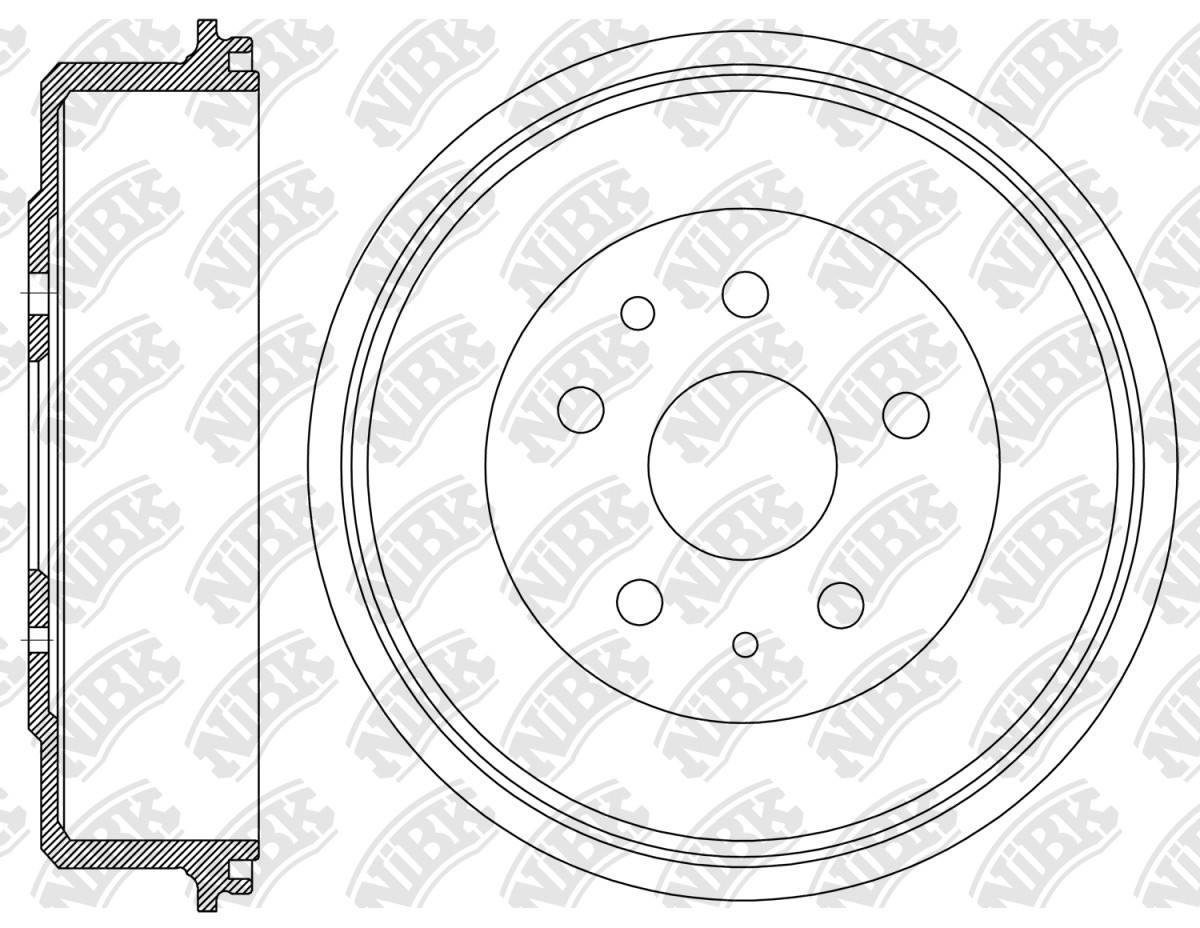

Specification
Outter Ø
302.5
Num. of holes
5
Hole Ø
14.5
Centering Diameter
67
Height
78
Pitch Circle Ø
114.3
Drum Ø
254
Structure Material
G3000
Cross Reference
TOYOTA
4243126050
TOYOTA
4243135030
TOYOTA
4243135130
TOYOTA
4243135190
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.96~07.01 | 2000 | 3Y | YY101 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 10.96~05.99 | 2800 | 3L | LY101 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 05.95~05.99 | 2800 | 3L | LY111 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 05.99~07.01 | 3000 | 5L | LY102 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 05.99~07.01 | 3000 | 5L | LY112 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 05.99~07.01 | 3000 | 5L | LY162 | RN1535V | PN1237 | DN1107DN1214 | FN2305FN1179FN2260FN2280FN2276 |
| 08.85~08.87 | 1600 | 1Y-J | YH80 | RN1026V | PN1166 | DN1107 | FN2260FN2276 | |
| 08.87~05.95 | 1800 | 2Y | YH81 | RN1026V | PN1166 | DN1107 | FN2260FN2276 | |
| 05.95~10.96 | 2000 | 3Y | YY101 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 09.91~05.95 | 2400 | 2L | LH90 | RN1026V | PN1166 | DN1107 | FN2276FN2260 | |
| 05.95~01.96 | 2800 | 3L | LY101 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 01.95~01.96 | 2800 | 3L | LY111 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 01.95~10.96 | 2800 | 3L | LY151 | RN1358V | PN1237 | DN1214DN1107 | FN2305FN2260 | |
| 04.95~10.96 | 2800 | 3L | LY161 | RN1358V | PN1237 | DN1214DN1107 | FN2260FN2305 |
| 10.81~09.88 | 1600 | 12R-J | RN35 | RN1341VDN1274 | PN1042FN2256 | DN1107 | FN2256FN2260 | |
| 08.88~09.99 | 1800 | 2Y | YN85 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 08.91~07.98 | 1800 | 2Y-J | YN56R | RN1026V | PN1166 | DN1107 | FN2260 | |
| 08.88~07.94 | 2400 | 22R | RN80 | RN1026V | PN1166 | DN1209DN1107DN1215 | FN2330FN2260 | |
| 08.88~09.99 | 2400 | 2L | LN85 | RN1026V | PN1166 | DN1107 | FN2260 | |
| 08.88~09.99 | 2400 | 2L | LN85L | RN1026V | PN1166 | DN1107 | FN2260 |
