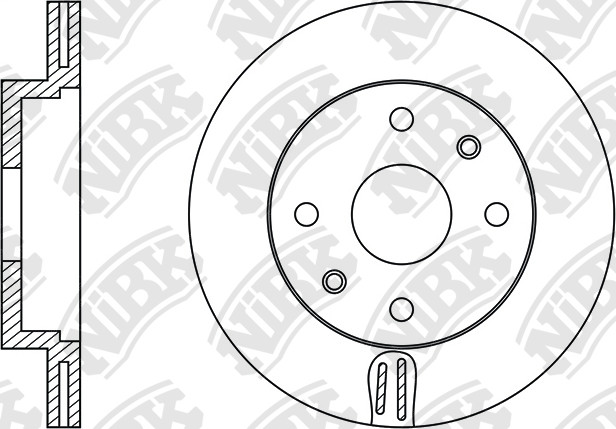

ROTOR DISC » RN1127V

Specification

Type
Vented
Disc Thickness (Max)
18
Num. of holes
4
Height
43
Centering Diameter
55
Front/Rear
Front
Pitch Circle Ø
100
Outter Ø
235
Drum Ø:
129
Structure Material
G3000
Disc Thickness (Min)
16

Cross Reference

BENDIX
562169B
BENDIX
562261B
TOYOTA
43512-0D010
TOYOTA
43512-52010
TOYOTA
43512-52020
TOYOTA
43512-52050
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.00~01.05 1500 1NZ-FE NCP12R RN1127V PN1471 FN2350
08.99~08.00 1500 1NZFE NCP12L RN1127VRN1144V PN1471PN1472 DN1218 FN2350
08.99~12.05 1000 1SZ-FE SCP11 RN1127V PN1471 DN1218 FN2350
08.99~04.05 1300 2NZ-FE NCP16 RN1127V PN1471 FN2342
08.99~11.05 1500 1NZ-FE NCP12 RN1127V PN1471 DN1218 FN2350
01.99~01.05 1000 1SZ-FE SCP10 RN1127V PN1471PN1472 DN1218 FN2350
01.99~01.05 1300 2NZ-FE NCP15 RN1127V PN1471 FN2342
08.99~01.05 1300 2NZ-FE NCP1_ RN1127V PN1471 FN2342
01.02~02.05 1300 2SZ-FE SCP13 RN1127V PN1471 FN2350
01.99~01.06 1000 1SZ-FE SCP10L RN1144VRN1127V PN1472PN0369PN1471 DN1239RN1308DN1206 PN1454FN2386FN2342 FN0614
01.99~01.05 1000 1SZ-FE SCP10R RN1144VRN1127V PN1471PN0369PN1472 RN1308DN1239 FN2350PN1454FN2386 FN0614
08.99~12.02 1300 2NZ-FE NCP10L RN1127VRN1144V PN1471PN1472 RN1308DN1206 FN2342PN1454
08.99~12.02 1300 2NZ-FE NCP10R RN1127VRN1144V PN1472PN1471 DN1206RN1308 FN2342PN1454
08.99~12.06 1300 2NZ-FE NCP11L RN1127V PN1471 FN2350
05.02~11.05 1300 2SZ-FE SCP12L RN1127VRN1144V PN1472PN0369 DN1239RN1308 FN2386PN1454 FN0614
01.99~01.01 1000 1SZ-FE SCP RN1127V PN1471PN1472 FN2342PN1454
08.99~08.05 1300 2NZ-FE NCP10R RN1127V PN1471 DN1218 FN2350
08.99~01.06 1300 2NZ-FE NCP11L RN1127V PN1471 DN1218 FN2350
03.99~08.05 1500 1SZ-FE SCP10R RN1127V PN1471 DN1218 FN2350

Exemption from liability: the catalog data is advisory and can be used for reference only
