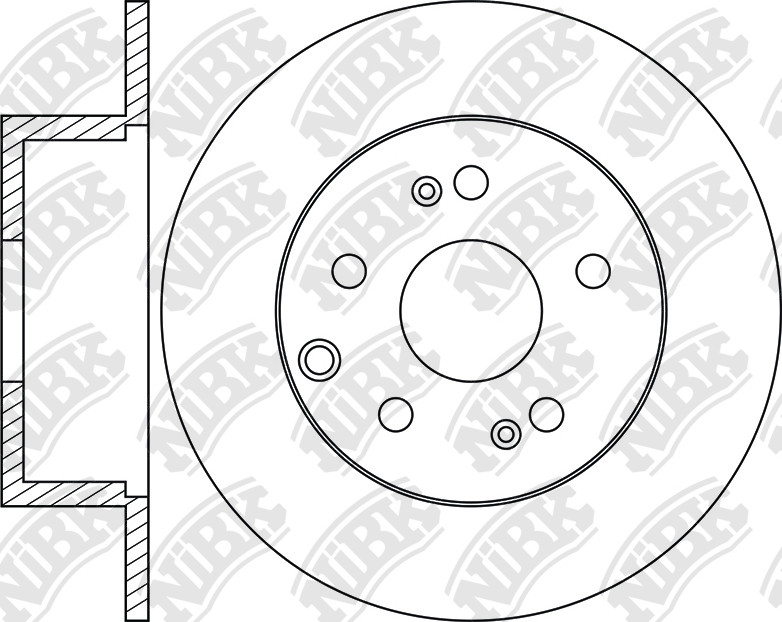

ROTOR DISC » RN2002

Specification

Type
Solid
Outter Ø
302
Num. of holes
5
Disc Thickness (Max)
11
Height
71.5
Centering Diameter
69
Pitch Circle Ø
114.3
Drum Ø:
190
Front/Rear
Rear
Disc Thickness (Min)
9.4
Structure Material
G3000

Cross Reference

HYUNDAI
58411-2B000
HYUNDAI / KIA
58411-0W000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.06~07.09 2200 D4EB CM RN1349V PN0446 RN2002 PN0415PN0447 FN0664
10.05~09.06 2200 D4EB PA06 LHD RN2287V PN0446 RN2002 PN0447 FN11005
09.06~07.09 2200 D4EB PCM 06 LHD RN2287V PN0446 RN2002 PN0447 FN11005
09.06~01.10 2700 G6EA CM GL RN1349VRN2287V PN0446 RN2002 PN0447 FN11005
09.06~01.10 2700 G6EA CM LHD RU RN1349V PN0446 RN2002 PN0447 FN11005
12.05~01.10 2700 G6EA CM SG RHD RN2287VRN1349V PN0446 RN2002 PN0447 FN11005
01.06~08.09 2700 G6EA CM US RN2287V PN0446 RN2002 PN0447 FN11005
04.06~07.09 3300 G6DB CMA06 RN2287V PN0446 RN2002 PN0447 FN11005
04.06~07.09 3300 G6DB PCM06 RN2287V PN0446 RN2002 PN0447 FN11005

Exemption from liability: the catalog data is advisory and can be used for reference only
