NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2633V

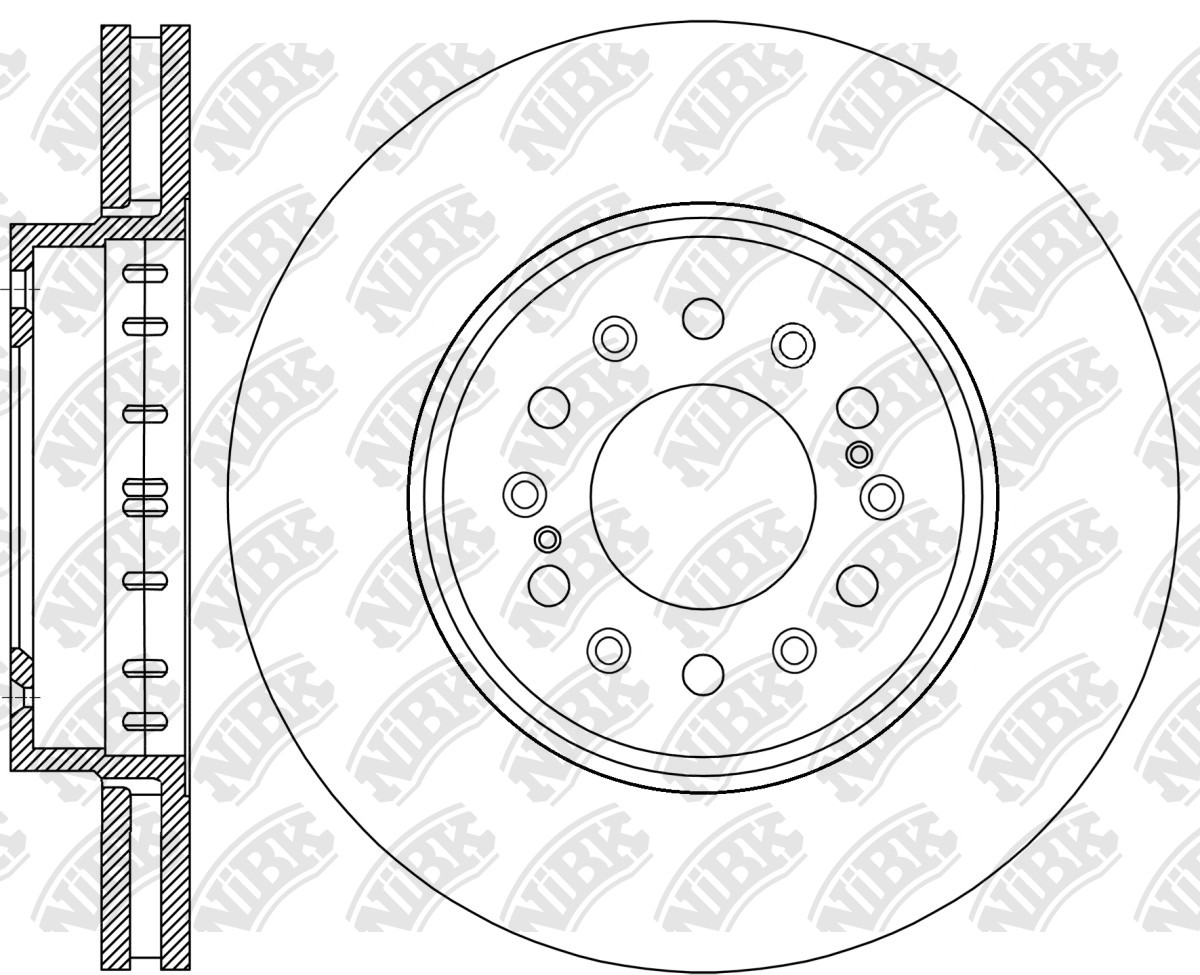

ROTOR DISC » RN2633V

Specification

Type

Vented

Outter Ø

300

Num. of holes

6

Hole Ø:

12.6

Disc Thickness (Max)

30

Disc Thickness (Min)

28

Height

61.1

Centering Diameter

101

Pitch Circle Ø

139.7

Drum Ø:

171

Front/Rear

Front

Structure Material

G3000

Cross Reference

GM

98376752

ISUZU

8-98376-752-0

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

ISUZU » D-Max

09.19~	1900	RZ4E-TC	TFS87 ML RHD	RN2633V	PN2401 PN2402	DN1440	FN6741
07.20~	3000	4JJ3-TCX	TFS40 RHD	RN2416V RN2633V	PN2401 PN2402	DN1440	FN6741

MAZDA » BT-50

06.20~

3000

4JJ3-TCX

MP2TFS40

RN2416V RN2633V

PN2402 PN2401

DN1440

FN6741
