NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN2416V

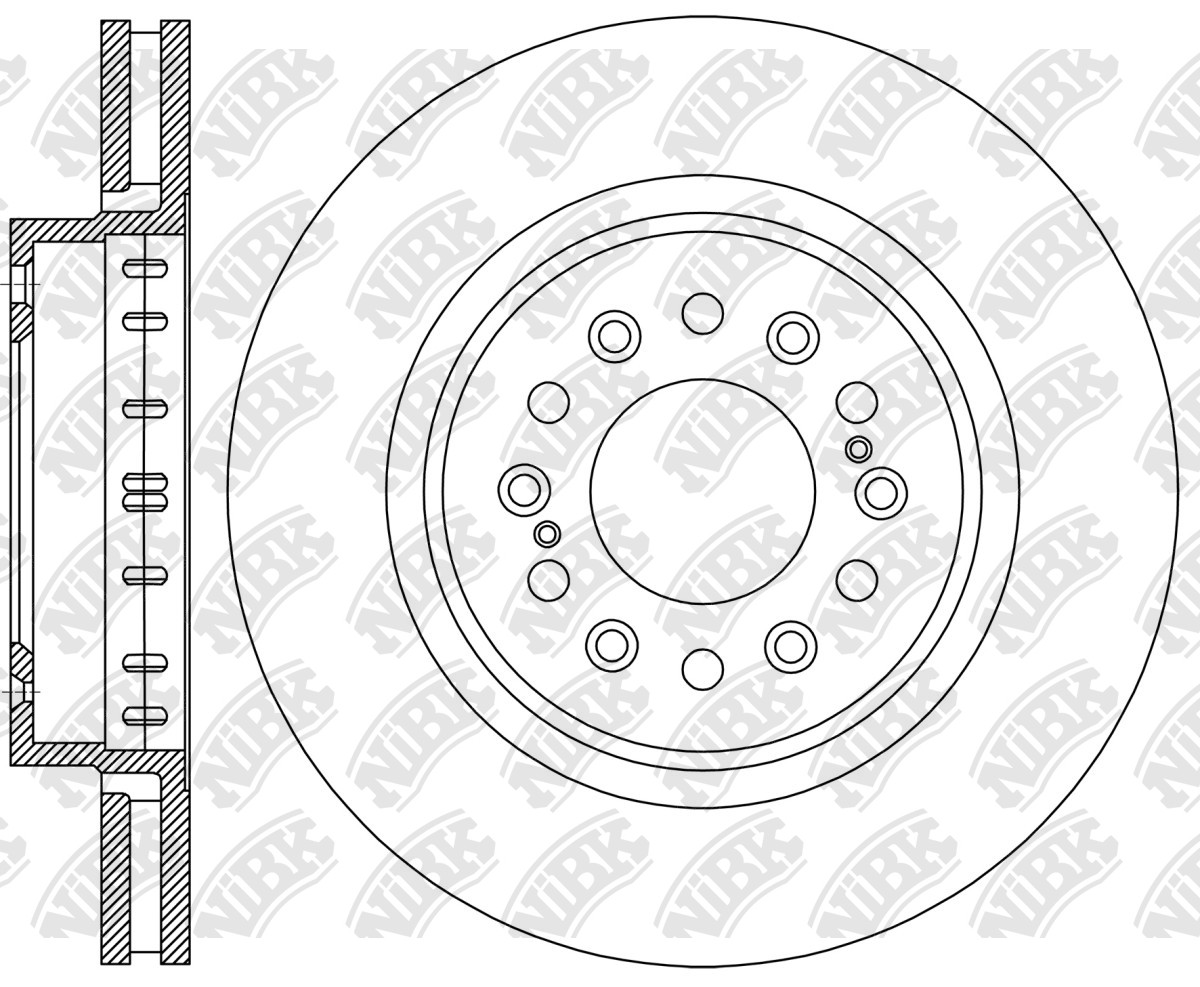

ROTOR DISC » RN2416V

Specification

Type

Vented

Outter Ø

320

Num. of holes

6

Hole Ø:

12.6

Disc Thickness (Max)

30

Disc Thickness (Min)

28

Height

61.1

Centering Diameter

101

Pitch Circle Ø

139.7

Drum Ø:

171

Front/Rear

Front

Structure Material

G3000

Cross Reference

BENDIX AUS

BR3100

GM

98376754

GM

98376755

ISUZU

8-98376-753-0

ISUZU

8-98376-754-0

ISUZU

8-98376-755-0

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

ISUZU » D-Max

02.17~	1900	RZ4E-TCX	TFS87	RN2416V	PN2401	DN1440	FN6741
07.20~	3000	4JJ3-TCX	TFS40 RHD	RN2416V RN2633V	PN2402 PN2401	DN1440	FN6741

ISUZU » MU-X

11.20~

3000

4JJ1-TCX

UCS40

RN2416V

PN2401

RN2649V

PN2404

MAZDA » BT-50

06.20~	1900	RZ4E-TCX	MP2TFS87	RN2416V	PN2401	DN1440	FN6741
06.20~	3000	4JJ3-TCX	MP2TFS40	RN2633V RN2416V	PN2402 PN2401	DN1440	FN6741
