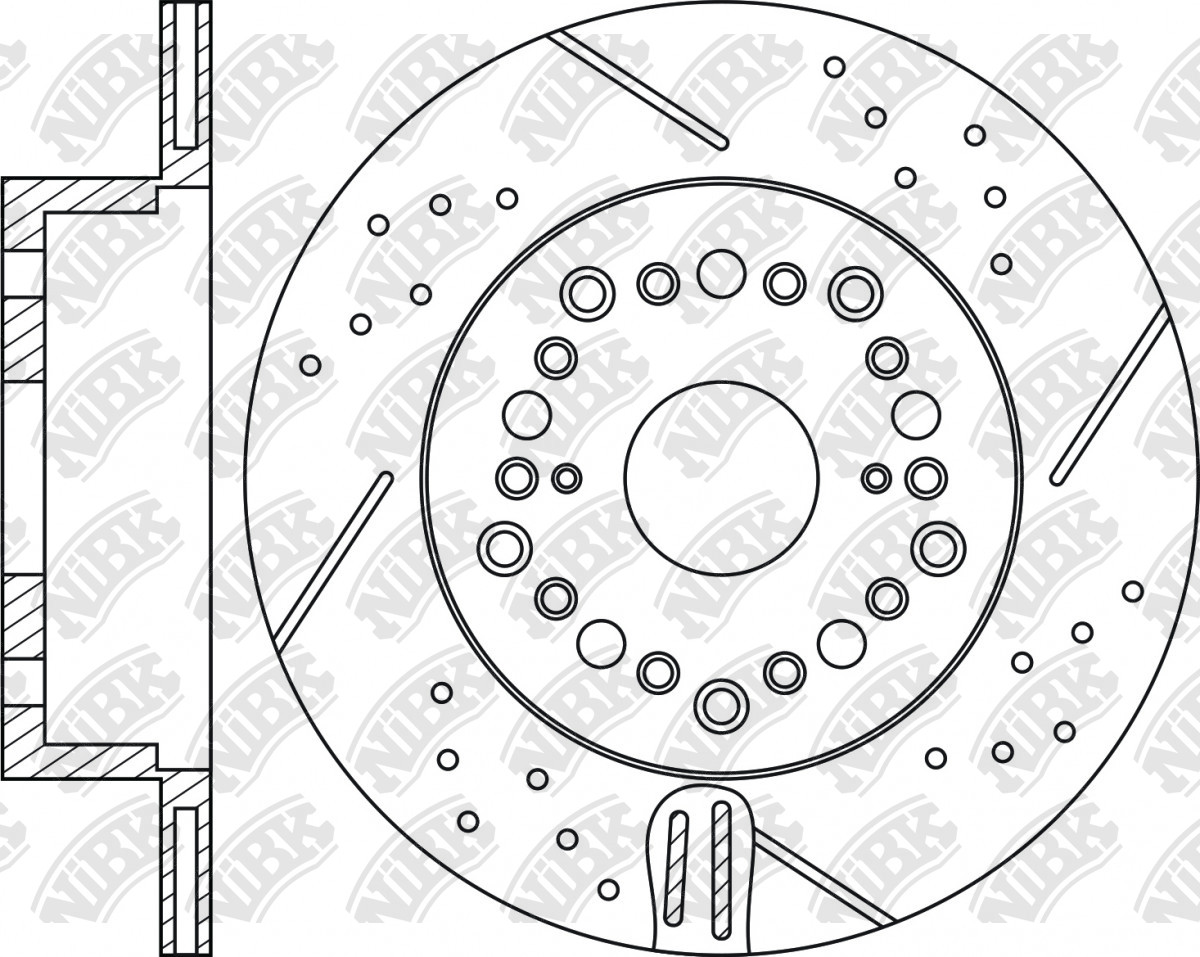

PERFORMANCE ROTOR DISC » RN1488DSET
Specification
Outter Ø
306.7
Num. of holes
5
Disc Thickness (Max)
16
Height
67
Centering Diameter
62.1
Structure Material
GG20
Disc Thickness (Min)
15
Pitch Circle Ø
120
Drum Ø:
188/190
Variation
Cross Reference
LEXUS
42431-24031
LEXUS
42431-30140
TOYOTA
42431-24031
TOYOTA
42431-24051
TOYOTA
42431-30100
TOYOTA
42431-30140
TOYOTA
42431-30190
TOYOTA
42431-30240
TOYOTA
42431-40080
TOYOTA
42431-50040
TOYOTA
42431-50050
TOYOTA
42431-50060
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 05.89~10.94 | 4000 | 1UZ-FE | UCF10 | RN1150V | PN1324 | RN1488V | PN1326 | FN0567 |
| 10.94~08.00 | 4000 | 1UZ-FE | UCF20 | PN1370 | RN1488V | PN1326 | FN0567 |
| 10.91~08.97 | 3000 | 2JZ-G#E | JZS147 | RN1150VRN1531V | PN1324PN1228PN1231 | RN1488V | PN1363 | FN0567 |
| 10.91~08.97 | 3000 | 2JZ-GTE | JZS147 | RN1150V | PN1324PN1231 | RN1488V | PN1363 |
| 11.89~10.94 | 4000 | 1UZ-FE | UCF11 | RN1150V | PN1228PN1324 | RN1488V | PN1326PN1252 | |
| 10.94~08.00 | 4000 | 1UZ-FE | UCF20 | PN1370 | RN1488V | PN1326 | FN0567 | |
| 10.94~08.00 | 4000 | 1UZ-FE | UCF21 | PN1370 | RN1488V | PN1326 | FN0567 |
