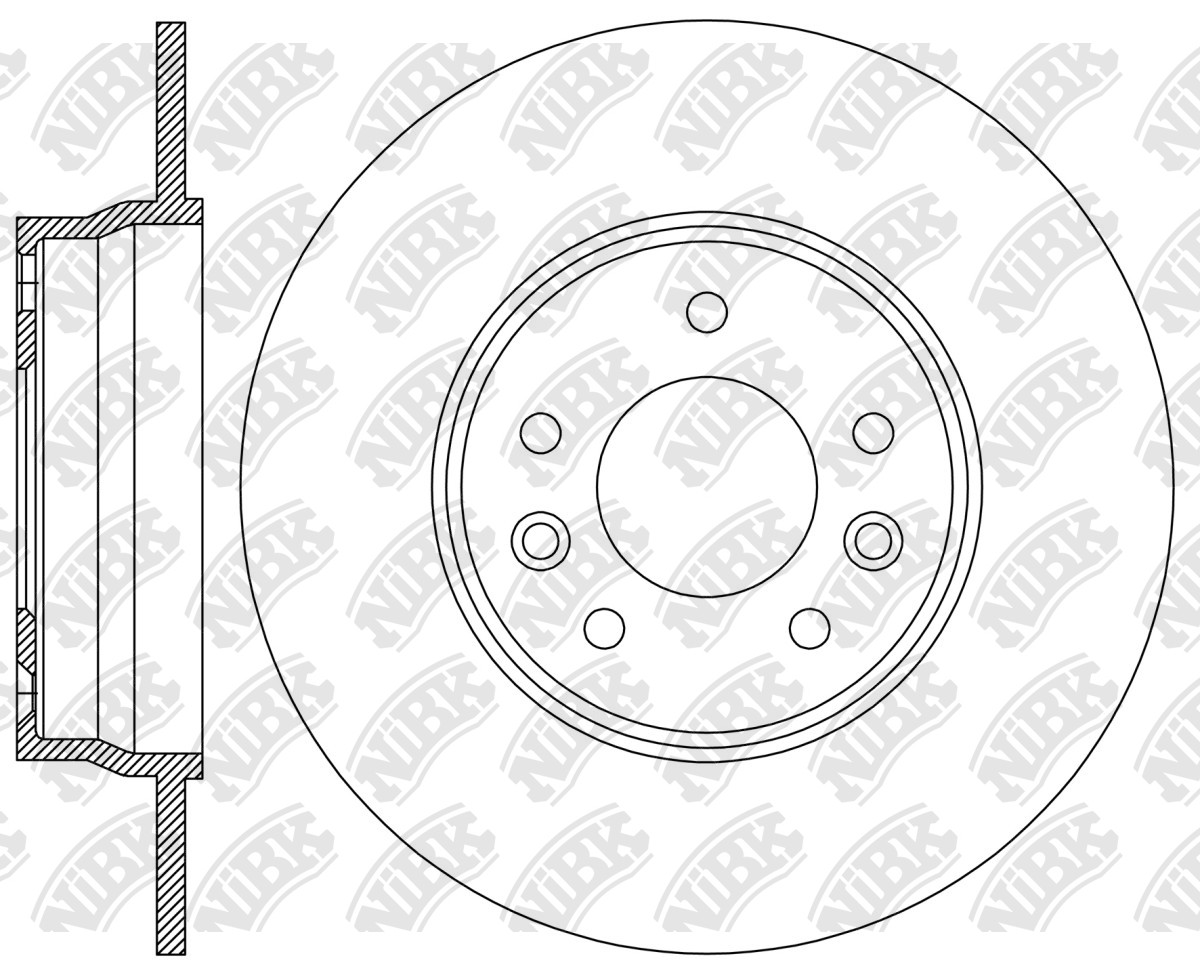

ROTOR DISC » RN2428

Specification

Type
Solid
Outter Ø
260
Num. of holes
5
Hole Ø:
15.7
Disc Thickness (Max)
8
Disc Thickness (Min)
7
Height
51.5
Centering Diameter
68
Pitch Circle Ø
114.3
Drum Ø:
148.2
Front/Rear
Rear
Structure Material
G3000

Cross Reference

MITSUBISHI
MQ005252
NISSAN
43206-00Q1A
NISSAN
43206-4941R
RENAULT
44 0A 065 75R
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.23~ 1600 H4MB6C6 VSEH6 RN2350V PN0551 RN2428 PN0730
08.19~ 1000 HR10DDT F16 RN43007V PN0551 RN2428 PN0730
01.20~ 1000 HR10DDT F16E AR RN2298V PN2017 RN2428DN1625 PN0381
03.22~ 1600 HR16DE F16 RN43007V PN0551 RN2428 PN0730
01.20~ 1000 H4D RN43007V PN0551 RN2428 PN0381
10.20~ 1000 H5D 490 HB / SDN / EST RN43007V PN0794 RN2428 PN0730PN0381PN0019W
12.15~ 1200 H5F4# HB / SDN / EST RN43007V PN0794 RN2428 PN0019WPN0381PN0730
12.15~ 1200 H5F408 B9MR HB LHD RN43007V PN0794 RN2094HRN2428 PN0730PN0381PN0019W
09.16~ 1300 H5H 470 K9A RN2350V PN43003 RN2428 PN0381
04.16~ 1500 K9K 656 K9A3 RN43007V PN0794 RN2428RN3009H PN0019WPN0381
01.20~ 1500 K9K 876 B9A6 HB RN43007V PN0794 RN2428RN2094H PN0019W

Exemption from liability: the catalog data is advisory and can be used for reference only
