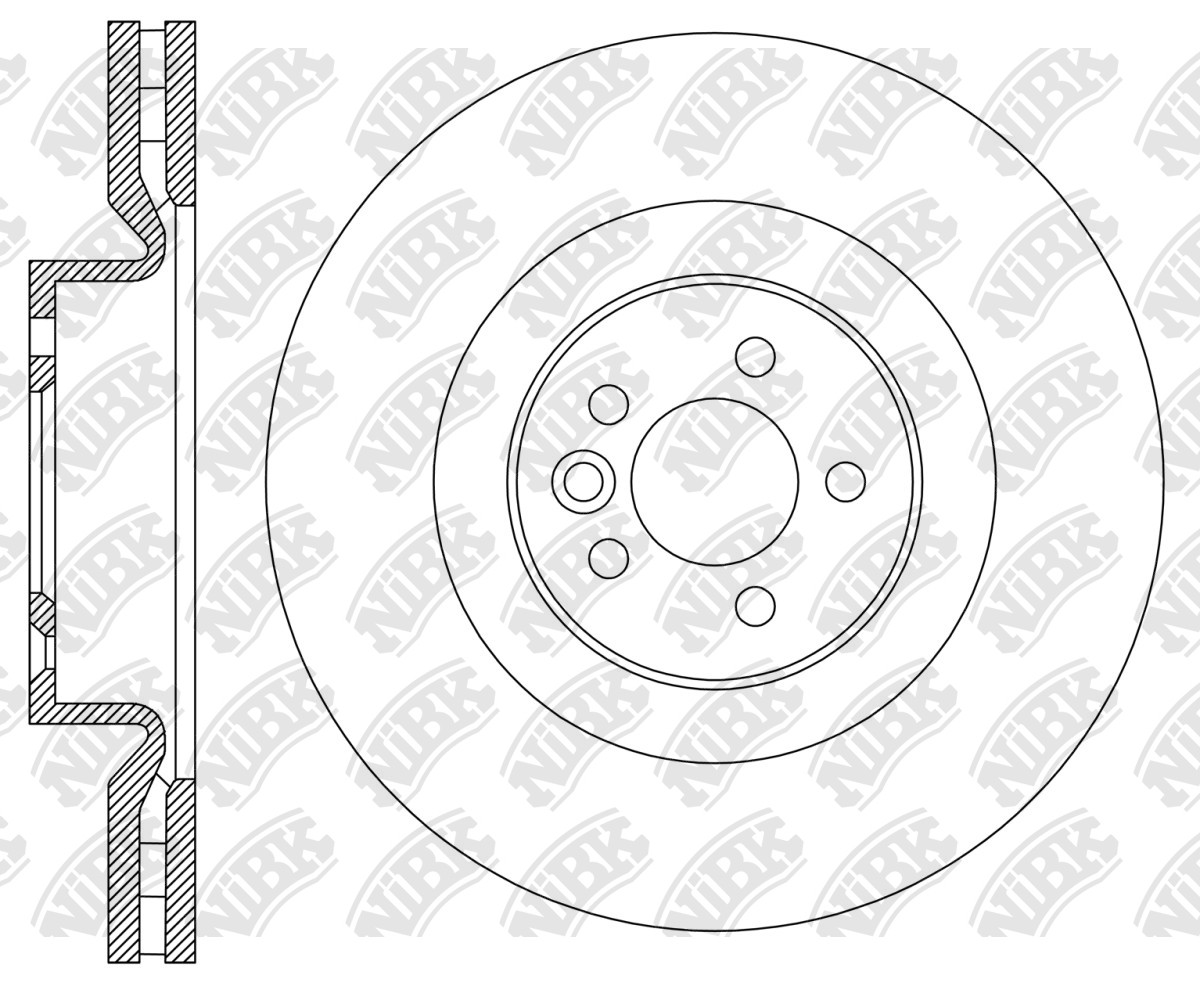

ROTOR DISC » RN2343V

RN2343V

Specification

Type
Vented
Outter Ø
363
Num. of holes
5
Hole Ø:
14.5
Disc Thickness (Max)
33
Disc Thickness (Min)
31
Height
62
Centering Diameter
79
Pitch Circle Ø
120
Drum Ø:
225
Front/Rear
Front
Structure Material
G3000

Cross Reference

LAND ROVER
LR098967
LAND ROVER
LR132809
LAND ROVER
LR161893
LAND ROVER
LR161896
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

LAND ROVER   »   Defender 110

09.20~ 3000 AJ20D6 110 RN2343V PN47004 PN47001

LAND ROVER   »   Defender Station Wagon

09.20~ 3000 AJ20P6 L663 RN2343V PN47004 PN47001

LAND ROVER   »   Discovery V

09.16~ 2000 204DTA L462 RN2343V PN47004 RN1731V PN47001
09.17~ 2000 AJ200P/PT204 L462 RN2343V PN47004 RN1731V PN47001
09.16~ 3000 306PS L462 RN2343V PN47004 RN1731V PN47001
