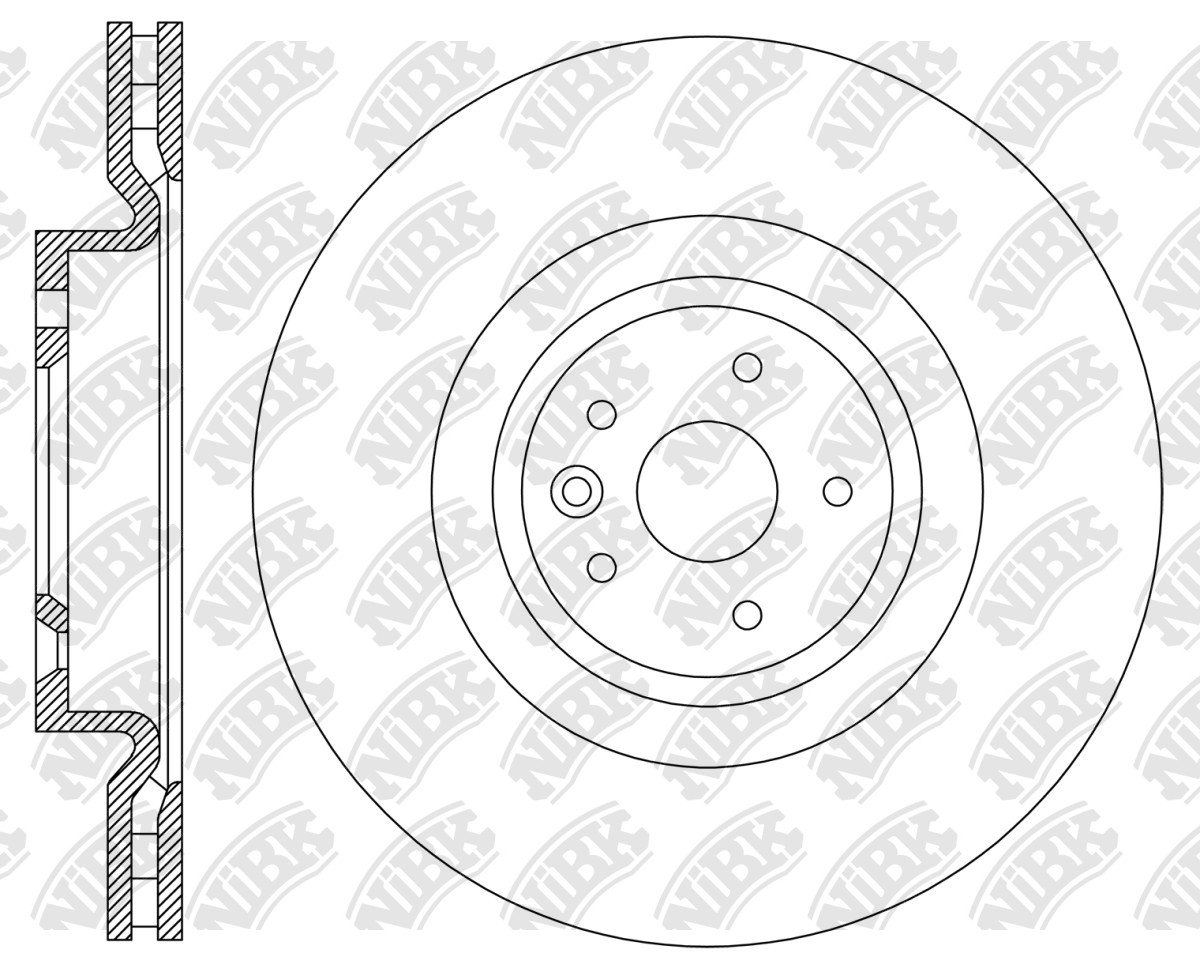

ROTOR DISC » RN2339V

Specification

Type
Vented
Outter Ø
325
Num. of holes
5
Hole Ø:
14.5
Disc Thickness (Max)
25
Disc Thickness (Min)
23
Height
48.9
Centering Diameter
79
Pitch Circle Ø
120
Drum Ø:
165
Front/Rear
Rear
Structure Material
G3000

Cross Reference

LAND ROVER
LR084067
LAND ROVER
LR132810
LAND ROVER
LR161901
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
09.19~ 2000 AJ200P/PT204 L663 RN2151V PN0941 RN2339V PN47001
04.13~ 3000 306DT (258PS) LW RN2151V PN0941 RN2339V PN47001

Exemption from liability: the catalog data is advisory and can be used for reference only
