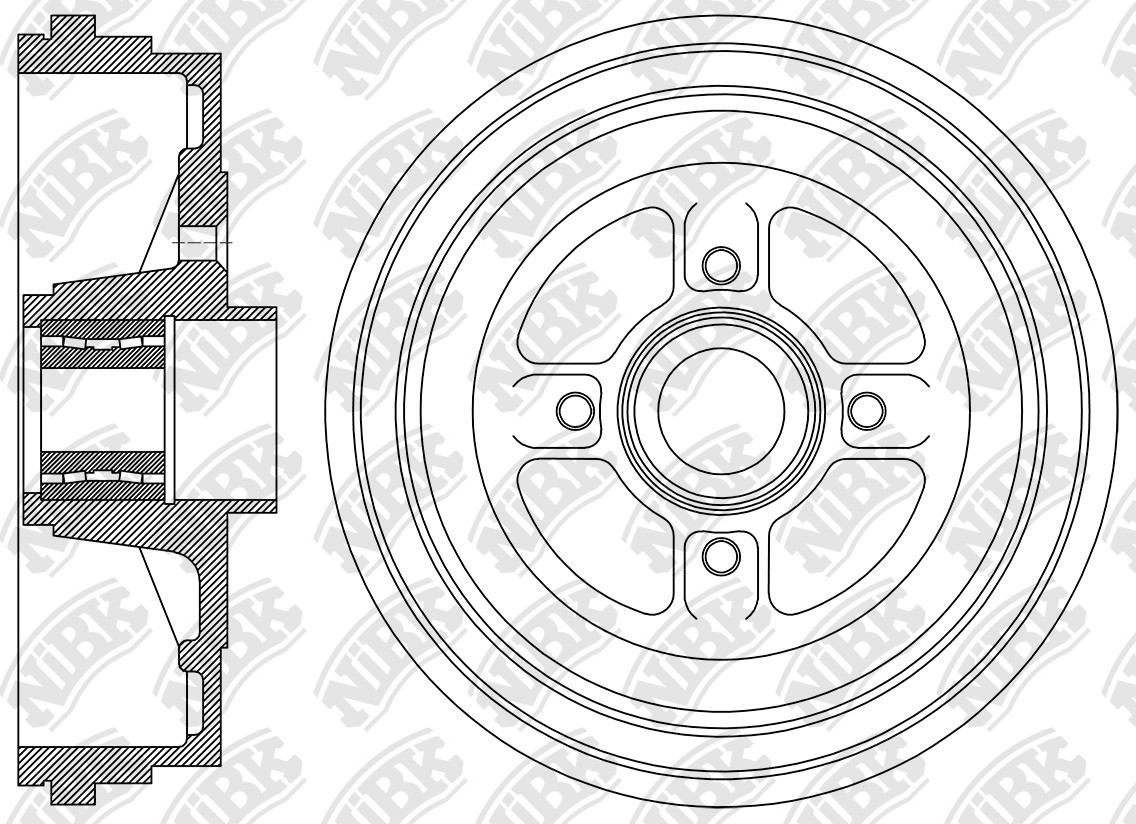

DRUM BRAKE » DN1611H

Specification

Outter Ø
237
Num. of holes
4
Hole Ø
M12x1.5
Centering Diameter
51.9-52.2
Height
76
Pitch Circle Ø
100
Drum Ø
203.3
Structure Material
G3000
Notes
w/Wheel Bearing, w/ABS Sensor Ring

Cross Reference

NISSAN
43206-AX650
RENAULT
43 20 217 82R
RENAULT
82 00 276 843
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
11.02~05.05 1000 CG10DE K12E RN1187V PN2800 DN1611H FN1255
11.02~05.05 1200 CG12DE K12E RN1187V PN2800 DN1611H FN1255
05.05~07.10 1200 CR12DE K12E RN1187V PN2800 DN1611H FN1255
11.02~05.05 1300 CGA3DE K12E RN1187V PN2800 DN1611H FN1255
05.05~07.10 1400 CR14DE K12E RN1187V PN2800 DN1611H FN1255
02.03~07.10 1500 K9K K12E RN1187V PN2800 DN1611H FN1255
05.05~07.10 1600 HR16DE K12E RN1187V PN2800 DN1611H FN1255
09.05~03.09 1400 CR14DE CK12E RN1187V PN2452PN9805 DN1611H FN1255
09.05~03.09 1600 HR16DE CK12E RN1187V PN9805 DN1611H FN1255
01.06~08.13 1400 CR14DE E11 RN1187V PN9805 DN1611H FN1255
01.06~08.13 1500 K9K E11 RN1187V PN2800 DN1611H FN1255
01.06~08.13 1600 HR16DE E11E RN1187VRN22004V PN2800 DN1611H FN1255
10.08~09.12 1600 HR16DE ZE11 RN22004V PN2452 DN1611H FN1261
05.05~03.09 1200 D4F 7# CR# 3DR RN1126V PN2800 DN1611HRN1173 FN1255PN0019W
04.09~03.13 1600 K4M 862 CR10 3DR RN1126V PN2800PN9805 RN1173DN1611H PN0019WFN1255
07.04~04.08 1200 D4F 740 JP0T RHD RN1187V PN2800 DN1611HRN1173 FN1255PN0019W
07.04~12.12 1600 K4M 791 JP0B RN1187V PN2800PN9805 DN1611HRN1173 PN0019WFN1255

Exemption from liability: the catalog data is advisory and can be used for reference only
