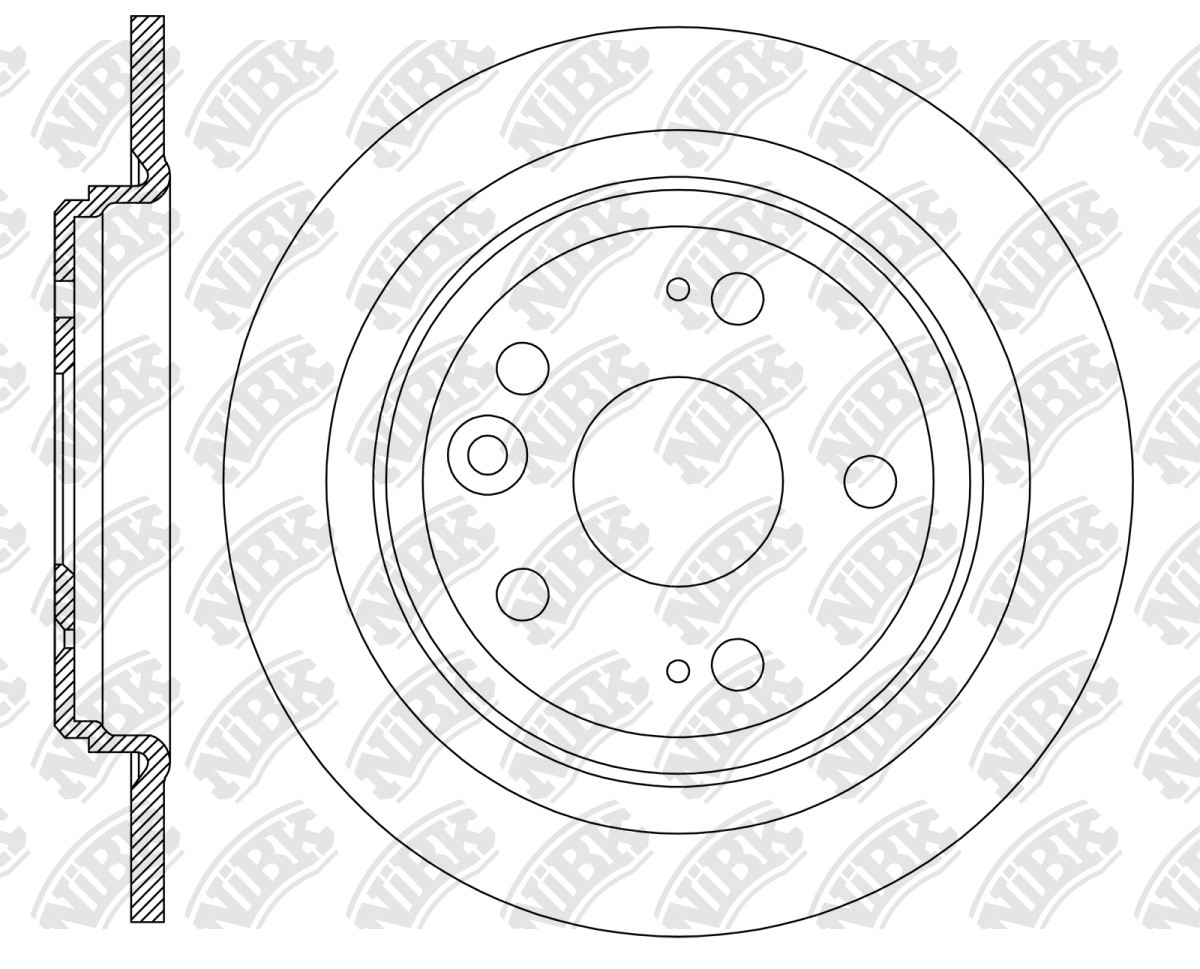

ROTOR DISC » RN2228
Specification
Type
Solid
Outter Ø
310
Num. of holes
5
Disc Thickness (Max)
10
Disc Thickness (Min)
8
Height
38.7
Centering Diameter
64.1
Pitch Circle Ø
114.3
Front/Rear
Rear
Structure Material
G3000
Drum Ø:
171
Cross Reference
HONDA
42510-TLA-A00
HONDA
42510-TLY-H00
HONDA
42510-TMC-T00
HONDA
42510-TNY-A00
HONDA
42510-TNY-E00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.18~ | 1500 | L15B | RW1 JPN | PN8802 | RN2228 | PN8817 | ||
| 08.18~ | 1500 | L15B | RW2 JPN | PN8802 | RN2228 | PN8817 | ||
| 10.16~09.19 | 1500 | L15B# | RW1 VTN | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.19~03.22 | 1500 | L15B# | RW2 KH LHD | RN2227V | PN0647PN8818 | RN2228 | PN8817 | |
| 10.16~ | 1500 | L15BG | HRW18 LHD | PN8802 | RN2228 | PN8817 | ||
| 10.16~09.19 | 1500 | L15BY | HRW18 RHD | PN8802 | RN2228 | PN8817 | ||
| 09.19~ | 1500 | L15BY | HRW18 RHD | PN8802 | RN2228 | PN8817 | ||
| 10.16~ | 1500 | L15BY | HRW28 RHD | PN8802 | RN2228 | PN8817 | ||
| 10.16~ | 1500 | L15Y | RW1 RHD KU | PN8802 | RN2228 | PN8817 | ||
| 10.16~ | 1500 | L15Y | RW1 RHD MA | PN8802 | RN2228 | PN8817 | ||
| 09.19~ | 1600 | N16A# | RW7 LHD | PN8802 | RN2228 | PN8817 | ||
| 10.16~09.19 | 1600 | N16A# | RW8 LHD PH | PN8802 | RN2228 | PN8817 | ||
| 12.18~ | 2000 | LFB | RT5 JPN | RN2347V | PN8831 | RN2228 | PN8817 | |
| 12.18~ | 2000 | LFB | RT6 | RN2347V | PN8802 | RN2228 | PN8817 | |
| 10.16~09.19 | 2000 | R20# | HRW38 RHD | PN8802 | RN2228 | PN8817 | ||
| 09.19~ | 2000 | R20A9 | HRW38 RHD | PN8802 | RN2228 | PN8817 | ||
| 08.17~12.20 | 2000 | R20A9 | RW4 LHD | RN2227V | PN8818 | RN2228 | PN8817 | |
| 10.16~ | 2400 | K24W9 | RW5 | RN2227V | PN8818 | RN2228 | PN8817PN8807 | |
| 10.16~ | 2400 | K24W9 | RW6 | RN2227V | PN8818 | RN2228 | PN8817 | |
| 01.16~ | 2400 | K24Z | RW3 | RN2227V | PN8818 | RN2228 | PN8817 |
| 10.16~09.19 | 1500 | L15B7 | RW1 KA | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.19~02.23 | 1500 | L15B7 | RW1 KK | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.19~ | 1500 | L15B7 | RW2 US/CND | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.22~ | 1500 | L15BE | RS4 | RN2227V | PN8818 | RN2228 | PN8817 | |
| 09.22~ | 2000 | LFC3 | RS5 | PN8831 | RN2228 | PN8817 | ||
| 09.22~ | 2000 | LFC3 | RS6 | PN8831 | RN2228 | PN8817 |
| 04.23~ | 1500 | L15BY | RZ3 ME | PN8818 | RN2228 | PN8828 | ||
| 04.23~ | 2000 | LFCH4 | RZ4 JP | PN8818 | RN2228 | PN8828 | ||
| 04.23~ | 2000 | LFCH4 | RZ6 JP | PN8818 | RN2228 | PN8828 |
