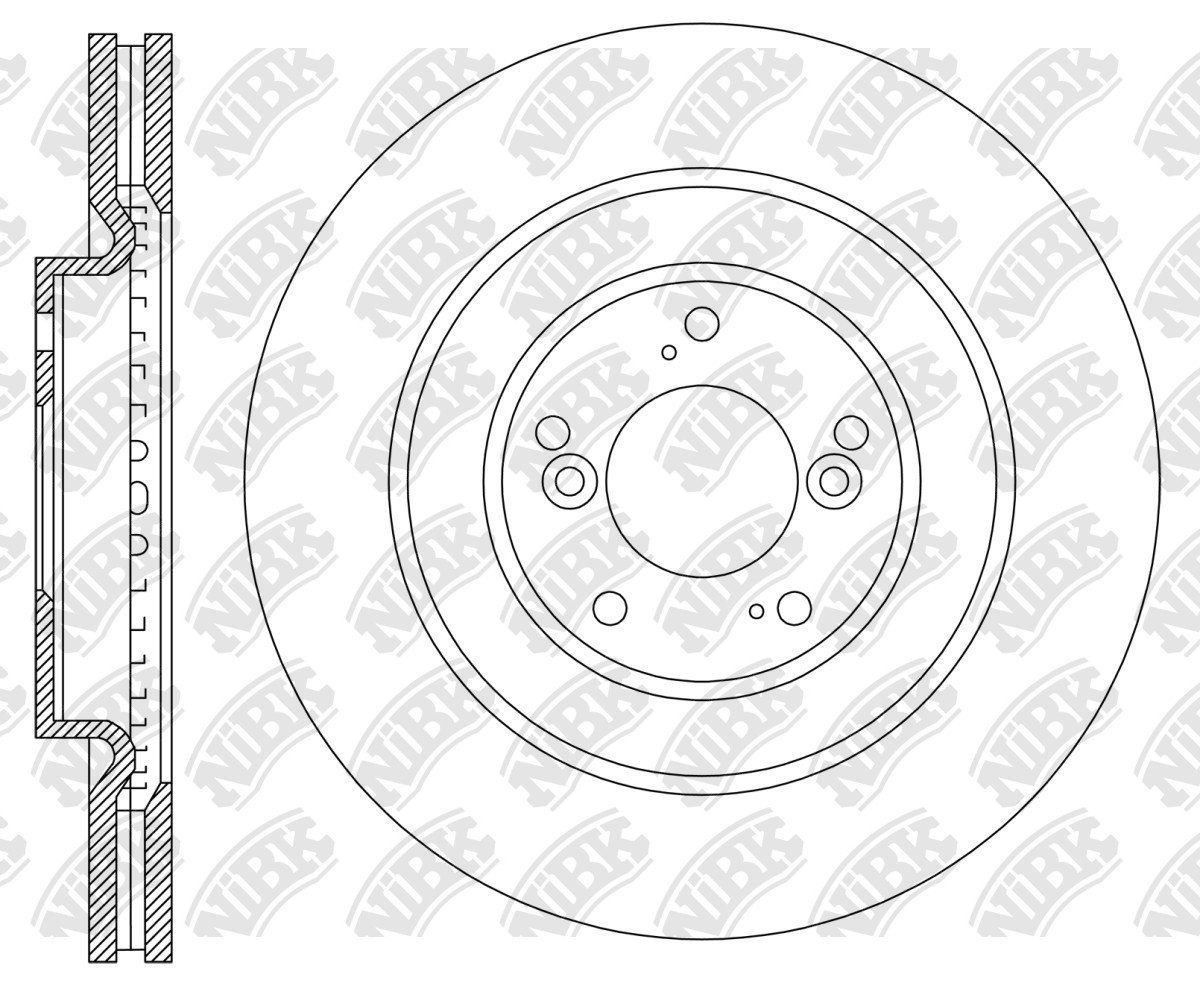

ROTOR DISC » RN2347V

Specification

Type

Vented

Outter Ø

320

Num. of holes

5

Hole Ø:

12.8

Disc Thickness (Max)

28

Disc Thickness (Min)

26

Height

47.2

Centering Diameter

64.1

Pitch Circle Ø

114.3

Drum Ø:

154.3

Front/Rear

Front

Structure Material

G3000

Cross Reference

HONDA

45251-TNY-E01

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HONDA » CR-V

12.18~	2000	LFB	RT5 JPN	RN2347V	PN8831	RN2228	PN8817
12.18~	2000	LFB	RT6	RN2347V	PN8802	RN2228	PN8817

HONDA (DONGFENG) » UR-V

06.20~05.23

2000

K20C3

TG6

RN2347V

PN8831

PN8817

HONDA (GAC) » Avancier

03.17~08.23	1500	L15BD	TG1	RN2347V	PN8831		PN8817
10.16~08.23	2000	K20C3	TG2	RN2347V	PN8831		PN8817
10.16~08.23	2000	K20C3	TG3	RN2347V	PN8831		PN8817
