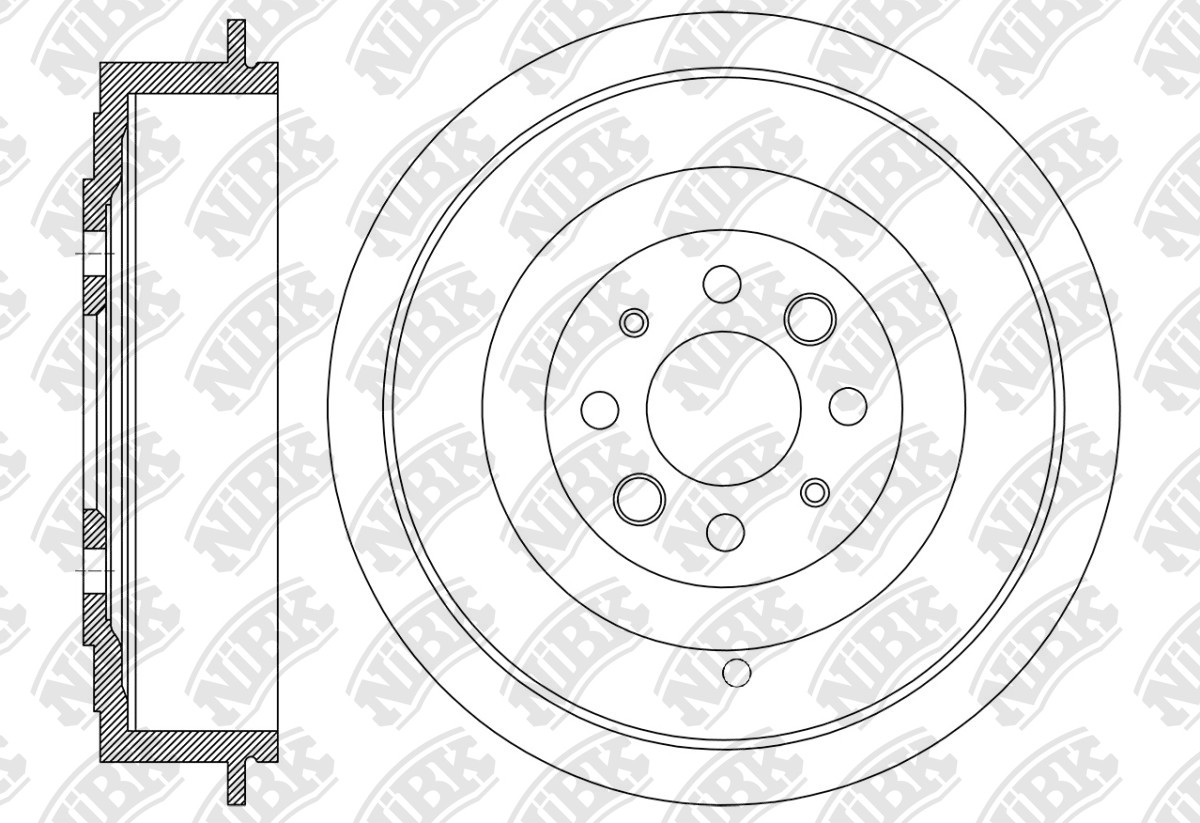

DRUM BRAKE » DN1564

Specification

Outter Ø
249.5
Num. of holes
4
Hole Ø
14.3
Centering Diameter
60
Height
61
Pitch Circle Ø
100
Drum Ø
203
Structure Material
G3000

Cross Reference

FIAT
51827488
FIAT
51840909
FIAT
55701379
FIAT
55703042
FIAT
55704049
FIAT
55704050
GM
13423797
GM
55701379
OPEL
05 68 004
OPEL
05 68 269
OPEL
13423797
OPEL
55701379
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.05~01.10 1200 199 RN1592V PN0211W DN1564 FN0624
10.09~ 1200 199 A4 199 DN1564
07.14~ 1000 B10XFL 3DR HB RN1592V PN34004 DN1563DN1564 FN0682FN0624
07.14~ 1200 A12XEL 3DR HB RN1592V PN34004 DN1563DN1564 FN0682FN0624
07.14~ 1200 B12XEL 3DR HB RN1592V PN34004 DN1563DN1564 FN0624FN0682
07.14~ 1400 A14XEL 3DR HB RN1592V PN34004 DN1563DN1564 FN0624FN0682
07.14~ 1400 A14XER 3DR HB RN1592V PN34004 DN1564DN1563 FN0682FN0624
07.14~ 1400 B14NET 3DR HB RN1592V PN34004 DN1563DN1564 FN0682FN0624
01.13~03.19 1400 B14XEL 3DR HB RN1592V PN34004PN0211W DN1564DN1563 FN0624FN0682
09.06~09.14 1000 Z10XEP RN1592V PN0211W DN1564DN1563 FN0682PN0481FN0624
05.06~11.14 1200 Z12XEP S07 RN1592V PN0211W DN1564DN1563 FN0682FN0624
09.06~09.14 1300 Z13DT# RN1592V PN0211W DN1563DN1564 FN0624

Exemption from liability: the catalog data is advisory and can be used for reference only
