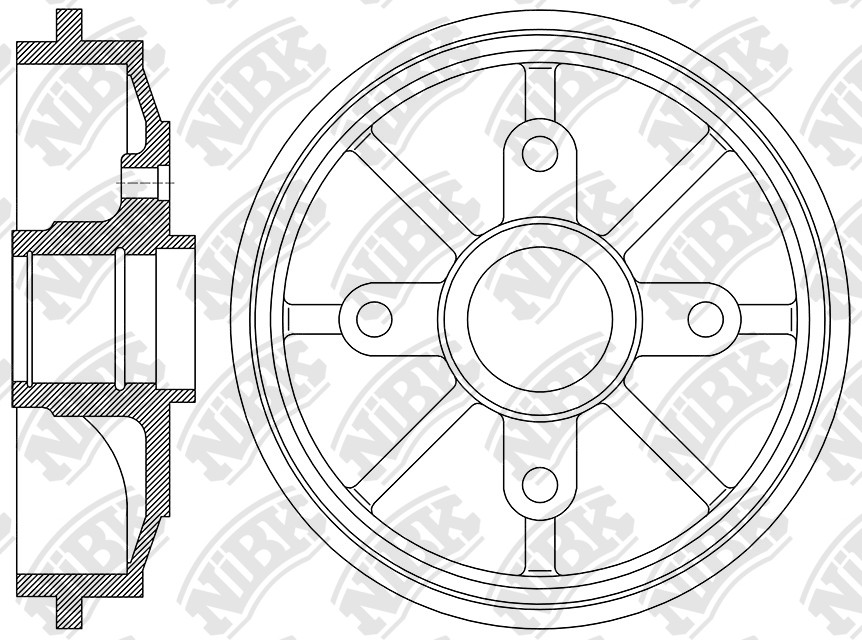

DRUM BRAKE » DN1560

DN1560

Specification

Outter Ø
245
Num. of holes
4
Hole Ø
M12x1.25
Centering Diameter
51.9-55.8
Height
71.4
Pitch Circle Ø
108
Drum Ø
203
Structure Material
G3000
Notes
w/Wheel Bearing, w/o ABS Sensor Ring

Variation

DN1560H[NiBK]

Cross Reference

Peugeot / Citroen
4247 46
Peugeot / Citroen
4247 49
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

CITROEN   »   C3

11.09~09.16 1400 TU3A 5-Hatchback RN1086 PN0207 DN1560
01.02~01.09 1400 TU3JP 5-Hatchback RN1086 PN0207 DN1560

CITROEN   »   C3 Pluriel

04.03~12.10 1400 TU3JP HBKFVC RN1152V PN0206 DN1560

PEUGEOT   »   206

08.98~02.07 1100 TU1JP 2A/C RN1961 PN0201 DN1560DN1559 FN0557FN0834
05.98~09.09 1400 TU3JP 5DR HB RN1961RN1372V PN0201 DN1560DN1559DN1581 FN0557FN0834

PEUGEOT   »   206+

02.09~05.13 1400 DV4C 2L 3DR HB RN1961 PN0201 DN1560 FN0834
02.09~05.13 1400 DV4C 2M 5DR HB RN1372VRN1961 PN0201 DN1581DN1559DN1560 FN0557FN0602FN0834
