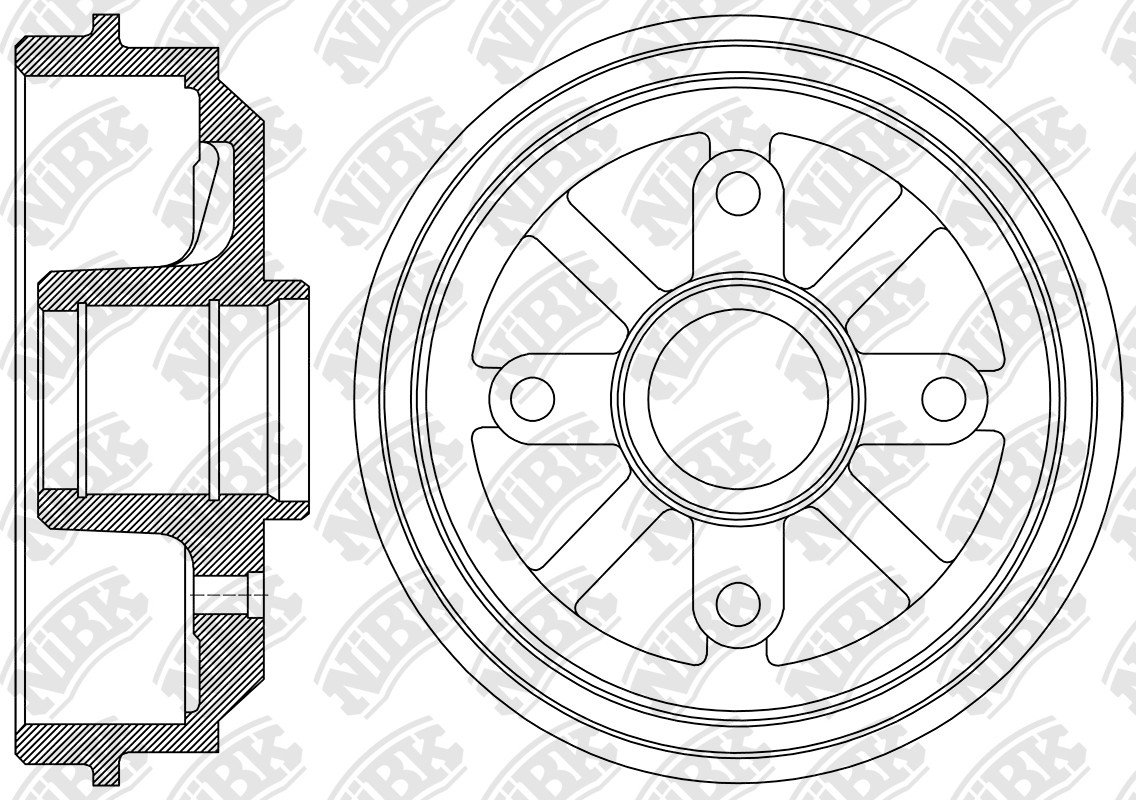

DRUM BRAKE » DN1559

Specification

Outter Ø
212
Num. of holes
4
Hole Ø
M12x1.25
Centering Diameter
51.9-55.9
Height
80
Pitch Circle Ø
108
Drum Ø
180
Structure Material
G3000
Notes
w/o Wheel Bearing

Variation

DN1559H[NiBK]

Cross Reference

Peugeot / Citroen
4247 35
Peugeot / Citroen
4247 44
Peugeot / Citroen
95 659 622
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
08.98~02.07 1100 TU1JP 2A/C RN1961 PN0201 DN1560DN1559 FN0557FN0834
05.98~09.09 1400 TU3A 5DR HB RN1961 PN0201 DN1559 FN0557
05.98~09.09 1400 TU3JP 5DR HB RN1961RN1372V PN0201 DN1581DN1560DN1559 FN0557FN0834
03.89~09.02 1600 TU5JP RN1372V PN0201 DN1559 FN0557
02.09~05.13 1400 DV4C 2M 5DR HB RN1961RN1372V PN0201 DN1581DN1559DN1560 FN0602FN0834FN0557
10.08~08.14 1400 TU3JP 5-Hatchback RN1961 PN0201 DN1559 FN0557

Exemption from liability: the catalog data is advisory and can be used for reference only
