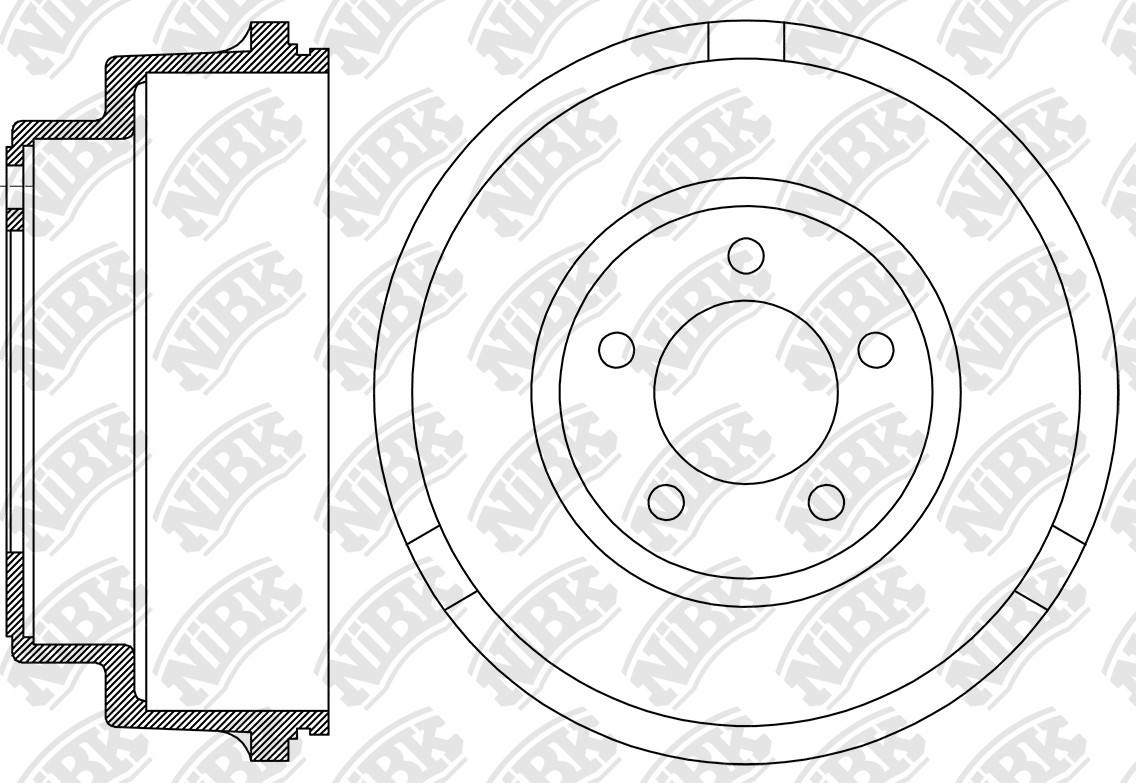

DRUM BRAKE » DN1427

Specification

Outter Ø
370
Num. of holes
5
Centering Diameter
156
Height
161.5
Pitch Circle Ø
203
Drum Ø
320
Structure Material
G3000
Hole Ø
21.5

Cross Reference

ISUZU
8-97034-770-0
ISUZU
8-97034-770-1
ISUZU
8-97034-770-2
ISUZU
8-97034-770-3
ISUZU
8-98248-900-0
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
06.03~01.08 3000 4JH1-TC NKR77 AUS RN1639V PN4464 DN1427 BL1055FN4451 FN4443
01.09~01.10 3000 4JJ1-T NNR85 JPN RN1639V PN4464 DN1427 FN4451BL1055 FN4443
12.06~05.08 3000 4JJ1-TCS NMR85 JPN RN1328V PN4543 DN1427 FN4451BL1055 FN4443
07.09~ 3000 4JJ1-TCS NMR85 RHD RN1639V PN4464 DN1427 FN4451BL1055 FN4443
11.06~ 3000 4JJ1-TCS NMS85A JPN RN1328V PN4543 DN1427 FN4451BL1055 FN4443
05.93~01.98 3600 4BE2 NKR63 JPN DN1111 BL1055 DN1427 BL1055 FN4443
05.93~05.03 4300 4HF1 NKR RN2045V PN4384 DN1427 FN4461BL1055 FN4443
05.90~06.02 4300 4HF1 NKR66 DN1111 FN4458 DN1427 FN4458 FN4443
05.90~06.02 4300 4HF1 NPR66L DN1111 BL1055FN4451PN4489BL1054FN4459PN4464PN4288 DN1427 FN4447BL1055FN4428FN4451FN4459 FN4443
06.04~04.05 4300 4HF1 NPR81 RN1639V PN4464 DN1427 BL1055FN4451 FN4443
05.00~05.03 4600 4HG1 NKR71 RN1328V PN4384 DN1427 BL1055FN0016 FN4443
11.02~ 4600 4HG1 NPR71 DN1111 FN4451BL1055 DN1427 BL1055FN4451 FN4443
10.08~ 4600 4HG1 NPR71 DN1111DN1112 FN4451BL1054FN4459 DN1427 FN4459BL1055FN4451 FN4443
06.04~02.07 4600 4HG1 NPR81 RN1639V PN4464 DN1427 FN4451BL1055 FN4443
05.93~06.98 4800 4HE1 NPR70 DN1112 FN4459BL1054PN4288 DN1427 BL1055FN4459 FN4466
04.02~07.07 4800 4HL1 NKR81__ RN1328V PN4489PN4543 DN1427 BL1055FN4451 FN4443
06.02~02.07 4800 4HL1 NKS81 JPN RN1328V FN4451BL1054PN4384 DN1427 FN4451FN4459BL1055 FN4443
06.02~08.07 4800 4HL1 NPR81 JPN RN1639V PN4464 DN1427 BL1055FN4451 FN4443
10.08~01.11 4600 4HG1 NPR71 RHD DN1111 FN4451 DN1427 BL1055FN4451 FN4443
12.16~ 4800 4HL1TC-N NPR81U ML DN1112DN1111 FN4459FN4451BL1054 DN1427 FN4451FN4459BL1055BL1054 FN4443
01.97~01.12 4300 4HF1 NPR66 DN1111 BL1055 DN1427 BL1055 FN4443

Exemption from liability: the catalog data is advisory and can be used for reference only
