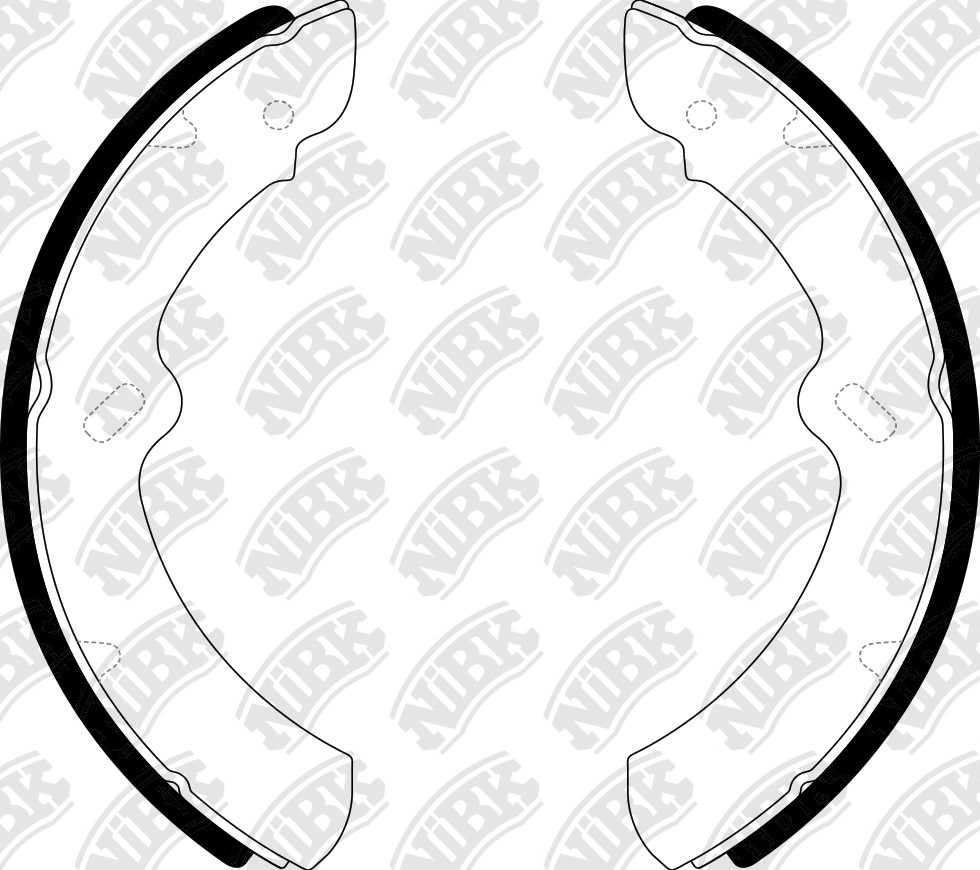

BRAKE SHOE » FN0016

Specification

Pcs In Set
4
Radius
160
Width
75
Thickness
7.5/10.4

Cross Reference

AKEBONO
NR5011
BENDIX AUS
BS1544
DAIHATSU
04494-81310-000
DAIHATSU
04494-87307-000
DAIHATSU
04494-B3010
DAIHATSU
0449487310000
DAIHATSU
0449487315000
DAIHATSU
04496-87307-000
DAIHATSU
04496-87310-000
DAIHATSU
47410-87310-000
ISUZU
8-97010-554-0
KASHIYAMA
K0016
NISSAN
D106M-06D25
TOYOTA
04494-B3010
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
08.87~08.06 2200 4Y V108 FN0016 FN0016
05.99~11.05 2800 DL V58RD DN1445 FN0016 DN1445 FN0016 FN0015
09.84~05.95 3000 B V98 FN0016 FN4428 FN0015
09.84~05.95 3000 B V99 FN0016 FN4428FN0016 FN0015
09.84~08.88 3400 13B V75 FN0016 FN0016 FN0015
09.84~08.88 3400 13B V76 FN0016 FN0016 FN0015
09.84~08.88 3400 13B V78 FN0016 FN0016 FN0015
09.84~08.88 3400 13B V79 FN0016 FN0016 FN0015
08.88~05.95 3700 14B V115 FN0016 FN4428 FN0015
08.88~05.95 3700 14B V116 JPN FN0016 DN1445 FN0016 FN0039FN0015
12.05~ 3700 14B V116LHU DN1428 FN0016 DN1428 FN0016 FN0015FN0039
08.88~05.95 3700 14B V118 FN0016 FN0016 FN0015
12.05~ 3700 14B V118L LHD DN1428 FN0016 DN1428 FN0016 FN0015
08.88~05.95 3700 14B V119 FN0016 FN4428FN0016 FN0015
05.00~05.03 4600 4HG1 NKR71 RN1328V PN4384 DN1427 BL1055FN0016 FN4443
04.15~ 3000 ZD30DDTi W41 PN2802 FN0016
09.04~ 4500 TB45E DCW41 PN4464 FN4451BL1055FN0016
09.04~ 4500 TB45E DJW41 PN4464 FN0016FN4451BL1055
09.04~08.07 4900 4M50-T AHW41 PN4464 BL1060FN6653FN0016 FN4443

Exemption from liability: the catalog data is advisory and can be used for reference only
