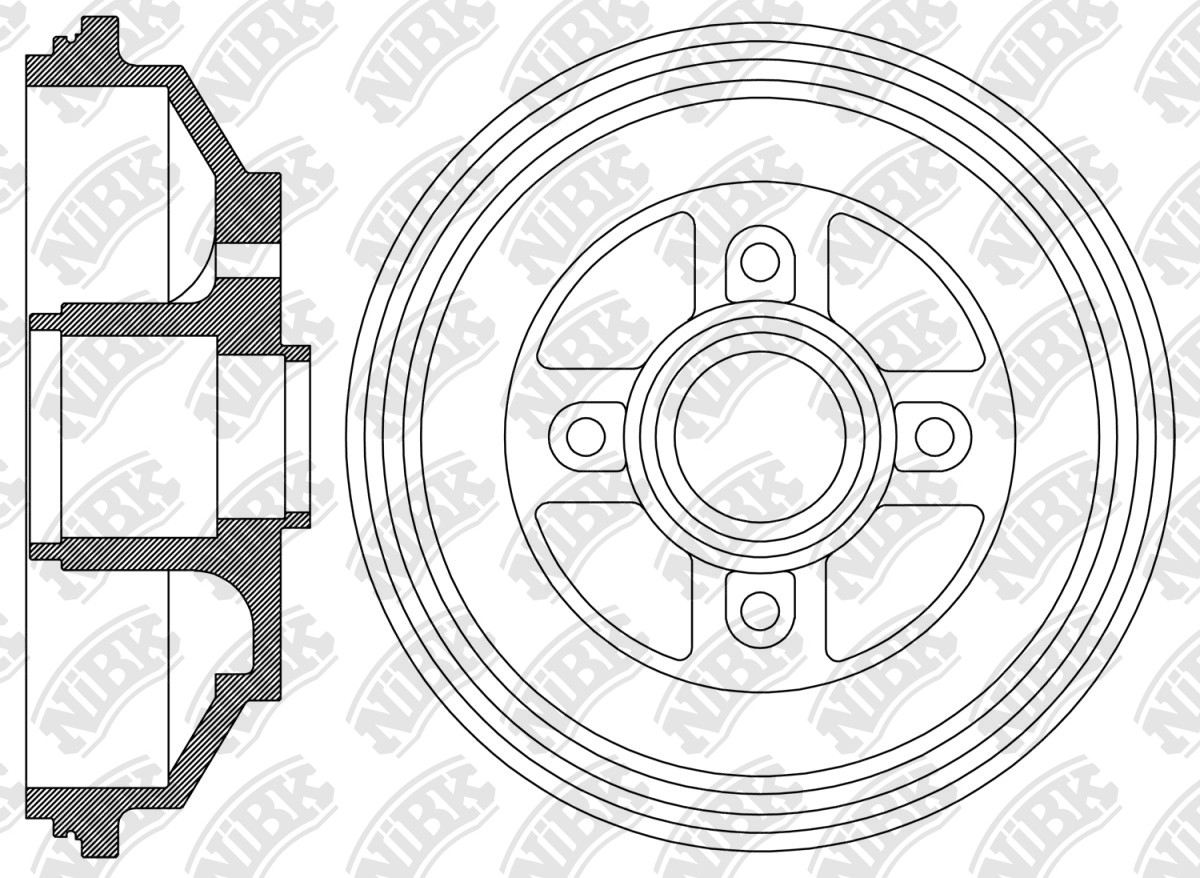

DRUM BRAKE » DN1367

DN1367

Specification

Outter Ø
238
Num. of holes
4
Hole Ø
12
Centering Diameter
54-58.1
Height
81.5
Pitch Circle Ø
100
Drum Ø
200
Structure Material
G3000

Variation

DN1367H[NiBK]

Cross Reference

GM
93193100
GM
95513699
OPEL
47 00 448
OPEL
47 08 277
SUZUKI
43511-62J00
SUZUKI
43511-62J00-000
SUZUKI
43511-62J10
SUZUKI
43511-62J10-000
SUZUKI
43511-62J11
SUZUKI
43511-62J11-000
VAUXHALL
93193100
VAUXHALL
95513699
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

OPEL   »   Agila (B)

05.07~12.14 1000 K10B RN1525V PN9805 DN1367 FN2386
03.10~12.14 1200 K12B RN1525V PN9805 DN1367 FN2386

OPEL (Vauxhall)   »   Agila

03.10~12.14 1200 K12B 9HL68 PN9805 DN1367 FN2386

SUZUKI   »   Splash

10.08~02.11 1000 K10B A5B310 RN1525V PN9805 DN1367 FN2386
02.11~06.12 1000 K10B XB22S LHD RN1525V PN9805 DN1367 FN2386
10.08~07.12 1200 K12B XB32S RN1525V PN9805 DN1367 FN2386
10.08~04.11 1300 D13A A5B413D RN1525V PN9805 DN1367 FN2386
