NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1473

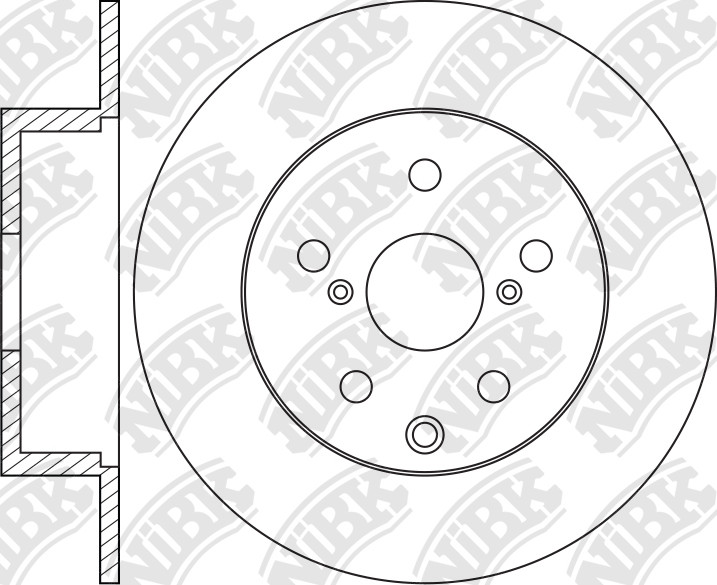

ROTOR DISC » RN1473

Specification

Type

Solid

Disc Thickness (Max)

10

Num. of holes

5

Height

62

Centering Diameter

62

Front/Rear

Rear

Pitch Circle Ø

114.3

Outter Ø

309

Drum Ø:

209

Disc Thickness (Min)

8.5

Structure Material

G3000

Cross Reference

TOYOTA

42431-0E020

TOYOTA

42431-48070

TOYOTA

424310E050

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

LEXUS » RX270

08.10~09.15	2700	1AR-FE	AGL10	RN1443V	PN1845	RN1473	PN1846	FN0651
08.10~09.15	2700	1AR-FE	AGL10W JPN	RN1443V	PN1845	RN1473	PN1846	FN0651

LEXUS » RX350

12.08~10.18	3500	2GR-FE	GGL10	RN1443V	PN1845	RN1473	PN1846	FN0651
12.08~10.15	3500	2GR-FE	GGL15	RN1443V	PN1845	RN1473 RN21002V	PN1846	FN0651

LEXUS » RX450H

03.09~10.15

3500

2GR-FXE

GYL15

RN1578V RN1443V

PN1845

RN21002V RN1473

PN1846

FN0651

TOYOTA » Highlander

11.16~	2000	8ARFTS	ASU50	RN1443V	PN1845	RN1473	PN1846	FN0651
12.13~10.16	2700	1AR-FE	ASU50	RN1443V	PN1845	RN1473	PN1846	FN0651
12.13~11.16	3500	2GR-FE	GSU55R	RN1443V	PN1845	RN1473	PN1846	FN0651
11.16~11.19	3500	2GR-FKS	GSU50L	RN1443V	PN1845	RN1473	PN1846	FN0651
11.16~11.19	3500	2GR-FKS	GSU50R	RN1443V	PN1845	RN1473	PN1846	FN0651
11.16~12.19	3500	2GR-FKS	GSU55L	RN1443V	PN1845	RN1473	PN1846	FN0651

TOYOTA » Kluger

12.13~11.16

3500

2GR-FE

GSU50R

RN1443V

PN1845

RN1473

PN1846

FN0651

TOYOTA » Sienna

08.11~08.13	2700	1AR-FE	ASL30	RN1443V	PN1845	RN1473	PN1846	FN0651
01.10~09.20	3500	2GR-FE	GSL30L	RN1443V	PN1845	RN1473	PN1846	FN0651
01.10~09.20	3500	2GR-FE	GSL35	RN1443V	PN1845	RN1473	PN1846	FN0651
