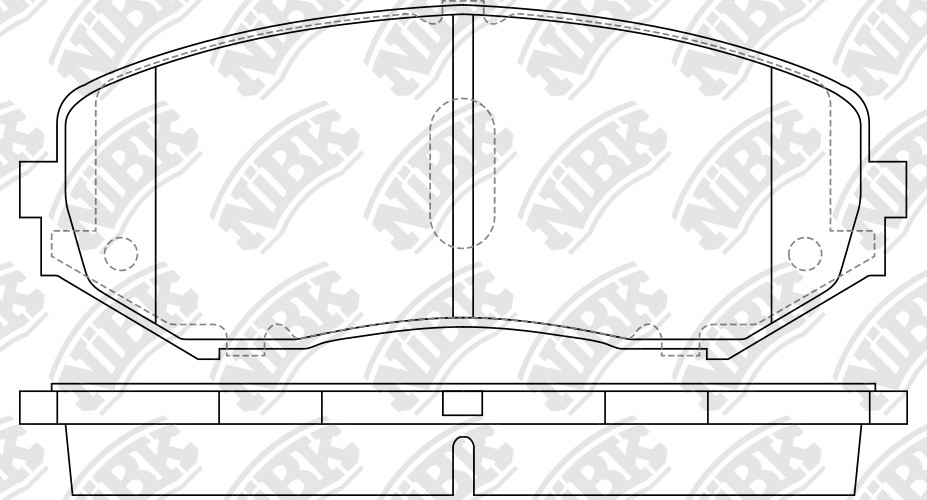

BRAKE PADS » PN9802
Specification
Length-1
138
Width-1
54.7
Thickness-1
17.1
Pcs In Set
4
Brake System
Tokico
Cross Reference
AKEBONO
AN-723K
BENDIX AUS
DB 1842
FMSI
D1188-8307
HITACHI
HF708
HITACHI
NDP433
KASHIYAMA
D9044
KASHIYAMA
D904402
SUZUKI
52200-65J00
SUZUKI
55200-65J00
SUZUKI
55200-65J01
SUZUKI
55200-65J02
SUZUKI
55200-65J03
SUZUKI
55200-65J10
SUZUKI
55200-65J11
SUZUKI
55200-65J21
SUZUKI
55200-65J22
SUZUKI
55200-65J23
SUZUKI
55200-65J24
SUZUKI
55200-65J25
SUZUKI
55200-65J26
SUZUKI
55200-65J30
SUZUKI
55200-65J31
SUZUKI
55200-67D11
WVA
24346
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.06~04.07 | 1600 | M16A | TA74W | RN1371V | PN9802 | FN9970 | ||
| 05.05~06.08 | 2000 | J20A | TD54W | RN1371V | PN9802 | FN9970 | ||
| 06.08~04.17 | 2400 | J24B | TDA4W | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 05.05~ | 2700 | H27A | TD84W | PN9802 | PN2466 | |||
| 05.05~06.08 | 2700 | H27A | TD94W | PN9802 | FN9970 | |||
| 06.08~05.09 | 3200 | N32A | TDB4W | PN9802 | PN2466 |
| 04.05~08.12 | 1600 | M16A | JB416X-1/2 | RN1371V | PN9802 | DN1406 | FN9970 | |
| 08.08~08.12 | 1600 | M16A | JB416X-4/5 | RN1371V | PN9802 | DN1406 | FN9970 | |
| 08.12~07.16 | 1600 | M16A | JB416X-7 | RN1371V | PN9802 | DN1406 | FN9970 | |
| 04.05~08.08 | 1900 | F9Q# | TD44 | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 08.08~07.19 | 2000 | J20A | GR NOMADE | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 09.05~08.08 | 2000 | J20A | JB420W-2 | RN1371V | PN9802 | DN1406 | FN9970 | |
| 08.08~07.12 | 2000 | J20A | JB420W-5 | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 07.12~07.19 | 2000 | J20A | JB420W-8 | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 06.05~07.16 | 2000 | J20A | JTD54V | RN1371V | PN9802 | DN1406 | FN9970 | |
| 01.06~01.14 | 2000 | J20A | JTE54V | RN1371V | PN9802 | DN1406 | FN9970 | |
| 01.05~12.15 | 2000 | J20A | TD54V | RN1371V | PN9802 | DN1406 | FN9970 | |
| 01.10~07.19 | 2400 | J24B | GR NOMADE | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 01.06~07.16 | 2400 | J24B | JB424W RHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 08.08~01.10 | 2400 | J24B | JB424W-4 LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 01.10~08.12 | 2400 | J24B | JB424W-5 LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 08.12~03.14 | 2400 | J24B | JB424W-7 LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 03.14~08.16 | 2400 | J24B | JB424W-8 LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 03.14~08.16 | 2400 | J24B | JB424W-8 LHD 3DR | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 01.09~08.16 | 2400 | J24B | JB424X-6 | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 06.01~09.08 | 2700 | H27A | JTD94V | RN1371V | PN9802 | DN1406 | FN9970 | |
| 03.08~08.12 | 3200 | N32A | TD1D LHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
| 08.08~08.12 | 3200 | N32A | TDB4V RHD | RN1371V | PN9802 | RN1522V | PN2466 | FN0662 |
